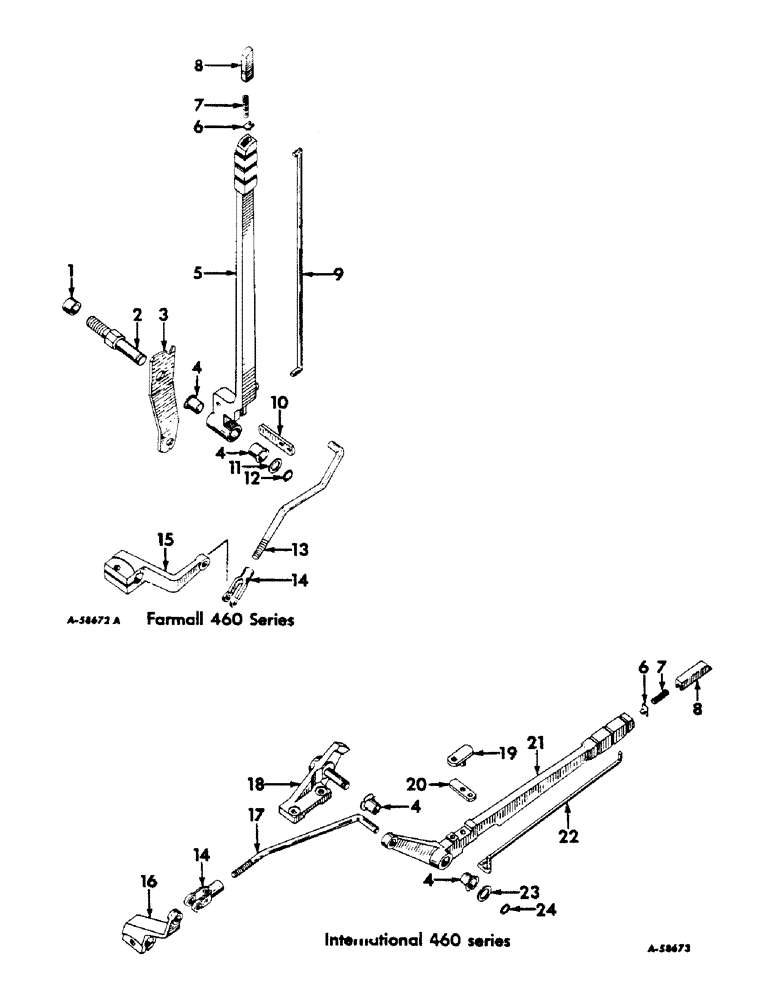

Запчасти Case IH 460 (117) - REAR FRAME & DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, CLUTCH TYPE, LEVER & CONNECTIONS Rear Frame & Driving Mechanisms

1

15048D

SPACER

Control handle pivot shaft (For tractors with standard drawbar) (2 for Unit A)

1шт.

2

373650R1

STUD

SHAFT, control handle pivot (Unit A)

1шт.

3

373683R1

SPARE PART QUADRANT, control handle (Unit A)

1шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

1шт.

4

373445R1

BUSHING,22.25mm ID x 22.99mm L

Control handle

2шт.

5

373647R2

SPARE PART Control (Unit A)

1шт.

6

373447R1

SPARE PART RETAINER, control handle spring

1шт.

7

373448R1

SPRING

Control handle

1шт.

8

373449R1

BUTTON

Control handle

1шт.

9

373648R1

SPARE PART Control handle (Unit A)

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

10

373649R1

BAR

PAWL, control handle (Unit A)

1шт.

PIN, 1/4 x 1-1/2" heavy spirol

1шт.

11

615191R1

WASHER

29/32 x 1-1/4" x 16 ga. (Unit A)

1шт.

12

373522R1

SNAP RING,#87, .668" Dia, E-Type

Retaining, , control handle (Unit A) #87, .668" Dia, E-Type

1шт.

13

373684R1

ROD

Control (Unit A)

1шт.

NUT, 1/2NF jam

1шт.

14

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1/2" adjustable rod end (Control rod)

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

PIN, 1/2" rod end

1шт.

15

373694R2

SPARE PART Cross shaft (Unit A)

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 x 2" hex-hd cap

1шт.

16

373694R2

SPARE PART Cross shaft (Unit B)

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 x 2" hex-hd. cap

1шт.

17

373693R1

SPARE PART Control (Unit B)

1шт.

NUT, 1/2NF jam

1шт.

18

373689R31

SPARE PART ASSEMBLY, pivot shaft (Unit B)

1шт.

SPACER, pivot shaft bracket

2шт.

SCREW, 1/2 x 1-3/4" hex-hd. cap

2шт.

19

370361R11

SPARE PART PIVOT ASSEMBLY, control handle pawl (Unit B)

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

20

373688R1

SPARE PART PAWL, control handle (Unit B)

1шт.

21

311368R1

SPARE PART Control (Unit B)

1шт.

22

373687R1

SPARE PART Control handle (Unit B)

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 9/32 x 5/8" x .065 ga.

1шт.

23

551658R1

WASHER

25/32 x 1-1/4" x 22 ga. (Unit B)

1шт.

24

373692R1

RING

Control handle snap (Unit B)

1шт.
