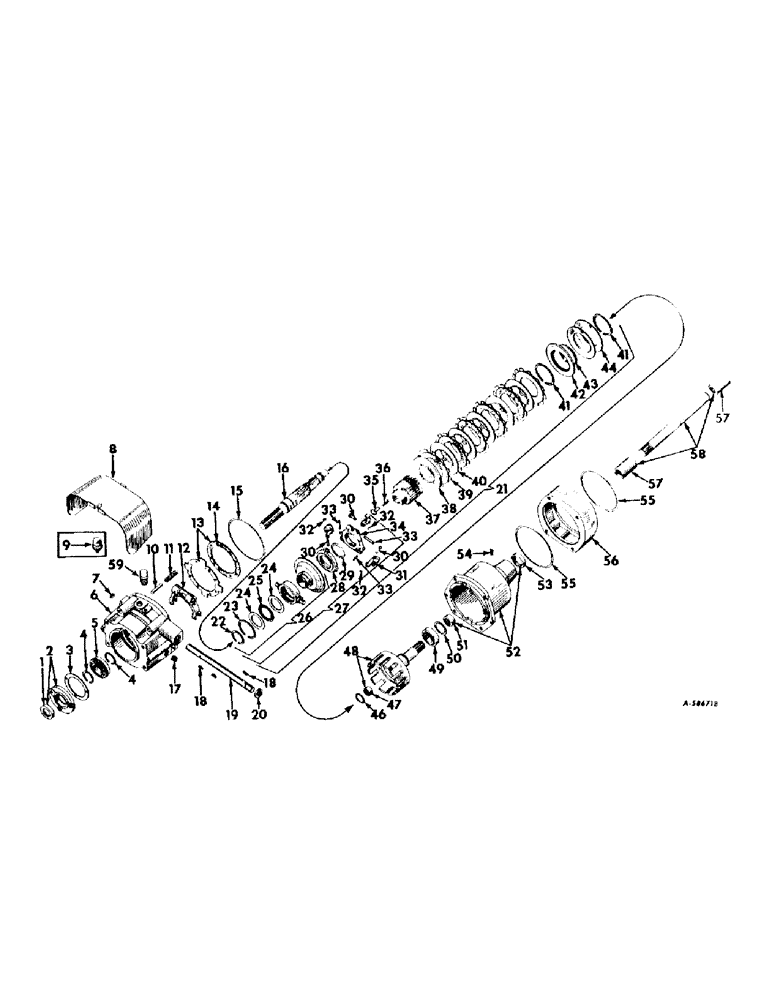

Запчасти Case IH 460 (116) - REAR FRAME & DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, CLUTCH TYPE, REAR UNIT, CONTINUED Rear Frame & Driving Mechanisms

a

373702R92

ATTACHMENT, Independent Power Take-Off (540 R.P.M. - Clutch Type) (For tractors equipped with Independent Power Take-Off Drive or Torque Amplifier) (Farmall 460 Series)

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

373704R92

ATTACHMENT, Independent Power Take-Off (540 R.P.M. - Clutch Type) (For tractors equipped with Independent Power Take-Off Drive or Torque Amplifier) (International 460 Series)

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

425-1012

NUT,3/4"-10, G5

2шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fixed Drawbar

1шт.

66426D

SPARE PART PLATE

1шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fixed Drawbar

1шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW

2шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fixed Drawbar

1шт.

103326

LOCK WASHER,3/4"

3/4"

1шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fixed Drawbar

1шт.

425-1012

NUT,3/4"-10, G5

2шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fast-Hitch

1шт.

363445R1

SPARE PART

1шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fast-Hitch

1шт.

Farmall 460 Series and International 460 Series Hi-Utility Tractors

1шт.

364013R2

SPARE PART

1шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fast-Hitch

1шт.

International 460 Series except Hi-Utility.

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW

2шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fast-Hitch

1шт.

103326

LOCK WASHER,3/4"

3/4"

2шт.

This part (Illustrated with the respective drawbar with which it is used) is required to provide a standardized power take-off hitch and must be ordered separately.

1шт.

For Tractors equipped with - Fast-Hitch

1шт.

1

364472R91

SEAL

OIL, output shaft

1шт.

2

373556R11

SPARE PART RETAINER ASSEMBLY, output shaft bearing

1шт.

SCREW, 5/16 x 7/8" hex-hd cap

3шт.

4

359894R1

RING, SNAP

RING SNAP Output shaft bearing snap

2шт.

3

373557R1

GASKET

Output shaft bearing retainer

1шт.

5

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

Output shaft

1шт.

373548R1

COVER (NSS)

1шт.

6

373548R21

SPARE PART ASSEMBLY, housing (Composed of -

1шт.

373946R91

PACKING RING

OIL SEAL

1шт.

141231

WASHER

SPARE PART PIN

4шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9410364

PLUG

1шт.

103878

PLUG

1шт.

362356R3

SPARE PART

1шт.

373553R1

PLUG,Cup, 7/8"

1шт.

PLUG, 1/4" sq-hd. stl. pipe

1шт.

SCREW, 5/16 x 7/8" hex-hd. cap

2шт.

SCREW, 1/2 x 7-1/4" hex-hd. cap

4шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Housing cover plug

1шт.

9410364

PLUG

Housing cover

1шт.

7

363553R1

PLUG, housing cover

1шт.

8

364712R12

SHIELD

ASSEMBLY, safety

1шт.

364713R1

AXLE PIN

BOLT, safety shield

3шт.

9

60836H

BREATHER

Housing (Order Bushing, 112877 and Plug, 110891H)

1шт.

10

141231

WASHER

SPARE PART PIN, 5/16 x 2" dowel

4шт.

11

373560R1

SPRING

Brake plate

4шт.

12

373561R2

FORK

Clutch

1шт.

13

363545R11

SPARE PART PLATE ASSEMBLY, anti-creep brake

1шт.

14

373559R1

FACING

Anti-creep brake

1шт.

RIVET, 9/64 x 3/8" ov-hd tubular

8шт.

15

300328R1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

Housing cover (8 x 8-1/4 x 1/8")

1шт.

16

373546R1

SHAFT

Output

1шт.

17

362356R3

SPARE PART Housing cover

1шт.

18

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

No. A Woodruff, aly-stl (1/4 x 7/8") (Used only with Shaft, 373562R1)

3шт.

18

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

(Used only with Shaft, 373562R2) #15, 1/4" x 1", HT

3шт.

19

373562R2

SHAFT

Clutch fork cross (For service replacement of Shaft, 373562R1, also order two Keys, 124553)

1шт.

443246

GROOVED PIN,3/16" x 3/4", Type D

3/16" x 3/4", Type D

1шт.

20

373946R91

PACKING RING

OIL SEAL, clutch fork cross shaft

1шт.

21

373564R91

SPARE PART ASSEMBLY, rear unit (Unit A)

1шт.

21

376824R91

SPARE PART ASSEMBLY, rear unit (Unit B)

1шт.

22

374046R1

RING

External snap

1шт.

23

374044R1

RING

Internal snap

1шт.

24

374041R1

RACE

RACE, needle bearing

2шт.

25

374011R91

THRUST BEARING

Needle thrust

1шт.

26

374038R92

BEARING ASSY,1.848" ID x 1.5626"

ASSEMBLY, release sleeve bearing

1шт.

27

374037R92

SPARE PART RELEASE SLEEVE AND SPIDER ASSEMBLY

1шт.

28

374039R1

RING

ACTUATOR, mechanism linkage

1шт.

29

374049R1

RING

Mechanism linkage actuator snap

1шт.

30

374048R1

PIN

Actuating lever

3шт.

31

374040R91

LEVER

ASSEMBLY, actuating (Set of three)

1шт.

32

255529R1

SCRAPER RING

Actuating lever pin retaining

3шт.

WASHER, 1/4 x 1/2 x .049 ga

3шт.

33

374051R1

PIN

Knurled spider

3шт.

34

374050R2

SPIDER ASSY.

Adjustment

1шт.

35

374036R2

PIN

Lock

1шт.

36

374035R1

SPRING

Lock

1шт.

37

374027R2

SPARE PART Clutch

1шт.

38

374034R1

DISC

PLATE, pressure

1шт.

39

376825R91

DISC

ASSEMBLY, outer

6шт.

40

374033R1

DISC

Clutch inner

5шт.

41

374028R1

RING

External snap

2шт.

42

374029R1

LARGE PLATE

PLATE, LARGE Pressure

1шт.

43

374030R1

RING

Pressure plate snap

1шт.

44

374043R1

WASHER

Belleville spring (2 for Unit A)

1шт.

44

374031R1

SPARE PART Belleville spring (2 for Unit B)

1шт.

46

373558R1

RING

Clutch retainer snap

1шт.

47

373750R91

BEARING

Output shaft roller

1шт.

48

373547R11

SPARE PART ASSEMBLY, input

1шт.

49

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BALL, input shaft

1шт.

50

359894R1

RING, SNAP

RING SNAP Input shaft bearing snap

1шт.

51

220304R91

NEEDLE BEARING

Input shaft roller

1шт.

52

373549R21

SPARE PART ASSEMBLY, independent power take-off

1шт.

53

364472R91

SEAL

OIL, input shaft

1шт.

54

373554R1

HEX SOC SCREW,1/4" - 20 x 5/8"

Independent power take-off housing

2шт.

55

300328R1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

Independent power take-off adapter (8 x 8-1/4 x 1/8")

2шт.

56

360742R2

SPARE PART Independent power take-off

1шт.

57

360168R1

COUPLING,12T

Shaft

2шт.

58

360167R11

SPARE PART ASSEMBLY, coupling

1шт.

59

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

PLUG, vent

1шт.

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 x 1/8" reducing pipe

1шт.

378268R1

TOOL

Clutch adjusting

1шт.
