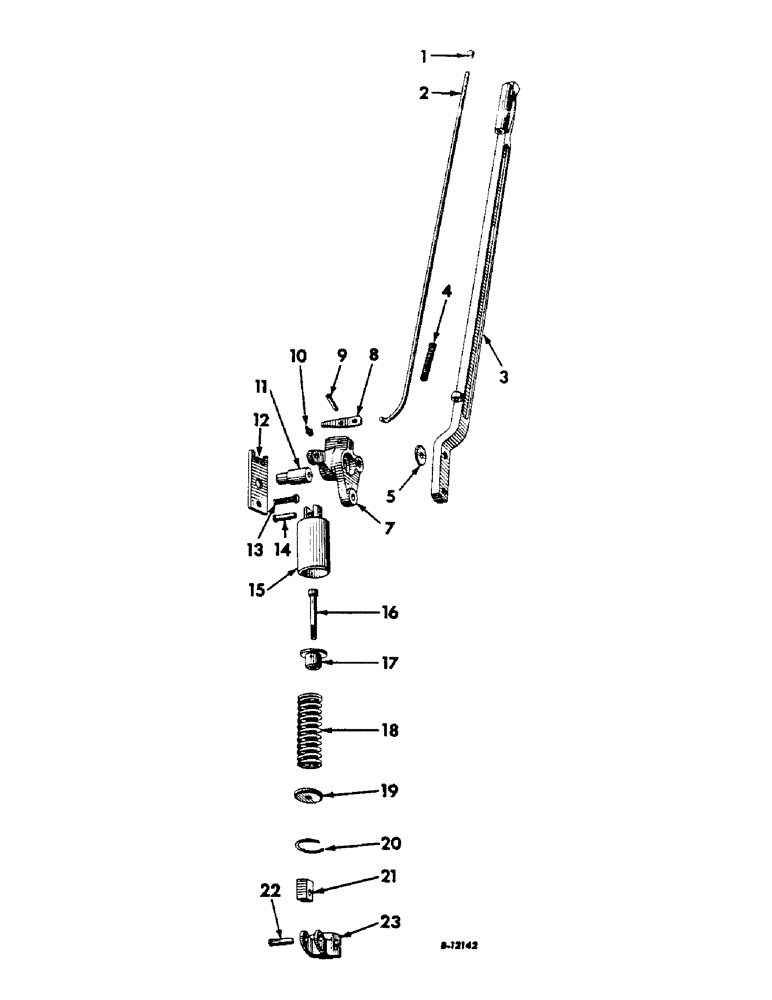

Запчасти Case IH 460 (114) - REAR FRAME & DRIVING MECHANISMS, INDEPENDENT POWER TAKE-OFF, LEVERS & CONNECTIONS, FOR UNIT A Rear Frame & Driving Mechanisms

1

359108R2

KNOB

Pawl operating rod

1шт.

PIN, 1/16 x 1/2" roll (Used on attach knob with hole)

1шт.

2

362186R3

SPARE PART Pawl operating

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

131402H

WASHER

11/32 x 9/16" x No. 16 ga.

2шт.

3

362188R21

SPARE PART Operating

1шт.

SCREW, 9/16 x 1-3/4" hex-hd. cap

2шт.

WASHER, 9/16" lock

1шт.

4

359109R2

VALVE SPRING

Pawl operating rod

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

Wear, operating handle shaft

1шт.

SCREW, 3/8 x 3-1/2" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

7

360176R2

SPARE PART HUB, operating handle

1шт.

8

359112R1

PAWL

Operating handle

1шт.

9

359111R2

SPARE PART Operating handle pawl

1шт.

148147

COTTER PIN,Hairpin, 3/16"

SPRING, 3/16" retainer

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Operating handle shaft) (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

10

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Operating handle shaft) (Optional with 109461)

1шт.

11

360152R1

SPARE PART SHAFT, operating handle

1шт.

12

360178R3

SECTOR

QUADRANT, operating handle

1шт.

13

359114R1

SPARE PART Operating handle quadrant

1шт.

WASHER, 1/2" lock

1шт.

14

359100R1

SPARE PART Spring sleeve

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

15

359091R11

SPARE PART ASSEMBLY, spring

1шт.

16

359092R1

BOLT

Spring anchor

1шт.

17

359093R11

SPARE PART W/PIN ASSEMBLY, spring retainer

1шт.

PIN, 1/8 x 5/16" roll

1шт.

18

373357R1

SPARE PART Brake band actuator

1шт.

19

359095R1

SPARE PART Spring retainer

1шт.

20

359096R1

SPARE PART Spring sleeve snap

1шт.

21

359097R1

SPARE PART Bottom spring anchor

1шт.

22

359100R1

SPARE PART Primary brake band operating lever

1шт.

PIN, 3/32 x 3/4" cotter

1шт.

23

359099R1

SPARE PART Primary brake band operating

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 NF x 2" hex-hd. cap

1шт.

WASHER, 7/16" lock

1шт.
