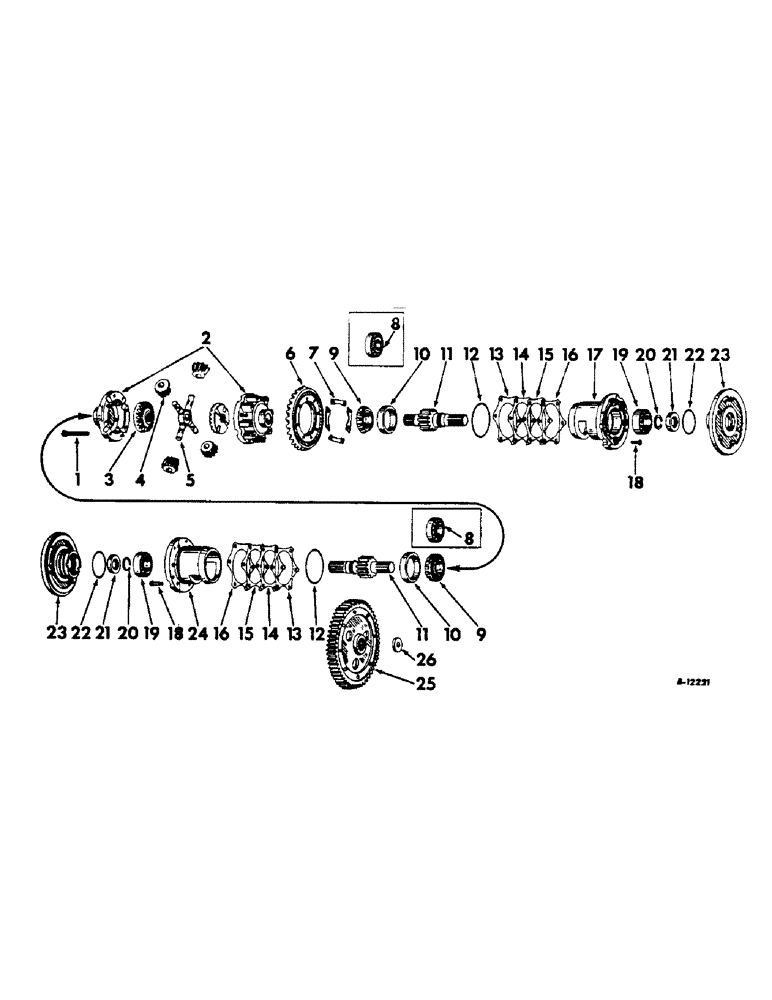

Запчасти Case IH 460 (106) - REAR FRAME & DRIVING MECHANISMS, DIFFERENTIAL Rear Frame & Driving Mechanisms

1

48471D

BOLT (SPREADER),7/16" - 20 x 4"

Differential case

8шт.

NUT, 7/16NF

8шт.

2

358054R41

SPARE PART Differential (2 halves) Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422

1шт.

2

374388R92

SPARE PART Differential (2 halves) Farmall 460 Series 11677 up, International 460 Series 5423 up

1шт.

For service replacement of CASE ASSEMBLY, 374388R91 also order CAGE ASSEMBLIES, 374394R21 and 374395R21.

1шт.

3

360962R2

GEAR

Differential bevel (28 teeth)

2шт.

4

360961R1

GEAR

PINION, differential bevel (15 teeth)

4шт.

5

20731DA

SPIDER, differential

1шт.

6

368397R1

SPARE PART Bevel drive (50 teeth) (International 460 Series)

1шт.

6

362570R1

WHEEL

GEAR, bevel drive (49 teeth) (Farmall 460 Series - International 460 Series Hi-Utility)

1шт.

7

43699D

STRIP

PLATE, differential case bolt lock

4шт.

8

ST218A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BALL, differential (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

2шт.

9

131475R91

TAPERED BEARING,2.075" ID x 4.4375" OD

CONE, differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)

2шт.

10

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

Differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)

2шт.

11

368398R2

SPARE PART Bull pinion and brake (20 degree pressure angle teeth) Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422

2шт.

11

374391R1

SPARE PART Bull pinion and brake (Order Package, 374581R91) Farmall 460 Series 11677 to 12824, International 460 Series, Serial Range: 5423-5645

2шт.

11

374577R2

SHAFT

Bull pinion and brake (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 up

2шт.

12

4222D

SEAL

O-RING, bull pinion shaft bearing cage (5-1/16 x 5-17/32 x 15/64")

2шт.

13

376541R1

SHIM

Bull pinion shaft bearing cage, extra light (.004")

1шт.

14

47847D

SHIM, bull pinion shaft bearing cage, light (.007")

1шт.

15

47848D

SHIM, bull pinion shaft bearing cage, medium (.015")

2шт.

16

47849D

SHIM

SPARE PART Bull pinion shaft bearing cage, heavy (.030")

2шт.

17

368400R1

SPARE PART w/O-Ring, 4222D Assembly, RH bull pinion shaft bearing (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

1шт.

17

374395R2

SPARE PART W/CUP, ST981 Assembly, RH, bull pinion shaft bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)

1шт.

17

377315R1

SPARE PART RH bull pinion shaft bearing (International 460 Series Grove Tractors)

1шт.

18

357034R1

BOLT

Bull pinion shaft bearing cage

12шт.

19

ST279

BALL BEARING

BALL, bull pinion and brake shaft (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

2шт.

19

279454R91

BEARING ASSY,2.3622" ID x 4.3275" OD x 0.8661"

BALL, bull pinion and brake shaft (Farmall 460 Series 11677 up)

2шт.

19

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BALL, bull pinion and brake shaft (International 460 Series 5423 up)

2шт.

20

358059R1

SNAP RING

Bull pinion and brake shaft snap (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

2шт.

20

357194R1

RING

Bull pinion and brake shaft snap (Farmall 460 Series 11677 up, International 460 Series 5423 up)

2шт.

21

20290D

OIL SEAL

OIL , bull pinion shaft

2шт.

22

358101R1

O-RING,0.551" ID x 0.07" Width

O-RING, bull pinion shaft bearing retainer (3-23/32 x 4-5/32 x 7/32") Farmall 460 Series 501 to 11676, International 460 Series 501 to 5422

2шт.

22

254690R1

OIL SEAL

O-RING, bull pinion shaft bearing retainer (4-1/8 x 4-1/2 x 3/16") Farmall 460 Series 11677 up, International 460 Series 5423 up

2шт.

23

368401R11

SPARE PART W/OIL SEAL, 20290D and O-Ring, 358101R1 Assembly, bull pinion shaft bearing (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

2шт.

23

374396R11

SPARE PART W/OIL SEAL, 20290D Assembly, bull pinion shaft bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)

2шт.

24

368399R1

SPARE PART LH bull pinion shaft bearing (Farmall 460 Series 501 to 11676, International 460 Series, Serial Range: 501-5422)

1шт.

24

374394R2

SPARE PART LH bull pinion shaft bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)

1шт.

24

377314R1

SPARE PART LH bull pinion shaft bearing (International 460 Series Grove Tractors)

1шт.

25

360537R94

SPARE PART BULL GEAR AND HUB ASSEMBLY (20 degree pressure angle teeth) Farmall 460 Series 501 to 12824, International 460 Series, Serial Range: 501-5645

2шт.

25

374575R91

HUB

BULL GEAR AND HUB ASSEMBLY (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 up

2шт.

26

49673DA

SPARE PART WASHER, bull gear retainer

2шт.

SCREW, 3/4NF x 1-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

374796R91

SPARE PART Final drive field improvement (For International 460 Series Tractors) (Consists of -

1шт.

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BALL

2шт.

374575R91

HUB

BULL GEAR AND HUB

2шт.

374394R2

SPARE PART

1шт.

374395R2

SPARE PART

1шт.

374388R92

SPARE PART

1шт.

131475R91

TAPERED BEARING,2.075" ID x 4.4375" OD

CONE

2шт.

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

2шт.

360962R2

GEAR

2шт.

4222D

SEAL

O-RING

2шт.

254690R1

OIL SEAL

O-RING

2шт.

375355R1

O-RING,0.869" ID x 0.66" Width

O-RING

1шт.

360961R1

GEAR

PINION

4шт.

43699D

STRIP

PLATE

4шт.

374396R11

SPARE PART

2шт.

357194R1

RING

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

374577R1

SHAFT

2шт.

355889R3

SHIELD

1шт.

47847D

SHIM

4шт.

47848D

SHIM

4шт.

47849D

SHIM

SPARE PART

4шт.

376541R1

SHIM

4шт.

20731DA

SPIDER

1шт.

375563R11

SPARE PART

1шт.

375258R91

PACKAGE

Final drive field improvement (For Farmall 460 Series except Hi-Clear Tractors) (Consists of - same as 374796R91 except - deduct

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

375563R11

SPARE PART

1шт.

375214R91

BEARING

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

370432R21

SPARE PART

1шт.

374432R91

SPARE PART Final drive field improvement (For all Farmall 460 Series Hi-Clear Tractors) (Consists of -

1шт.

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BALL

2шт.

374575R91

HUB

BULL GEAR AND HUB

2шт.

374394R2

SPARE PART

1шт.

374395R2

SPARE PART

1шт.

374388R92

SPARE PART

1шт.

131475R91

TAPERED BEARING,2.075" ID x 4.4375" OD

CONE

2шт.

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

2шт.

360962R2

GEAR

2шт.

375355R1

O-RING,0.869" ID x 0.66" Width

1шт.

4222D

SEAL

O-RING

2шт.

254690R1

OIL SEAL

O-RING

2шт.

360961R1

GEAR

PINION

4шт.

43699D

STRIP

PLATE

4шт.

358047R1

CAP

PLUG

2шт.

374396R11

SPARE PART

2шт.

357194R1

RING

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

374733R1

SPARE PART

2шт.

355889R3

SHIELD

1шт.

47847D

SHIM

4шт.

47848D

SHIM

4шт.

47849D

SHIM

SPARE PART

4шт.

376541R1

SHIM

4шт.

20731DA

SPIDER

1шт.

370432R21

SPARE PART

1шт.

374581R91

PACKAGE,SERVICE

Bull gear, bull pinion and brake shaft (Consists of Bull Gear, 374575R91 and Shaft, 374577R1) (Will work for 374391R1) (For all tractors except Farmall 460 Series Hi-Clear) Farmall 460 Series 11677 to 12824, International 460 Series, Serial Range: 5423-5645

1шт.
