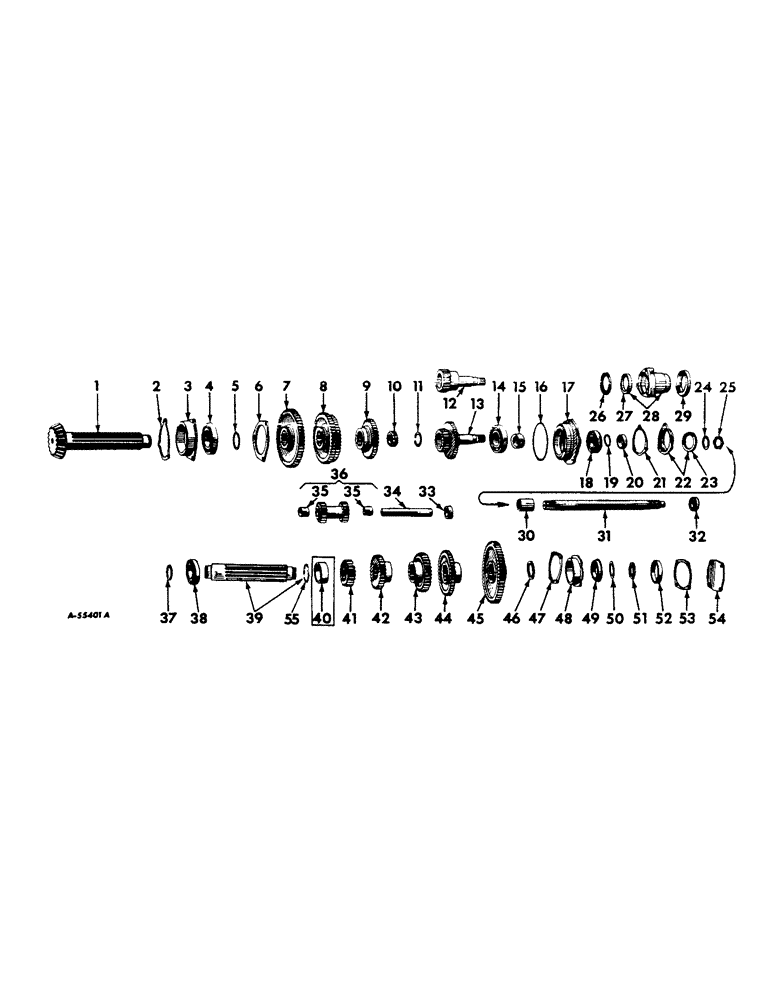

Запчасти Case IH 460 (105) - REAR FRAME & DRIVING MECHANISMS, TRANSMISSION Rear Frame & Driving Mechanisms

1

362569R2

SPARE PART Transmission main (15 teeth) (Farmall 460 Series and International 460 Series Hi-Utility Tractors)

1шт.

1

368434R1

SPARE PART Transmission main (18 teeth) (International 460 Series)

1шт.

2

363751R1

SHIM

Transmission main shaft bearing cage, extra light (.003")

1шт.

2

360569R1

SHIM

Transmission main shaft bearing cage, light (.007")

1шт.

2

360570R1

SHIM

Transmission main shaft bearing cage, medium (.015")

1шт.

2

360571R1

SHIM

Transmission main shaft bearing cage, heavy (.030")

1шт.

3

360568R1

SPARE PART Transmission main shaft rear bearing

1шт.

4

279454R91

BEARING ASSY,2.3622" ID x 4.3275" OD x 0.8661"

BALL, transmission main shaft, rear

1шт.

5

357194R1

RING

Transmission main shaft rear bearing snap

1шт.

6

360572R1

SPARE PART Transmission main shaft rear bearing

1шт.

SCREW, 7/16 x 1-1/4" hex-hd. cap

3шт.

7

368888R1

GEAR

First and reverse speed sliding (59 teeth) (International 460 Series)

1шт.

Not used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

7

360573R1

GEAR

First and reverse speed sliding (55 teeth) (Farmall 460 Series)

1шт.

Also used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

8

360564R1

GEAR

Second and third speed sliding (47 and 41 teeth)

1шт.

8

374289R1

GEAR

Second and third speed sliding (47 and 43 teeth)

1шт.

For tractors equipped with third speed heavy tillage gear.

1шт.

A complete third speed heavy tillage gear field attachment can be obtained by ordering DRIVING GEAR, 374288R1 and SLIDING GEAR, 374289R1 from parts stock.

1шт.

9

368889R2

GEAR

Fourth and fifth speed sliding (34 and 20 teeth)

1шт.

10

53323DA

BEARING ASSY,30mm ID x 54.04mm OD x 24.9mm W

ROLLER, transmission main shaft pilot

1шт.

11

370504R1

RING

Main shaft front bearing snap

1шт.

12

361674R1

GEAR

SHAFT, transmission driving (20 teeth) (International 460 Series)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

13

360492R1

GEAR

SHAFT, transmission driving (20 and 35 teeth) (Farmall 460 Series)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

14

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BALL, transmission driving shaft (International 460 Series)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

15

360493R1

BUSHING

SPACER, drive(International 460 Series)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

16

360497R1

RING

O-RING, drive shaft bearing cage

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

17

360496R1

CAGE

Transmission drive shaft bearing

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

SCREW, 3/8 x 1-1/2" hex-hd cap

4шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

18

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

Transmission drive shaft, front)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

19

360494R1

RING

O-RING, transmission drive shaft spacer

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

20

360495R1

SPARE PART SPACER, transmission drive shaft

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

20

360740R1

BUSHING

SPACER, transmission drive shaft (For tractors equipped with Independent Power Take-Off Drive)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

21

360498R1

GASKET

Transmission drive shaft front bearing retainer

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

22

360499R11

RETAINER

ASSEMBLY, transmission driving shaft front bearing

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

SCREW, 3/8 x 7/8" hex-hd. cap

3шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

WASHER, 3/8" lock

3шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

23

49177D

SEAL

OIL, transmission drive shaft

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

24

358875R1

WASHER

Drive shaft nut

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

25

358876R1

LOCK NUT

Driving shaft lock

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

26

360741R1

WASHER

SPACER, transmission driving shaft bearing retainer (For tractors equipped with Independent Power Take-Off Drive)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

27

56630H

SEAL

OIL, transmission driving shaft (For tractors equipped with Independent Power Take-Off Drive)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

28

360739R11

HUB

RETAINER ASSEMBLY, transmission driving shaft bearing (For tractors equipped with Independent Power Take-Off Drive)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

SCREW, 3/8 x 1" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

29

361248R92

OIL SEAL

OIL, transmission drive shaft front bearing (For tractors equipped with Independent Power Take-Off Drive)

1шт.

30

358878R1

SLEEVE

COUPLING, transmission drive shaft

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

31

360491R3

SHAFT

Clutch transmission main drive

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

32

ST575

BEARING, BALL,20mm ID x 52mm OD x 15mm W

BALL, clutch pilot

1шт.

33

361314R1

SPARE PART Reverse idler shaft cup (In rear frame)

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

34

360577R2

SHAFT

SHAFT, reverse idler

1шт.

Not used with Forward and Reverse Drive.

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

3/8" x 2", Slotted

1шт.

SCREW, 3/8 NF x 3/4" hex-hd. cap

1шт.

35

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

Reverse idler gear

2шт.

Not used with Forward and Reverse Drive.

1шт.

36

360578R12

SPARE PART ASSEMBLY, reverse idler (21 and 22 teeth) (Farmall 460 Series)

1шт.

Not used with Forward and Reverse Drive.

1шт.

36

368890R11

SPARE PART ASSEMBLY, reverse idler (16 and 22 teeth) (International 460 Series)

1шт.

Not used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

Not used with Forward and Reverse Drive.

1шт.

36

371240R11

SPARE PART ASSEMBLY, reverse idler (22 and 20 teeth)

1шт.

Also used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

37

358236R1

RING

Countershaft rear bearing snap

1шт.

38

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BALL, countershaft, rear

1шт.

39

360671R21

SPARE PART COUNTERSHAFT ASSEMBLY, transmission

1шт.

40

360560R2

SPARE PART First speed driving gear (Farmall 460 Series - 501 to 23000) (International 460 Series -, Serial Range: 501-9581)

1шт.

41

368886R1

GEAR

First speed driving (20 teeth) (International 460 Series)

1шт.

Not used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

41

360561R1

SPARE PART First speed driving (26 teeth) (Farmall 460 Series)

1шт.

Also used on International 460 Tractors equipped with high speed, low and reverse.

1шт.

42

360562R1

WHEEL

GEAR, second speed driving (34 teeth)

1шт.

43

360563R1

GEAR

Third speed driving (40 teeth)

1шт.

43

374288R1

SPARE PART Third speed driving (38 teeth)

1шт.

For tractors equipped with third speed heavy tillage gear.

1шт.

A complete third speed heavy tillage gear field attachment can be obtained by ordering DRIVING GEAR, 374288R1 and SLIDING GEAR, 374289R1 from parts stock.

1шт.

44

368887R2

GEAR

Fourth speed driving (47 teeth)

1шт.

45

360567R1

GEAR

Constant mesh (61 teeth)

1шт.

46

358847R1

SPARE PART SPACER, constant mesh gear

1шт.

47

358850R1

GASKET

Countershaft front bearing cage

2шт.

48

358849R2

SPARE PART Countershaft front bearing

1шт.

49

ST561

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BALL, countershaft, front

1шт.

50

358852R1

WASHER

LOCK, countershaft front bearing nut

1шт.

51

358853R1

BEARING LOCK NUT

Countershaft front bearing

1шт.

52

358848R1

SPARE PART Countershaft front bearing

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

53

358850R1

GASKET

Countershaft front bearing cap

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

54

358851R1

SPARE PART Countershaft front bearing

1шт.

Not used on tractors equipped with Torque Amplifier.

1шт.

Not used on tractors equipped with Independent Power Take-Off Drive.

1шт.

Not used on International 460 Tractors equipped with forward and reverse drive.

1шт.

SCREW, 3/8 x 1-1/8" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

55

375374R1

RING

Countershaft snap (Farmall 460 Series 23001 up) (International 460 Series 9582 up)

1шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant (For all weather use) (Gallon can)

1шт.

372703R1

SPARE PART "Hy-Tran" (Quart can)

1шт.

372704R1

TRANSMISSION OIL

"Hy-Tran" (Gallon can)

1шт.

372705R1

FLUID

"Hy-Tran" (Five gallon can)

1шт.
