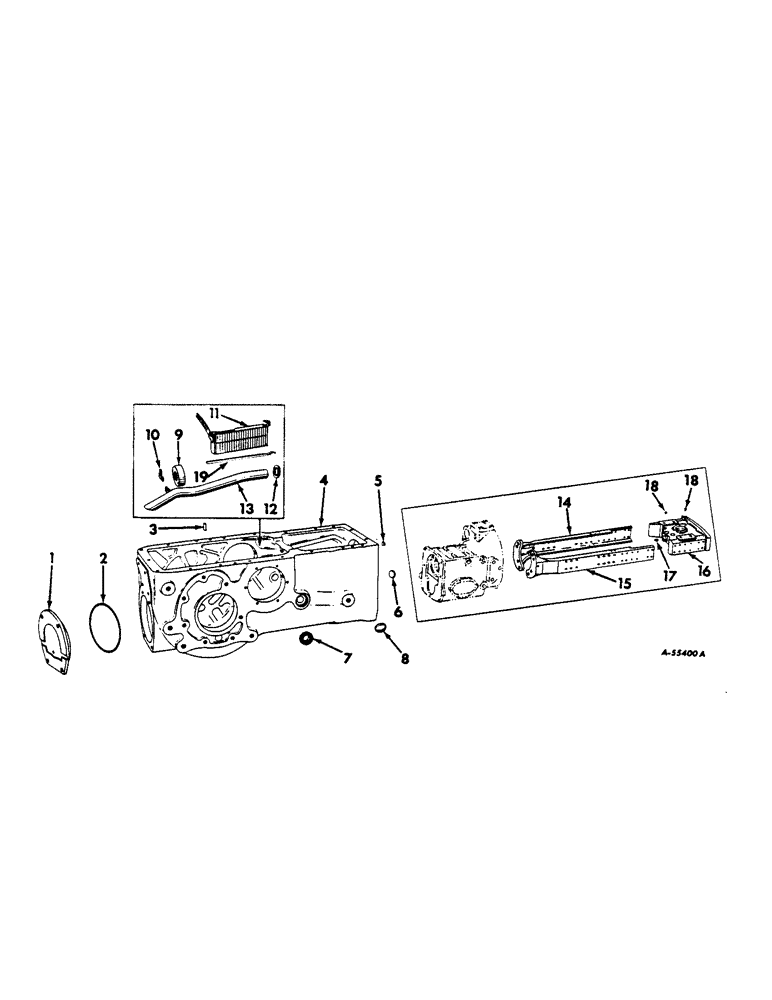

Запчасти Case IH 460 (104) - REAR FRAME & DRIVING MECHANISMS, REAR FRAME, FRONT CHANNELS, UPPER BOLSTER & CONNECTIONS Rear Frame & Driving Mechanisms

1

358841R11

SPARE PART w/O-RING ASSEMBLY, power take-off opening (Not used on tractors equipped with power take-off)

1шт.

SCREW, 1/2 x 1" hex-hd cap

4шт.

2

358842R1

RING

O-RING, power take-off opening cover (7-1/8 x 7-17/32 x 13/64")

1шт.

3

48651D

SPARE PART DOWEL, rear frame cover

2шт.

4

372652R92

SPARE PART PACKAGE, rear frame service (Consists of -

1шт.

48651D

SPARE PART

3шт.

368209R91

SPARE PART

1шт.

367050R1

FRAME (NSS)

1шт.

581646R91

SEAL

OIL

2шт.

41047D

SPARE PART

2шт.

103876

PLUG

1шт.

372350R1

SPARE PART

1шт.

372684R1

SPARE PART

1шт.

45361D

PLUG

1шт.

361314R1

SPARE PART

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

1шт.

370345R2

SPARE PART

1шт.

372349R1

SCREW,Hex, 1/4" - 20 x 7/16", W/ Nylon Pellet

1шт.

Q5001

WASHER

1шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

1шт.

PLUG, 3/8" sq-hd stl pipe

1шт.

PLUG, 1" sq-hd CI pipe

1шт.

372350R1

SPARE PART 1/2" hex-hd pipe

1шт.

372684R1

SPARE PART Rear frame

1шт.

372349R1

SCREW,Hex, 1/4" - 20 x 7/16", W/ Nylon Pellet

1/4 x 7/16" cap

1шт.

Q5001

WASHER

9/32 x 3/4" x 11 ga.

1шт.

5

45361D

PLUG

Vent hole cup (Not used on tractors equipped with Independent Power Take-Off Drive, Torque Amplifier or Forward and Reverse Drive)

1шт.

6

361314R1

SPARE PART Reverse idler shaft cup (Not used on tractors equipped with Independent Power Take-Off Drive, Torque Amplifier or Forward and Reverse Drive)

1шт.

7

581646R91

SEAL

Oil, brake operating shaft

2шт.

8

41047D

SPARE PART Cup (Not used on tractors equipped w/Independent Power Take-Off, Torque Amplifier or Forward and Reverse Drive)

1шт.

9

370368R11

SPARE PART W/BUSHING ASSEMBLY, suction tube bracket (Not used on International 460 Tractors equipped w/Forward and Reverse Drive)

1шт.

10

368214R1

SPARE PART Suction tube bracket support

1шт.

443321

SPARE PART 3/8" lock

1шт.

Used only with Forward and Reverse Drive without Transmission Reverse Idler Gear and Shaft.

1шт.

SCREW, 3/8 x 3/4" hex-hd cap

1шт.

SCREW, 3/8 x 1-3/4" hex-hd cap

1шт.

Used only with Forward and Reverse Drive without Transmission Reverse Idler Gear and Shaft.

1шт.

3944B

SPARE PART Suction tube bracket support retainer

1шт.

Used only with Forward and Reverse Drive without Transmission Reverse Idler Gear and Shaft.

1шт.

311246R1

SPARE PART Suction tube bracket support retainer

1шт.

Used only with Forward and Reverse Drive without Transmission Reverse Idler Gear and Shaft.

1шт.

WASHER, 3/8" lock

1шт.

11

368209R91

SPARE PART Transmission oil (Used only on tractors without Tandem Oil Filter)

1шт.

SCREW, 7/16 x 1-1/4" hex-hd. cap

1шт.

370345R2

SPARE PART Oil filter mounting

1шт.

WASHER, 7/16 external-tooth lock

1шт.

WASHER, 15/32 x 59/64 x No. 16 ga

1шт.

12

368548R1

RING

Oil suction tube seal

1шт.

13

368210R11

SPARE PART Oil suction 13.32, 4.36" Length

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

14

368930R11

SPARE PART ASSEMBLY, LH front frame

1шт.

SCREW, 5/8 x 1-3/8" hex-hd. cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

5/8 x 2" hex-hd. cap

4шт.

15

368931R11

SPARE PART ASSEMBLY, RH front frame

1шт.

SCREW, 5/8 x 1-3/8" hex-hd. cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

5/8 x 2" hex-hd. cap

4шт.

16

367056R11

BOLSTER

W/CUP ST-981 ASSEMBLY, upper

1шт.

17

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (Optional with 443566)

1шт.

17

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (Optional with 273354)

1шт.

18

369861R1

SPARE PART PLUG, upper bolster power steering opening

2шт.

61252H

WASHER

15/32 x 3/4 x No. 11 ga.

1шт.

19

374959R1

SPARE PART Oil (Used only on tractors with Tandem Oil Filter)

1шт.

370345R2

SPARE PART Oil trough mounting

1шт.

WASHER, 7/16" external tooth lock

1шт.
