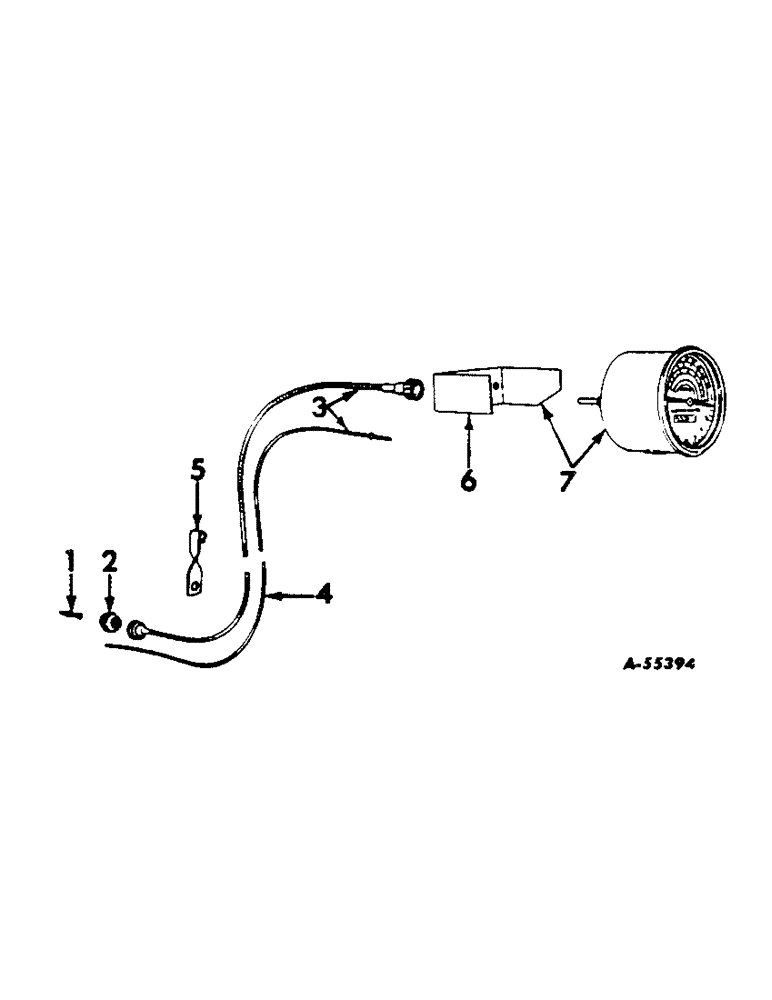

Запчасти Case IH 460 (232) - ENGINE CONTROLS, INSTRUMENTS AND INSTRUMENT PANEL,TRACHOMETER Engine Controls

a

01

FARMALL 460 SERIES

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

02

INTERNATIONAL 460 SERIES

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

c

377559R91

INTERNATIONAL 460 SERIES GROVE, SPARE PART

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

368245R12

PINION

GEAR ASSEMBLY, tachometer drive

1шт.

2

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.

3

364375R91

CABLE

1шт.

3

370197R91

CABLE

1шт.

3

371245R91

CABLE ASSY.

1шт.

4

368107R91

CORE

1шт.

4

370215R91

CORE

1шт.

4

371246R91

CORE

1шт.

5

370205R1

SPARE PART

1шт.

5

364377R1

SPARE PART

1шт.

6

364482R1

SPARE PART

1шт.

7

370466R93

TACHOMETER

ASSEMBLY (Unit A)

1шт.

7

370467R93

TACHOMETER

ASSEMBLY (Unit B and C)

1шт.

363812R1

SPARE PART

1шт.

371774R1

1шт.
