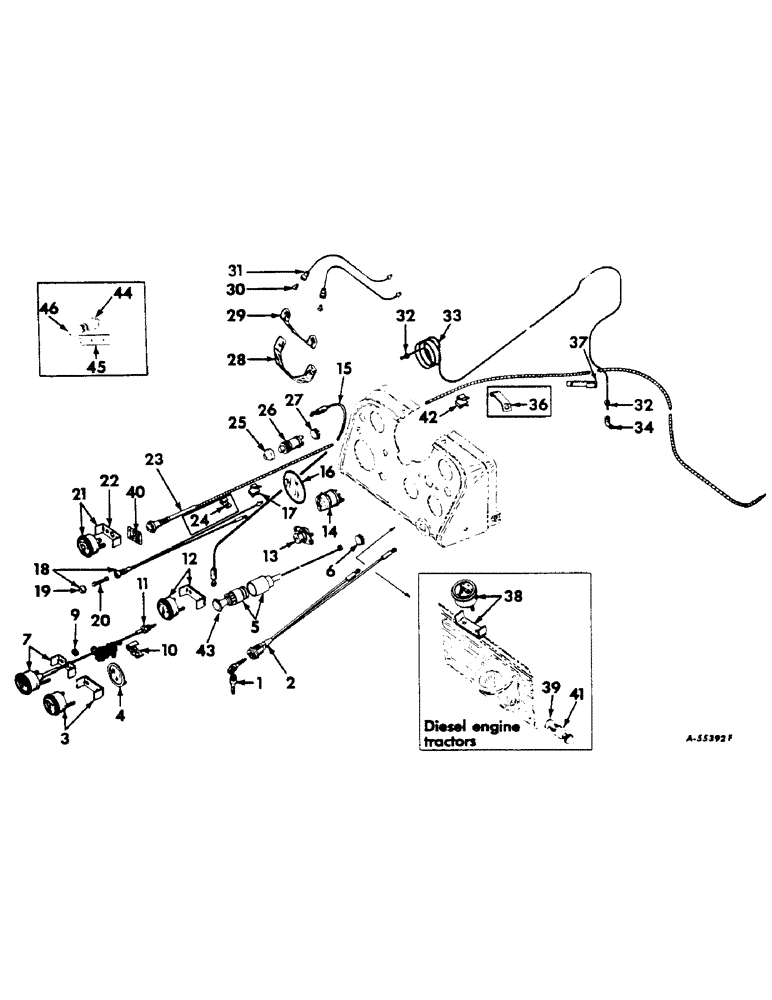

Запчасти Case IH 460 (230) - ENGINE CONTROLS, INSTRUMENTS AND INSTRUMENT PANEL, ENGINE CONTROLS & INSTRUMENTS, FARMALL 460 SERIES Engine Controls

1

KEY, switch (Purchase locally)

1шт.

2

370375R91

IGNITION SWITCH

SPARE PART SWITCH ASSEMBLY, ignition

1шт.

365502R1

NUT

Ignition switch mounting

1шт.

375431R1

LOCK WASHER

13/16" internal-tooth cd-pltd lock

1шт.

3

369607R92

GAUGE

FUEL GAUGE ASSEMBLY

1шт.

4

371052R11

COVER

ASSEMBLY, fuel gauge opening (For L.P. Gas engine tractors)

1шт.

5

367904R91

LIGHTER, CIGARETTE

SPARE PART PARTS ACCESSORY (12 volt)

1шт.

6

432281

HOLE PLUG BUTTON,29/32"

chr-pltd. button (Used to plug hole for cigarette lighter) 29/32"

1шт.

7

370259R92

GAUGE

INDICATOR ASSEMBLY, heat (Composed of -

1шт.

51510D

BUSHING

1шт.

50417D

CLAMP

1шт.

INDICATOR )

1шт.

NSS

1шт.

9

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

Heat indicator cable

1шт.

10

366460R1

CABLE CLIP

Heat indicator cable

2шт.

10

372619R1

SPARE PART Heat indicator cable and breather hose (L.P. Gas Engine Tractors)

1шт.

11

51510D

BUSHING

Heat indicator element nut reducing

1шт.

12

360053R92

INDICATOR

W/CLAMP, six Nuts and six Washers Assembly, charge

1шт.

13

366316R91

SWITCH

ASSEMBLY, push button starting (Optional with 366317R91)

1шт.

13

366317R91

IGNITION SWITCH

ASSEMBLY, push button starting (Optional with 366316R91)

1шт.

NUT, No. 10 NF cd-pltd. sq.

2шт.

SCREW, No. 10 x 3/8" cd-pltd. slt-rd-hd. mach.

2шт.

WASHER, No. 10 cd-pltd. lock

2шт.

14

371465R91

KIT

ASSEMBLY, lighting

1шт.

15

359380R91

CABLE

ASSEMBLY, horn switch to charge indicator

1шт.

16

370940R11

PLATE

COVER ASSEMBLY, tachometer opening

1шт.

17

374903R1

CLIP

Choke or shut-off cable - rear (Gasoline or diesel engine tractors) (Farmall 460 Series 9242 up)

1шт.

18

370311R91

FUSE CARTRIDGE

HOUSING ASSEMBLY, fuse

1шт.

19

356445R91

KNOB

Fuse holder

1шт.

20

10815V

FUSE

10 amp.

1шт.

21

362177R94

INDICATOR

GAUGE W/CLAMP, two Nuts and two Washers Assembly, oil pressure

1шт.

22

60805D

SPARE PART Oil pressure gauge

1шт.

NUT, No. 12

2шт.

WASHER, No. 12 external-tooth lock

2шт.

23

372908R91

SPARE PART CONTROL ASSEMBLY, choke (Gasoline engine tractors) (Order Package, 374251R91) (Farmall 460 Series, Serial Range: 501-9241)

1шт.

23

374219R91

CABLE

CONTROL ASSEMBLY, choke (Gasoline engine tractors) (Farmall 460 Series 9242 up)

1шт.

23

372620R91

CABLE

CONTROL ASSEMBLY, choke (L.P. Gas Engine tractors)

1шт.

23

371736R91

SPARE PART CONTROL ASSEMBLY, shut-off (Diesel engine tractors) (Order Package, 374253R91) Farmall 460 Series, Serial Range: 501-9241

1шт.

23

374221R91

CABLE

CONTROL ASSEMBLY, shut-off (Diesel engine tractors) Farmall 460 Series 9242 up

1шт.

24

371040R1

SPARE PART Choke or shut-off cable - rear (Gasoline or diesel engine tractors) Farmall 460 Series, Serial Range: 501-9241

1шт.

24

355097R1

SPARE PART Choke cable - rear (L.P. Gas engine tractors)

1шт.

25

371487R1

CYLINDER END CAP

Horn switch dust (Gray)

1шт.

26

373611R91

IGNITION SWITCH

Horn (Less cap) (For components see list of parts under details of "Horn or Glow Plug Switch")

2шт.

27

374342R1

PLUG

Horn switch hole

1шт.

28

371204R1

LENS

Instrument light

1шт.

371205R91

SPARE PART Instrument light lens

2шт.

29

370379R1

SPARE PART BRACKET, instrument light

1шт.

SCREW, 1/4 x 1/2" (f-hd.) mach.

2шт.

30

NLS

NO LONGER SERVICED

BULB, instrument light, No. 57 (12 volt)

2шт.

31

372546R91

CABLE

SOCKET ASSEMBLY, instrument light

2шт.

32

222-500

TUBE NUT,5/16" - 24 NPT

1/8" OD brs. tubing

2шт.

33

370802R11

SPARE PART PIPE ASSEMBLY, oil pressure indicator

1шт.

34

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

1/8" OD x 90 degree brs. tubing

1шт.

36

371041R1

SPARE PART Choke or shut-off cable - RH front (Gasoline or diesel engine tractors) Farmall 460 Series, Serial Range: 501-9241

1шт.

36

370740R1

CLAMP

Choke cable (L.P. Gas Engine Tractors)

1шт.

WASHER, 11/32 x 11/16" x 16 ga.

1шт.

37

371038R1

SPARE PART Oil pressure line (For steel line)

1шт.

37

375389R1

SPARE PART Oil pressure line (For nylon line)

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

1шт.

38

370380R92

METER

ASSEMBLY, glow plug

1шт.

39

373612R1

CAP

Dust (Red) (For Switch, 373611R91 when used in glow plug application)

1шт.

40

371372R1

SPARE PART Gear shift

1шт.

40

371371R1

SPARE PART Gearshift (Tractors with Torque Amplifier)

1шт.

9402597

RIVET, 1/16 x 3/16" mushroom hd., al.

2шт.

41

271179R91

SWITCH

ASSEMBLY, glow plug (For components see "Glow Plug Switch")

1шт.

42

374252R1

SPARE PART Choke or shut-off cable - front (Diesel engine) (Farmall 460 Series 9242 up)

1шт.

43

363422R91

SPARE PART UNIT, pop-out

1шт.

44

NOT USED

1шт.

45

NOT USED

1шт.

46

NOT USED

1шт.

374251R91

PACKAGE

Choke control assembly service (Gasoline engine tractors) (Consists of two Clips, 374250R1 and Control, 374219R91) (Will work for 372908R91) Farmall 460 Series, Serial Range: 501-9241

1шт.

374253R91

PACKAGE

Shut-off control assembly service (Diesel engine tractors) (Will work for 371736R91) Farmall 460 Series 501 to 9241 (Consists of -

1шт.

374250R1

SPARE PART

1шт.

374252R1

SPARE PART

1шт.

374221R91

CABLE

CONTROL)

1шт.
