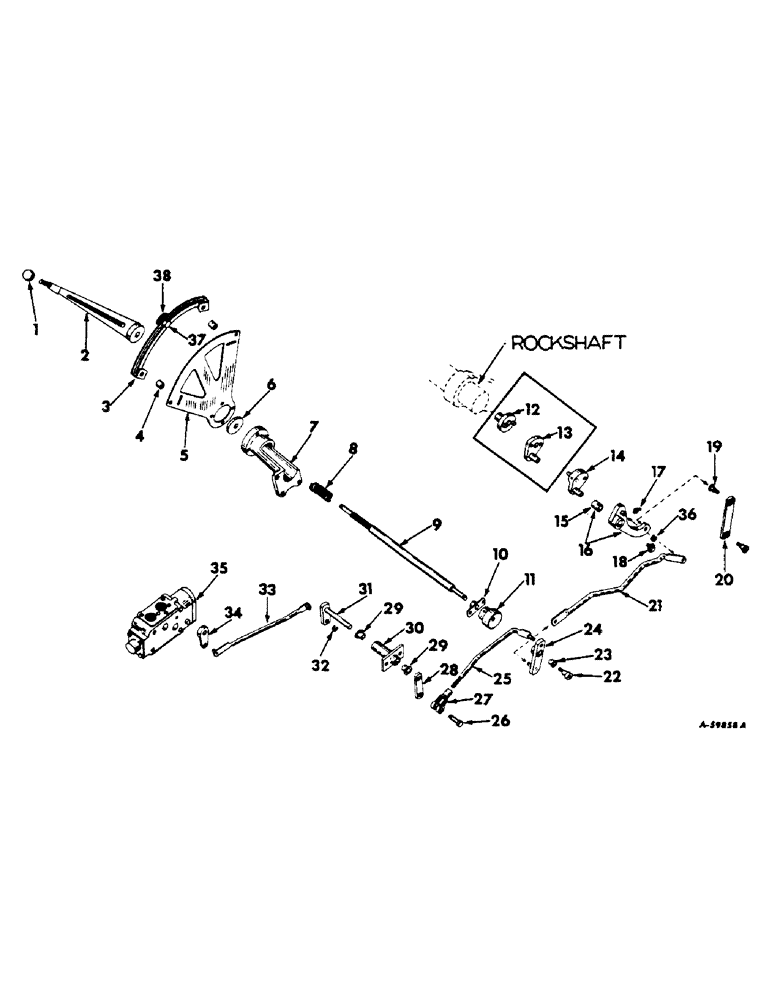

Запчасти Case IH 460 (201) - DRAWBARS & HITCHES, TEL-A-DEPTH VALVE LINKAGE & CONNECTIONS, 3-PT INDUSTRIAL HITCH W/TEL-A-DEPTH Drawbar & Hitches

1

371602R1

KNOB

BALL, Tel-A-Depth handle

1шт.

2

371404R11

HANDLE

ASSEMBLY, Tel-A-Depth

1шт.

PIN, 3/16 x 2" heavy spirol

1шт.

3

371403R11

SPARE PART ASSEMBLY, Tel-A-Depth handle

1шт.

SCREW, 1/4 x 1/2" cd-pltd. hex-hd. cap

2шт.

4

371598R1

SPARE PART STOP, Tel-A-Depth handle

2шт.

SCREW, 1/4NF x 1/2" hex-hd. cap

2шт.

5

371402R11

SPARE PART ASSEMBLY, quadrant support

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

4шт.

6

371601R1

SPARE PART DISC, friction

1шт.

7

371408R1

SPARE PART Quadrant

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 1" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

8

371603R1

SPARE PART Friction disc

1шт.

9

375048R1

ROD

SHAFT, Tel-A-Depth rear lever

1шт.

NUT, 1/2NF jam cd-pltd.

2шт.

WASHER, 11/32 x 1-1/16" x .095

1шт.

10

371595R91

SPARE PART ASSEMBLY, Tel-A-Depth shaft

1шт.

SCREW, 5/16 x 1/2" hex-hd. cap

2шт.

11

374936R1

SPARE PART Tel-A-Depth lever shaft

1шт.

PIN, 3/16 x 1-1/2" spirol

1шт.

12

374945R11

SPARE PART Rockshaft pivot (Part of Package, 375051R91)

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

PIN, 1/4 x 1-1/2" groove

1шт.

13

374984R11

SPARE PART PLUG ASSEMBLY, rockshaft pivot (Part of Package, 375051R91)

1шт.

Not included in the Three-Point Industrial Hitch Attachment.

1шт.

SCREW, 3/8NF x 1/2" hex-soc-rec-hd.

1шт.

14

374987R11

SPARE PART PLATE ASSEMBLY, rockshaft pivot

1шт.

SCREW, 5/16 x 3/4" hex-soc-hd. cap

1шт.

15

375162R1

BUSHING

Compensator arm

1шт.

16

374975R11

SPARE PART ASSEMBLY, compensator

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

Used only in compensator arm pin with hole.

1шт.

WASHER, 13/32 x 3/4" x .065

1шт.

Used only in compensator arm pin with hole.

1шт.

17

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

Angle drive lubrication (Optional with 443571)

1шт.

17

443571

FITTING

3/16" angle drive lubrication (Optional with 273359)

1шт.

18

374955R91

SCREW,Hex, 5/16" - 18 x 0.38", W/ LW

Compensator arm retaining

1шт.

19

374954R1

SCREW,Shldr, Hex Skt, 3/8" - 16 x 0.781"

Compensating link

2шт.

20

374970R1

SPARE PART LINK, compensating

1шт.

21

375033R1

SPARE PART Rear actuating

1шт.

22

374942R1

SEAT

SCREW, walking beam

1шт.

23

374940R1

NYLON BEARING

Walking beam

1шт.

24

375035R11

SPARE PART BEAM ASSEMBLY, walking

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 13/32 x 3/4" x .065

1шт.

25

375036R11

SPARE PART Center actuating

1шт.

PIN, 3/32 x 5/8" cotter

1шт.

WASHER, 13/32 x 3/4" x .065

1шт.

26

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

5/16" cd-pltd. rod end

1шт.

PIN, 3/32 x 1/2" cotter

1шт.

27

144242

CLEVIS

5/16NF adjustable rod end

1шт.

NUT, 5/16NF cd-pltd.

1шт.

28

375042R1

SPARE PART LEVER, jackshaft LH

1шт.

29

374940R1

NYLON BEARING

Jackshaft bearing

2шт.

30

375038R91

SPARE PART BEARING ASSEMBLY, jackshaft

1шт.

NUT, 5/16"

2шт.

SCREW, 5/16 x 3/4" hex-hd. cap

2шт.

WASHER, 5/16" lock

2шт.

31

375094R91

SPARE PART JACKSHAFT ASSEMBLY

1шт.

PIN, 5/32 x 7/8" heavy spirol

1шт.

32

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , actuating rod pin #37, .300" Dia, E-Type

1шт.

33

375044R11

SPARE PART Front actuating

1шт.

34

375047R11

SPARE PART ASSEMBLY, Tel-A-Depth valve actuating

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

35

374908R91

SPARE PART ASSEMBLY, Tel-A-Depth (For components see list of parts under details of "Tel-A-Depth Valve")

1шт.

SCREW, 7/16 x 3/4" hex-hd. cap

4шт.

WASHER, 7/16" lock

4шт.

36

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , rear actuating rod #37, .300" Dia, E-Type

1шт.

37

371599R2

LARGE PIN

PIN, LARGE Adjustable stop

1шт.

38

371600R2

HANDLE

KNOB, adjustable stop pin

1шт.

375051R1

PACKAGE, Tel-A-Depth linkage type follow-up field conversion (Consists of -

1шт.

Also order TANDEM OIL FILTER SERVICE PACKAGE, 374989R91 unless tractor is already so equipped.

1шт.

374911R1

SPARE PART

1шт.

374975R11

SPARE PART

1шт.

375035R11

SPARE PART BEAM

1шт.

375038R91

SPARE PART

1шт.

360615R1

BUSHING

1шт.

374940R1

NYLON BEARING

3шт.

144242

CLEVIS

1шт.

374936R1

SPARE PART

1шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING

1шт.

375094R91

SPARE PART JACKSHAFT

1шт.

375042R1

SPARE PART LEVER

1шт.

375047R1

LEVER

1шт.

374970R1

SPARE PART LINK

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

120368

NUT,5/16"-24, G5

5/16"-24, G5

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

2шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

3/32" x 7/16", Slotted

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

2шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

3/16" x 1 1/2", Coiled

1шт.

19506R1

PIN,3/16" x 2", Coiled

3/16" x 2", Coiled

1шт.

432-68

COTTER PIN,3/32" x 1/2"

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

137159

COTTER PIN

3/32" x 5/8"

3шт.

188438

GROOVED PIN,1/4" x 1 1/2", Type F

1/4" x 1 1/2", Type F

1шт.

374984R11

SPARE PART

1шт.

374945R11

SPARE PART

1шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

375033R1

SPARE PART

1шт.

375036R11

SPARE PART

1шт.

375044R11

SPARE PART

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

217949

SPARE PART

1шт.

374942R1

SEAT

SCREW

1шт.

374954R1

SCREW,Shldr, Hex Skt, 3/8" - 16 x 0.781"

2шт.

374955R91

SCREW,Hex, 5/16" - 18 x 0.38", W/ LW

1шт.

374912R1

SPARE PART

1шт.

375048R1

ROD

SHAFT

1шт.

374706R1

SPARE PART SHIM

1шт.

375002R1

SPARE PART

1шт.

Q1597

WASHER

3шт.

103320

LOCK WASHER,5/16"

5/16"

2шт.
