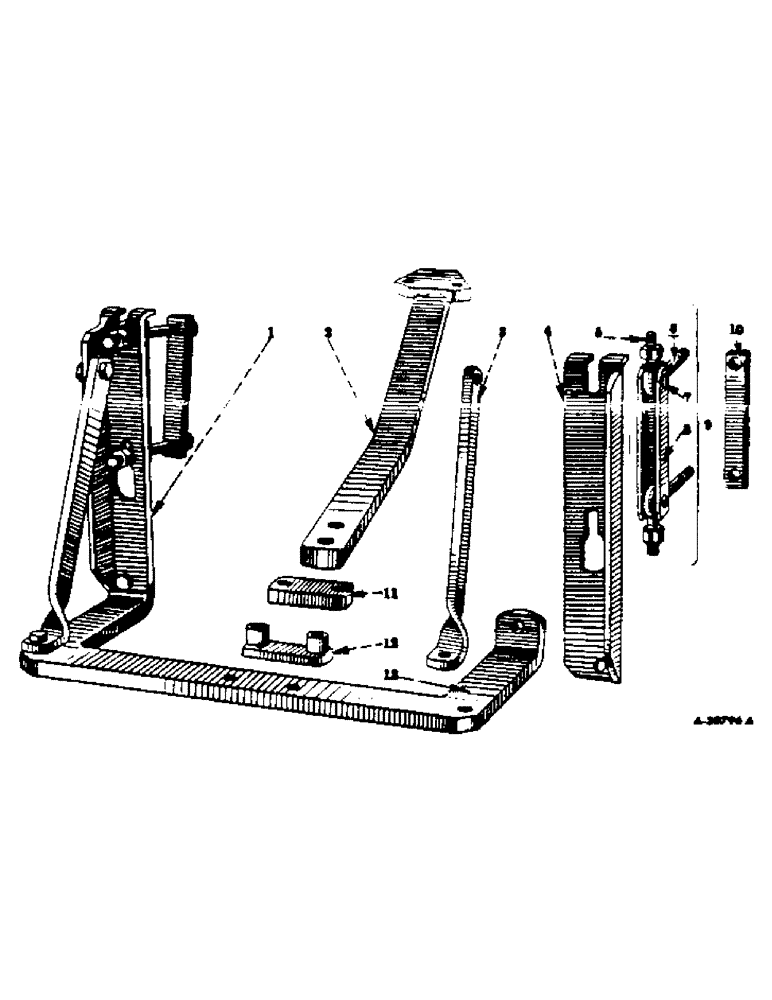

Запчасти Case IH 460 (195) - DRAWBARS & HITCHES, QUICK-ATTACHABLE HIGH-HITCH HEAVY DUTY DRAWBAR, FARMALL 460 SERIES HI-CLEAR Drawbar & Hitches

360990R91

SPARE PART PARTS ACCESSORY, quick attachable high-hitch heavy duty drawbar

1шт.

1

353276R1

SPARE PART ANGLE, drawbar LH

1шт.

2

360991R11

SPARE PART TONGUE, drawbar, w/Plate

1шт.

SCREW, 3/4 x 2-1/8" hex-hd. cap

2шт.

SCREW, 3/4 x 3-3/8" hex-hd. cap

1шт.

WASHER, 3/4" lock

3шт.

3

353275R1

SPARE PART BRACE, drawbar

2шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 1-7/8" hex-hd. cap

2шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

WASHER, 3/4" lock

4шт.

4

353277R1

SPARE PART ANGLE, drawbar RH

1шт.

5

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT ASSEMBLY, drawbar attaching channel

4шт.

357790R1

NUT

Drawbar eyebolt

4шт.

Q1552

WASHER

25/32 x 1-1/4" x 10 ga.

4шт.

6

43685D

BOLT

Drawbar attaching channel

4шт.

NUT, 3/4" NF

4шт.

WASHER, 3/4" lock

4шт.

7

43690D

PIN

Drawbar attaching channel

4шт.

8

PO26267

SPARE PART Drawbar attaching

2шт.

9

353273R92

SPARE PART ASSEMBLY, drawbar attaching (Composed of -

2шт.

43685D

BOLT

2шт.

PO26267

SPARE PART

1шт.

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT

2шт.

218197

NUT,3/4"-16, G5

2шт.

43690D

PIN

2шт.

103326

LOCK WASHER,3/4"

3/4"

2шт.

10

PO26224

SPARE PART Drawbar attaching

2шт.

11

353274R1

SPARE PART Drawbar tongue

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 4-3/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.

12

353280R11

SPARE PART SHIM ASSEMBLY, drawbar tongue

1шт.

13

353278R11

SPARE PART

1шт.

NUT, 3/4"

2шт.

SCREW, 3/4 x 2-1/4" hex-hd. cap

2шт.

WASHER, 3/4" lock

2шт.
