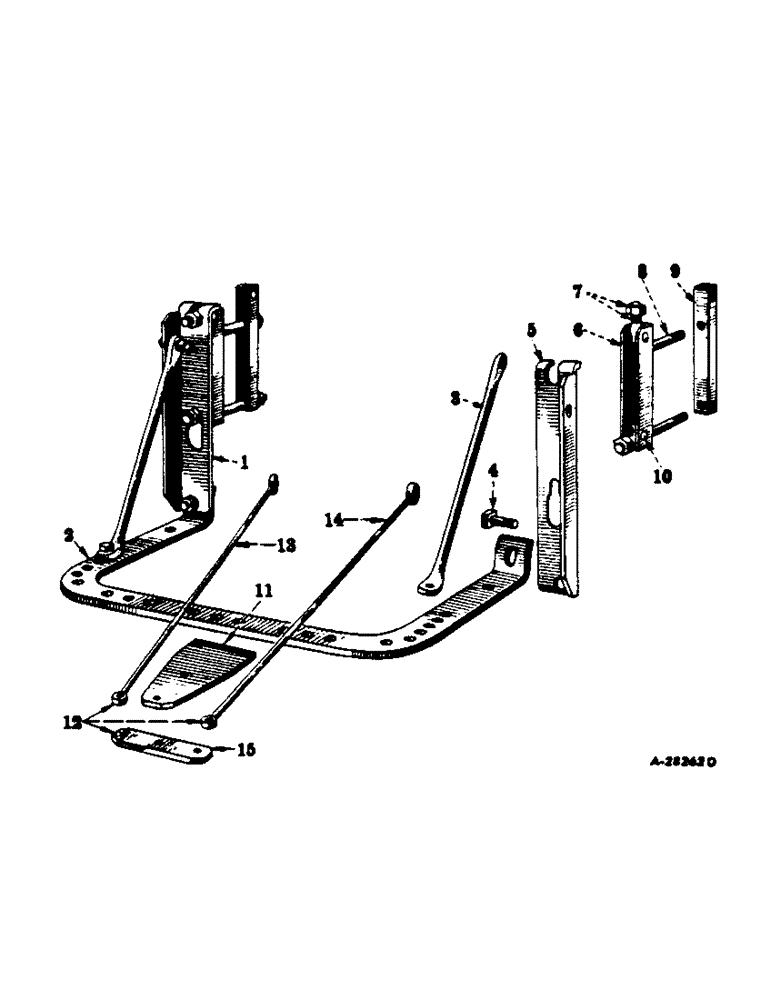

Запчасти Case IH 460 (193) - DRAWBARS & HITCHES, FIXED DRAWBAR Drawbar & Hitches
№
Артикул
Название
Примечание
Количество
69044DC
SPARE PART ASSEMBLY (Reference No. 1 to 10 inclusive)
1шт.
1
57228D
SPARE PART ANGLE, drawbar LH
1шт.
2
57227DB
SPARE PART DRAWBAR
1шт.
3
57233DA
ROD
BRACE, drawbar
2шт.
NUT, 3/4"
4шт.
SCREW, 3/4 x 2-1/4" hex-hd. cap
2шт.
SCREW, 3/4 x 1-3/4" hex-hd. cap
2шт.
WASHER, 3/4" lock
4шт.
4
41111D
BOLT,3/4" - 10 x 2 3/4"
Drawbar pivot
2шт.
NUT, 3/4"
2шт.
WASHER, 3/4" lock
2шт.
5
57229D
SPARE PART ANGLE, drawbar RH
1шт.
6
51716DXB
CHANNEL
ASSEMBLY, drawbar attaching (Composed of -
2шт.
43685D
BOLT
2шт.
51716D
CHANNEL (NSS)
1шт.
48291DAX
BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"
EYEBOLT
2шт.
43690D
PIN
2шт.
7
48291DAX
BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"
EYEBOLT ASSEMBLY, drawbar
4шт.
357790R1
NUT
Drawbar eyebolt
4шт.
Q1552
WASHER
25/32 x 1-1/4" x 10 ga.
4шт.
8
43685D
BOLT
Drawbar attaching
4шт.
NUT, 3/4"
4шт.
WASHER, 3/4" lock
4шт.
9
51715DA
SPARE PART CLAMP, drawbar attaching
2шт.
10
43690D
PIN
Drawbar eyebolt
4шт.
11
66426D
SPARE PART PLATE, drawbar extension (Provides a standardized power take-off hitch for tractors equipped with drawbar - but not with swinging drawbar) (Note A)
1шт.
NUT, 3/4"
2шт.
SCREW, 3/4 x 2-3/4" hex-hd. cap
2шт.
WASHER, 3/4" lock
2шт.
12
368390R91
SPARE PART PARTS ACCESSORY, auxiliary drawbar brace (Consists of -
1шт.
368391R1
SPARE PART LH
1шт.
368392R1
SPARE PART RH
1шт.
102639
NUT,5/8"-11, G5
5/8"-11, G5
1шт.
220081
NUT
4шт.
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
1шт.
271613
SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5
4шт.
368393R1
SPARE PART
1шт.
103325
LOCK WASHER,5/8"
5/8"
1шт.
103326
LOCK WASHER,3/4"
3/4"
4шт.
13
368391R1
SPARE PART Auxiliary drawbar LH
1шт.
NUT, 3/4"
2шт.
SCREW, 3/4 x 2-1/2" hex-hd. cap
2шт.
WASHER, 3/4" lock
2шт.
14
368392R1
SPARE PART Auxiliary drawbar RH
1шт.
NUT, 3/4"
2шт.
SCREW, 3/4 x 2-1/2" hex-hd. cap
2шт.
WASHER, 3/4" lock
2шт.
15
368393R1
SPARE PART Drawbar extension
1шт.
NUT, 5/8"
1шт.
SCREW, 5/8 x 2-1/2" hex-hd. cap
1шт.
WASHER, 5/8" lock
2шт.
Выбрано товаров: 51
