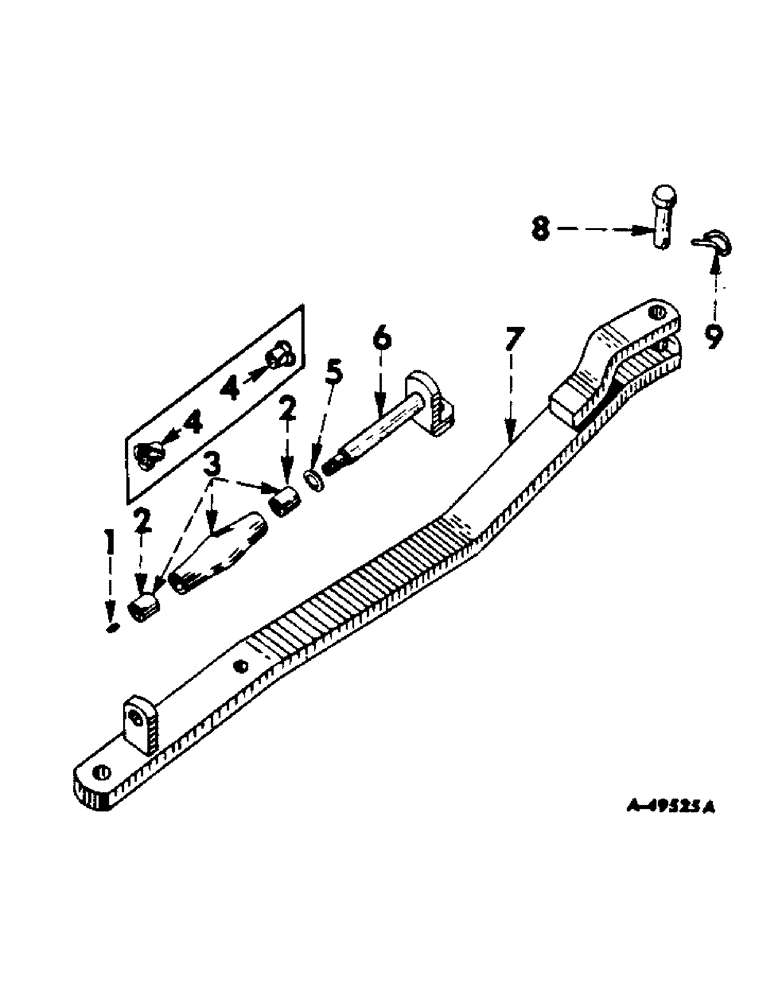

Запчасти Case IH 460 (192) - DRAWBARS & HITCHES, SWINGING DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH Drawbar & Hitches

368467R92

ATTACHMENT, swinging drawbar

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Optional with 138322H) 1/8"-27 x .66 lg

1шт.

Used on Swinging Drawbar with Lubrication Fitting for Roller.

1шт.

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Optional with 109461)

1шт.

Used on Swinging Drawbar with Lubrication Fitting for Roller.

1шт.

2

356564R1

BUSHING

Drawbar roller

2шт.

Used on Swinging Drawbar with Lubrication Fitting for Roller.

1шт.

3

356562R31

ROLLER

ASSEMBLY, swinging drawbar

1шт.

4

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller

2шт.

Used on Swinging Drawbar without Lubrication Fitting for Roller.

1шт.

5

358002R1

WASHER

Drawbar roller shaft

2шт.

Used on Swinging Drawbar with Lubrication Fitting for Roller.

1шт.

6

356561R11

SHAFT

AND SUPPORT ASSEMBLY, swinging drawbar roller

1шт.

NUT, 5/8"

1шт.

NUT, 3/4"

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

1шт.

WASHER, 5/8" lock

1шт.

WASHER, 3/4" lock

1шт.

7

368469R11

SPARE PART DRAWBAR ASSEMBLY, swinging

1шт.

NUT, 3/4"

2шт.

Used to lock swinging drawbar in rigid position when desired.

1шт.

SCREW, 3/4 x 1-3/4" hex-hd. cap

2шт.

Used to lock swinging drawbar in rigid position when desired.

1шт.

8

368472R1

PIN

SPARE PART Swinging drawbar pivot

1шт.

9

PO18499

COTTER PIN

Quick attachable cotter

1шт.
