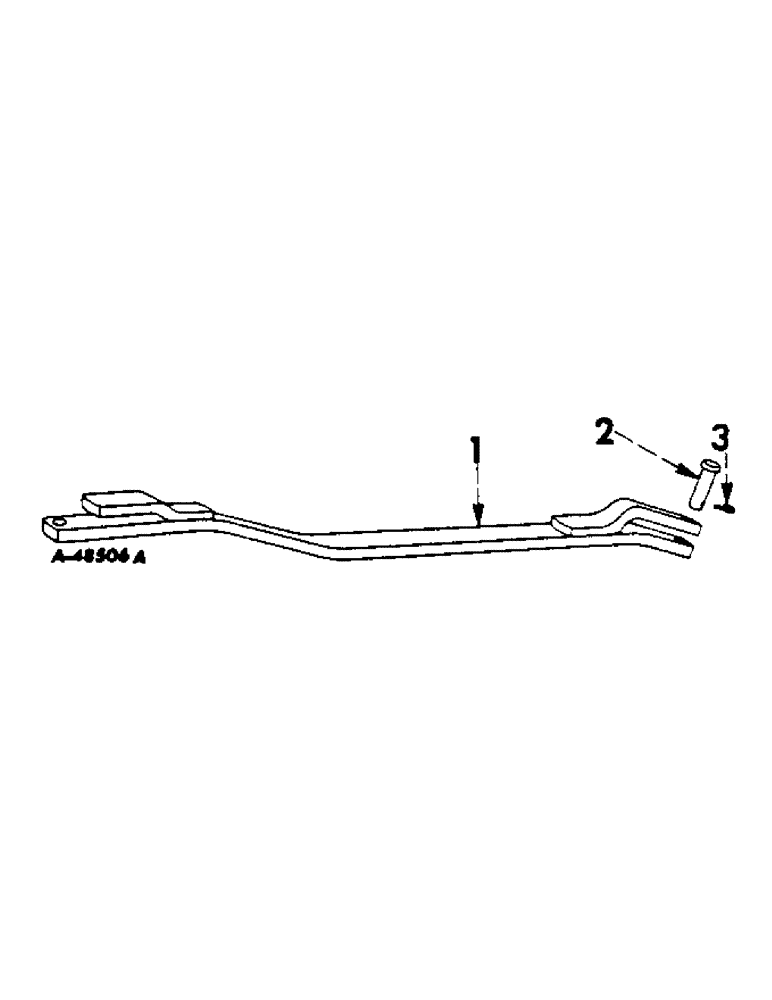

Запчасти Case IH 460 (189) - DRAWBARS & HITCHES, SWINGING DRAWBAR Drawbar & Hitches

368451R91

ATTACHMENT, swinging drawbar

1шт.

1

368468R11

SPARE PART DRAWBAR, swinging

1шт.

NUT, 3/4" See

2шт.

Used to lock swinging drawbar in rigid position when desired.

1шт.

SCREW, 3/4 x 1-3/4" hex-hd cap

2шт.

Used to lock swinging drawbar in rigid position when desired.

1шт.

2

368472R1

PIN

SPARE PART Swinging drawbar pivot

1шт.

3

PO18499

COTTER PIN

Quick attachable cotter

1шт.
