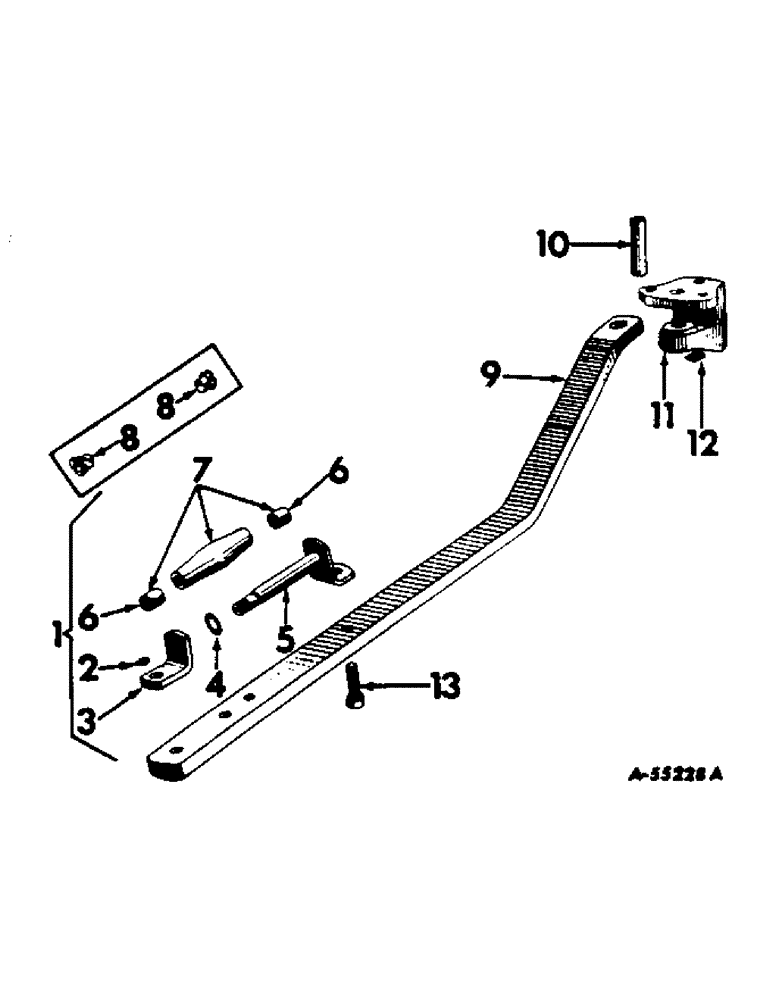

Запчасти Case IH 460 (188) - DRAWBARS & HITCHES, SWINGING DRAWBAR Drawbar & Hitches

360631R93

ATTACHMENT, swinging drawbar

1шт.

1

356563R93

ROLLER

ASSEMBLY, swinging drawbar (Composed of -

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1/8"-27 x .66 lg

1шт.

220081

NUT

1шт.

356562R31

ROLLER

1шт.

256561R11

SHAFT

1шт.

356565R2

SUPPORT

1шт.

103326

LOCK WASHER,3/4"

3/4"

1шт.

358002R1

WASHER

2шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Optional with 138322H) used on swinging drawbar with lubrication fitting for roller 1/8"-27 x .66 lg

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Optional with 109461) used on swinging drawbar with lubrication fitting for roller

1шт.

3

356565R2

SUPPORT

Drawbar roller shaft

1шт.

13361R1

BOLT, 5/8 x 2-1/4" mach

1шт.

NUT, 5/8"

1шт.

WASHER, 5/8" lock

1шт.

4

358002R1

WASHER

Drawbar roller shaft, used on swinging drawbar with lubrication fitting for roller

2шт.

5

356561R11

SHAFT

AND SUPPORT ASSEMBLY, swinging drawbar roller

1шт.

NUT, 5/8"

1шт.

NUT, 3/4"

1шт.

SCREW, 5/8 x 2-1/4" cap

1шт.

WASHER, 5/8" lock

1шт.

WASHER, 3/4" lock

1шт.

6

356564R1

BUSHING

Drawbar roller, used on swinging drawbar with lubrication fitting for roller

2шт.

7

356562R31

ROLLER

Swinging drawbar

1шт.

8

368513R1

BUSHING,1.3125" OD x 0.875"

BEARING, swinging drawbar roller, used on swinging drawbar without lubrication fitting for roller

2шт.

9

360632R1

SPARE PART DRAWBAR, swinging

1шт.

10

57654D

PIVOT PIN

Swinging drawbar pivot

1шт.

11

8785DA

SUPPORT

Swinging drawbar pivot

1шт.

374336R1

BOLT,Hex, 3/4" - 10 x 1 7/8", Gr 2

Swinging drawbar pivot support

3шт.

WASHER, 3/4" lock

3шт.

12

57655D

PLATE

Swinging drawbar pivot pin lock

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

13

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2" hex-hd cap (Used to lock the swinging drawbar in rigid position when desired)

2шт.

NUT, 3/4" sq.

2шт.

WASHER, 3/4" lock

2шт.
