Запчасти Case IH 460 (052) - COOLING SYSTEM, DIESEL ENGINE OIL COOLER, FARMALL 460 SERIES COOLING SYSTEM

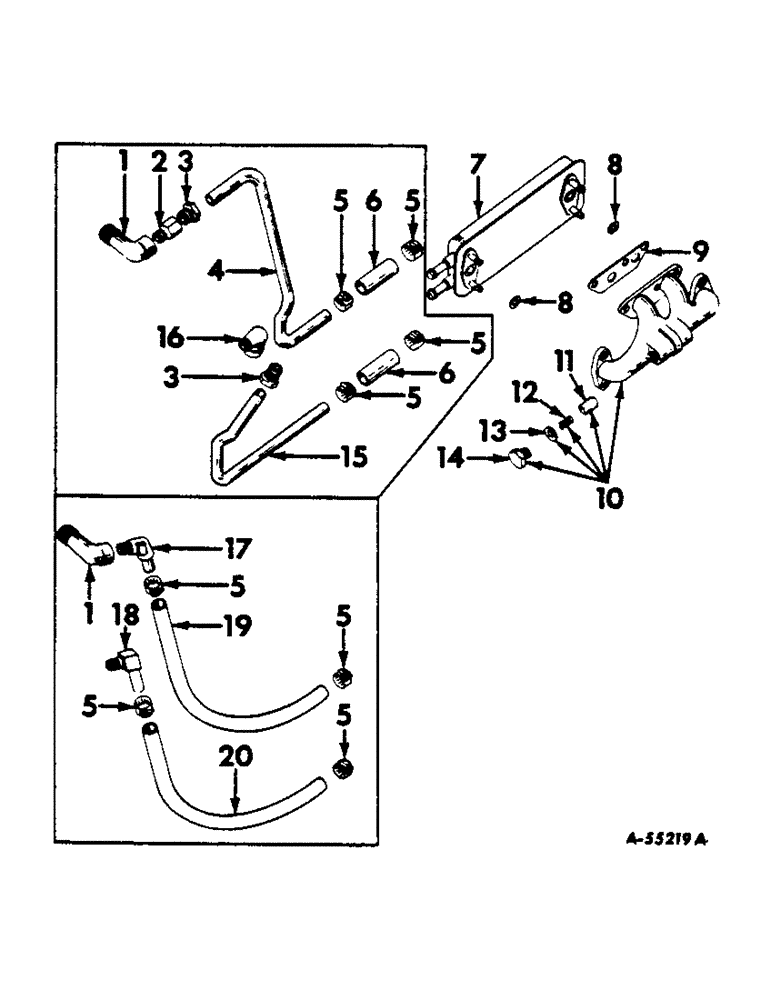

Схема запчастей Case IH 460 - (052) - COOLING SYSTEM, DIESEL ENGINE OIL COOLER, FARMALL 460 SERIES COOLING SYSTEM
6
4
1
5
15
17
1
16
5
20
18
3
19
5
10
5
6
9
13
14
8
7
11
5
5
8
3
5
2
12
5

№

Артикул

Название

Примечание

Количество

1

299446R1

SPARE PART oil cooler outlet pipe

1шт.

2

19362R1

CONNECTOR, 5/8 x 1/2NPT hi-duty

1шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

3

222-507

TUBE NUT,7/8"-18

7/8-18 hi-duty tube fitting

2шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

4

306669R1

SPARE PART oil cooler water inlet

1шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

5

274085R1

HOSE CLAMP

water hose

4шт.

6

279165R1

TUBE

water

1шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

7

279212R91

COOLER ASSY.

engine oil (Optional with 304155R91)

1шт.

7

304155R91

COOLER

engine oil (Optional with 279212R91)

1шт.

NUT, 5/16"

4шт.

WASHER, 5/16" lock

4шт.

8

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

oil cooler to manifold (3/4 x 1 x 1/8")

2шт.

9

304091R1

GASKET

oil cooler manifold

2шт.

9

304945R1

SPACER

SPARE PART oil cooler manifold

1шт.

10

279160R11

SPARE PART engine oil cooler

1шт.

1/4" sq-hd. pipe

2шт.

11

251400R1

VALVE

oil cooler relief

1шт.

12

279163R1

SPRING

oil cooler relief valve

1шт.

13

251403R1

GASKET

relief valve plug

1шт.

14

251402R1

PLUG

relief valve

1шт.

15

306670R1

HOSE

oil cooler water outlet

1шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

16

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

5/8 x 1/2NPT x 90 degree hi-duty

1шт.

Used only on Farmall 460 Series Tractors with oil cooler water pipes.

1шт.

17

278089R1

FITTING

5/8 x 1/2NPT x 45 degree hose

1шт.

Used only on tractors with oil cooler water hoses.

1шт.

18

171809R1

ELBOW UNION

Union Elbow 5/8 x 1/2NPT x 90 degrees

1шт.

Used only on tractors with oil cooler water hoses.

1шт.

19

305205R1

SPARE PART oil cooler water inlet (5/8" ID x 16-1/2" long)

1шт.

For service replacement on Farmall 460 Series Tractors order - PIPE, 306669R1, CONNECTOR, 19362R1, NUT, 56446D and HOSE, 279165R1.

1шт.

20

305206R1

HOSE

oil cooler water outlet (5/8" ID x 13-3/4" long)

1шт.

For service replacement on Farmall 460 Series Tractors order - PIPE, 306670R1, ELBOW, 56445D, NUT, 56446D and HOSE, 279165R1.

1шт.
