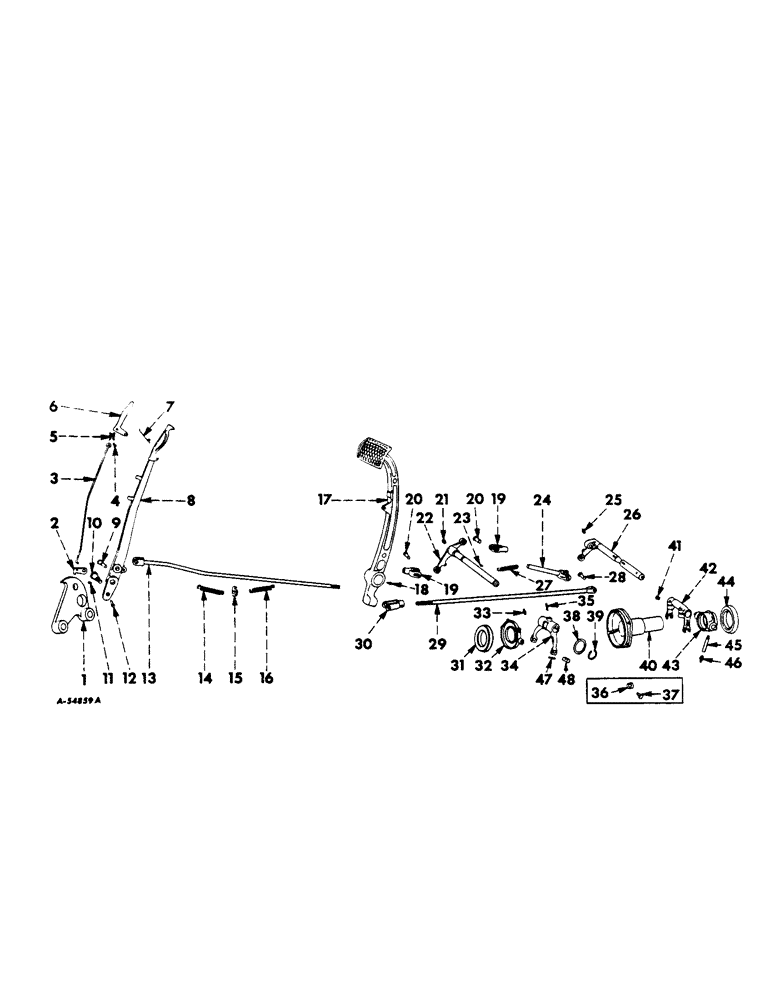

Запчасти Case IH 460 (101) - CLUTCH, CLUTCH CONTROLS AND TORQUE AMPLIFIER CONTROLS, FARMALL 460 SERIES (03.1) - CLUTCH

1

360672R1

SPARE PART Torque amplifier operating handle (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

SCREW, 5/8 x 3-3/4" hex-hd. cap

2шт.

WASHER, 5/8" lock

2шт.

2

359925R3

PAWL

Torque amplifier operating handle (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

3

359923R11

SPARE PART Torque amplifier operating handle actuating pawl (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

PIN, 1/16 x 1/2" cotter

1шт.

WASHER, 9/32 x 5/8" x 16 ga.

1шт.

4

359922R2

PIN

Torque amplifier operating handle pawl grip (Also order Retainer, 356892R2 on Farmall 460 Series, Serial Range: 501-22560)

2шт.

5

149505

SPRING, pawl grip pin retainer (Order Pin, 359222R2 and Retainer, 356892R2) Farmall 460 Series, Serial Range: 501-22560

2шт.

5

356893R2

WASHER

RETAINER, pawl grip pin (Farmall 460 Series 22561 up)

2шт.

6

359921R2

SPARE PART Torque amplifier operating handle pawl control (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

7

359920R2

SPRING

Torque amplifier operating handle pawl control grip (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

8

359917R11

SPARE PART w/Pin, 141283 and Pin, 359918R1 Assembly, torque amplifier operating (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

9

359918R1

SPARE PART Torque amplifier clutch control rod (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

PIN, 1/8 x 1" cotter

1шт.

10

359919R2

SPARE PART Torque amplifier operating handle pivot (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

NUT, 9/16" NF

1шт.

WASHER, 9/16" lock

1шт.

575813R1

WASHER

25/32 x 1-1/4" x 11 ga.

1шт.

11

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (Torque amplifier operating handle) (Optional with 443566)

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (Torque amplifier operating handle) (Optional with 273354)

1шт.

12

NLS

NO LONGER SERVICED

1/2 x 1" dowel (Torque amplifier operating handle) (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

13

370580R91

SPARE PART ASSEMBLY, torque amplifier clutch control (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

NUT, 1/2" NF jam

1шт.

14

357164R1

SPRING

Torque amplifier operating handle return (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

15

360507R1

ANCHOR

Return spring

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

16

360508R1

SPRING

Clutch pedal return

1шт.

17

366329R1

SPARE PART Clutch

1шт.

18

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (Optional with 443566)

1шт.

18

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (Optional with 273354)

1шт.

19

359928R1

SPARE PART Torque amplifier clutch operating (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

20

359929R1

PIN

Torque amplifier release lever (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

PIN, 1/8 x 1" cotter

2шт.

11002VA

WASHER

17/32 x 7/8" x 16 ga.

1шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Torque amplifier clutch release shaft) (Optional with 138322H) (Note A) 1/8"-27 x .66 lg

2шт.

For tractors equipped with Torque Amplifier.

1шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Torque amplifier clutch release shaft) (Optional with 109461) (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

22

365960R91

SHAFT

ASSEMBLY, torque amplifier clutch release (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

23

NLS

NO LONGER SERVICED

KEY, No. 8 Woodruff (Torque amplifier clutch release shaft) (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

24

360674R11

SPARE PART ASSEMBLY, engine clutch to torque amplifier clutch (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

NUT, 1/2" NF jam

1шт.

PIN, 1/8 x 1" cotter

1шт.

PIN, 1/2 x 1-27/64" drilled rod end

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

(Clutch release shaft) (Optional with 138322H) 1/8"-27 x .66 lg

2шт.

25

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

(Clutch release shaft) (Optional with 109461)

2шт.

26

360504R11

SPARE PART ASSEMBLY, clutch release

1шт.

27

360677R1

SPRING

Torque amplifier clutch release shaft lever

1шт.

28

114787

AXLE PIN

Clutch operating rod clevis

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

29

366330R11

SPARE PART ASSEMBLY, clutch operating

1шт.

NUT, 1/2NF jam

1шт.

30

213-318

CLEVIS

Clutch operating rod adjustable

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

11002VA

WASHER

17/32 x 7/8" x 16 ga.

1шт.

PIN, 1/2 x 1-27/64" dld. rod end

1шт.

31

362028R91

BALL BEARING

Thrust (Torque amplifier clutch release) (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

32

359900R1

RING

SLEEVE, torque amplifier clutch release (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

33

359901R1

SPRING

Torque amplifier clutch release sleeve (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

34

360653R2

CRADLE

FORK, torque amplifier clutch release (Note A and B)

1шт.

For service replacement on Farmall 460 series 501 to 22155, also order 2 rivets 12810R1 and 2 pins 375559R1

1шт.

For tractors equipped with Torque Amplifier.

1шт.

35

359906R1

SCREW

Torque amplifier clutch release fork lock (Note A)

1шт.

For tractors equipped with Torque Amplifier.

1шт.

NUT, 3/8" jam

1шт.

36

359903R1

SPARE PART Torque amplifier clutch release sleeve pivot (Note A) Farmall 460 Series, Serial Range: 501-22155

2шт.

For tractors equipped with Torque Amplifier.

1шт.

37

359904R1

PIVOT

Torque amplifier clutch release sleeve (Note A) Farmall 460 Series, Serial Range: 501-22155

2шт.

For tractors equipped with Torque Amplifier.

1шт.

38

359908R1

THRUST WASHER

Torque amplifier clutch release shaft (Note A)

2шт.

39

359909R1

RING

RETAINER, torque amplifier clutch release shaft (Note A)

2шт.

For tractors equipped with Torque Amplifier.

1шт.

40

368286R1

SPARE PART Clutch release sleeve (For tractors not equipped with Independent Power Take-Off Drive or Torque Amplifier) (Optional with 368990R1)

1шт.

40

368990R1

Clutch release sleeve (For tractors not equipped with Independent Power Take-Off Drive or Torque Amplifier) (Optional with 368286R1)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

4шт.

WASHER, 3/8" lock

4шт.

41

41116D

KEY

Clutch release fork

2шт.

42

360503R1

FORK

Clutch release

1шт.

SCREW, 3/8 x 1-1/2" hex-hd. cap

2шт.

WASHER, 3/8" lock

2шт.

43

360501R2

SLEEVE CYLINDER

Clutch release

1шт.

44

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

BALL, clutch release (Optional with 365865R91)

1шт.

44

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

BALL, clutch release (Optional with 59879D)

1шт.

45

365720R1

PIPE

Clutch release bearing grease

1шт.

46

18541R91

LUBE NIPPLE

FITTING, 5/16" straight lubrication (Optional with Q3618)

1шт.

46

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16" straight lubrication (Optional with 18541R91)

1шт.

47

12810R1

SPARE PART 1/8 x 1-1/32 Rd-Hd (Farmall 460 Series 22156 up)

1шт.

48

375559R1

PIN

Torque amplifier clutch release pivot (Farmall 460 Series 22156 up)

2шт.
