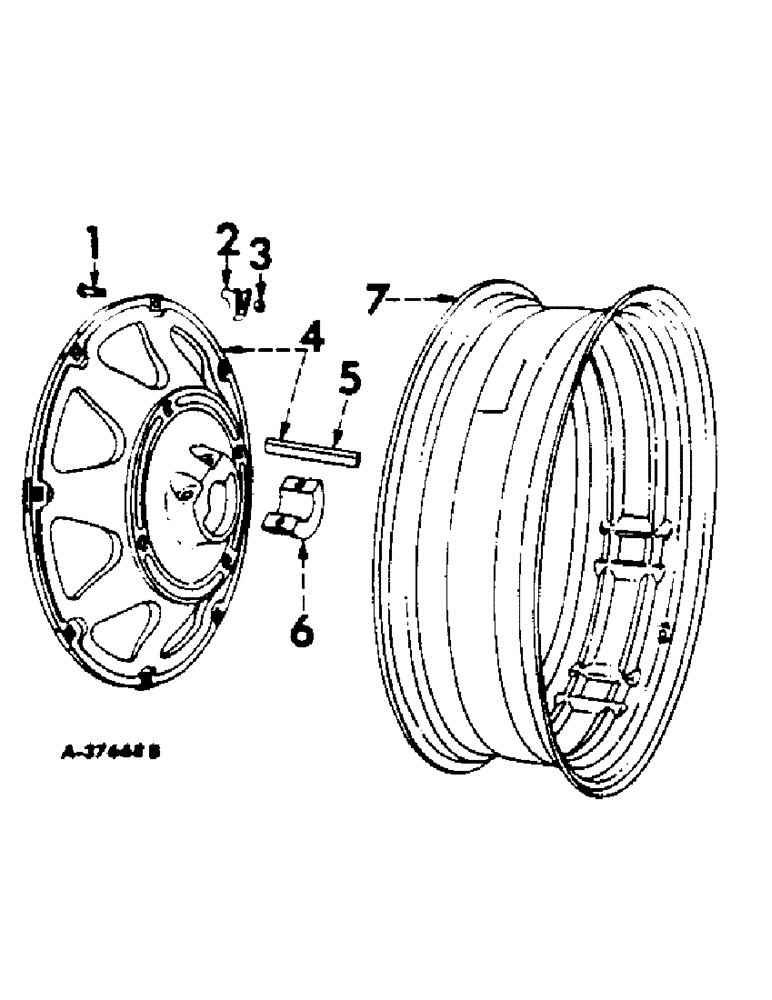

Запчасти Case IH 460 (145) - WHEELS, REAR WHEELS, PNEUMATIC TIRES, ALL FARMALL 460 SERIES TRAC. EXCEPT HI-UTILITY TRACTOR (11) - WHEELS

1

363017R1

BOLT,5/8" - 18 x 2 1/4"

Rear wheel rim clamp

16шт.

2

363016R1

CLAMP

Rear wheel rim (Adjustable)

12шт.

2

373926R1

CLAMP

Rear wheel rim (Fixed)

4шт.

3

363018R1

NUT

Rim clamp

16шт.

4

364698R22

SPARE PART ASSEMBLY, rear

2шт.

375462R1

BOLT,Hex, 3/4" - 16 x 4 3/4", Gr 4

SCREW, 3/4NF x 4-3/4" hex-hd cap

8шт.

575813R1

WASHER

25/32 x 1-1/4" x 11 ga.

8шт.

5

364699R2

KEY

Rear wheel

1шт.

6

363020R1

CLAMP

Rear wheel hub

4шт.

7

365946R2

RIM

WHEEL Rear wheel (W 14-L-38 Rim for 15.5-38 tire)

2шт.

7

363145R1

SPARE PART Rear wheel (W 10-38 Rim for 10-38 or 11-38 tire)

2шт.

7

363022R1

RIM

Rear wheel (W 11-38 Rim for 11-38 or 12-38 tire)

2шт.

7

363023R1

RIM

WHEEL Rear wheel (W 12-38 Rim for 12-38 or 13-38 or 13-6-38 tire)

2шт.
