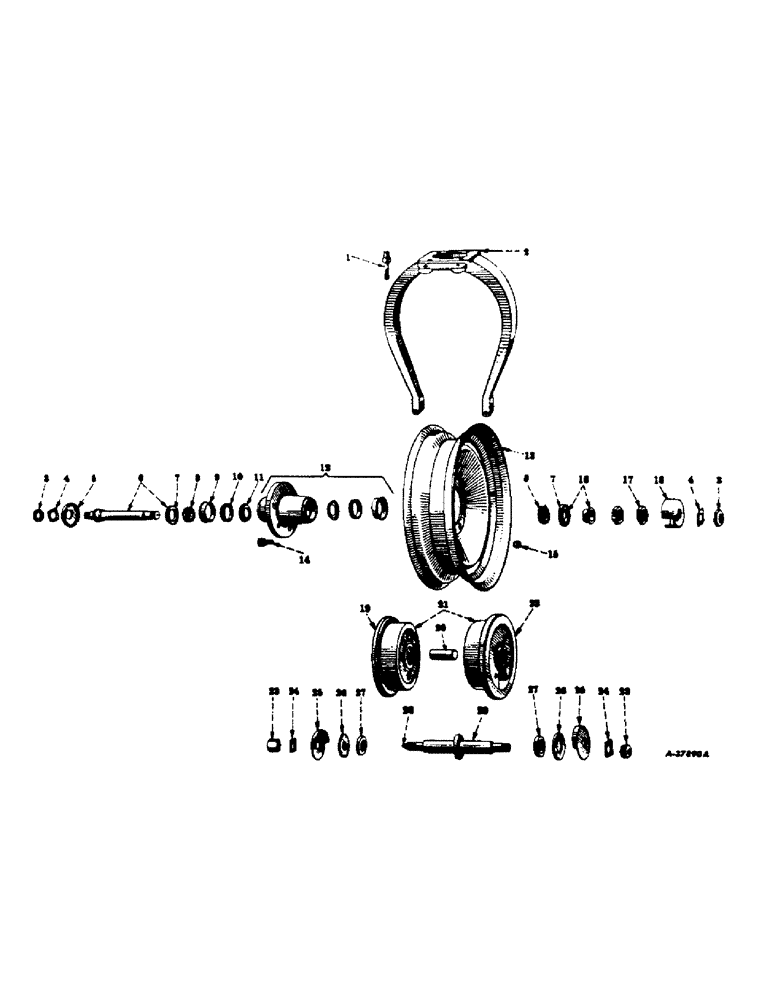

Запчасти Case IH 460 (143) - WHEELS, SINGLE FRONT WHEEL, FOR ALL FARMALL 460 SERIES TRACTORS EXCEPT HI-CLEAR MODELS (11) - WHEELS

a

PARTS ACCESSORY, single front wheel, pneumatic tire, for 7.50 x 16 tire, pneumatic tires and inner tubes should be ordered from the manufacturer

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

PARTS ACCESSORY, single front wheel, pneumatic tire, for 9.00 x 10 tire, pneumatic tires and inner tubes should be ordered from the manufacturer

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

Not Used

1шт.

2

8298DB

FORK front bolster, for 7.50 x 16 or 9.00 x 10 tire

1шт.

NUT, 1/2"

2шт.

SCREW, 1/2 x 3-1/2" hex-hd. cap

2шт.

SCREW, 3/4 NF x 1-1/2" hex-hd. cap

4шт.

WASHER, 1/2" lock

2шт.

WASHER, 3/4" lock

4шт.

3

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4" NF jam (2 for Unit A)

1шт.

4

38916D

LOCK WASHER

Front axle nut lock (2 for Unit A)

1шт.

5

351419R11

PROTECTOR

SHIELD front wheel hub, short (Unit A)

1шт.

6

351417R11

SPARE PART AXLE ASSEMBLY, front (Unit A)

1шт.

7

48539DA

PACKING RING

OIL SEAL, front axle (2 for Unit A)

1шт.

8

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

Front wheel bearing (2 for Unit A)

1шт.

9

48548D

WASHER

Front wheel oil seal (2 for Unit A)

1шт.

10

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

Front wheel bearing (2 for Unit A)

1шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

Front wheel bearing grease (2 for Unit A)

1шт.

12

351398R21

SPARE PART ASSEMBLY front wheel (2 for Unit A), Composed of

1шт.

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

2шт.

351398R2

HUB (NSS)

1шт.

48548D

WASHER

2шт.

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

2шт.

13

354195R91

WHEEL

Front, for pneumatic tire 7.50 x 16, (Unit A)

1шт.

14

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

Front wheel mounting (6 for Unit A)

1шт.

15

351793R1

WHEEL NUT

Front wheel mounting (6 for Unit A)

1шт.

16

351416R11

SPARE PART SPACER ASSEMBLY front wheel bearing (Unit A)

1шт.

17

351418R1

BEARING LOCK NUT

Front wheel bearing adjusting (2 for Unit A)

1шт.

18

351420R11

PROTECTOR

SPARE PART SHIELD front wheel hub, long (Unit A)

1шт.

19

5677DAX

SPARE PART With bushing, 359341R1 and oil seal, 273581R91 assembly, front male half, for pneumatic tire 9.00 x 10, (Unit B)

1шт.

NUT, 5/8"

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8 x 7" hex-hd. cap

4шт.

WASHER lock, 5/8"

4шт.

20

359341R1

SPARE PART Front wheel (2 for Unit B)

1шт.

21

42989DA

SPARE PART WHEEL ASSEMBLY front, for pneumatic tire 9.00 x 10 (Unit B) Composed of

1шт.

102639

NUT,5/8"-11, G5

5/8"-11, G5

4шт.

16154R1

SCREW

4шт.

103325

LOCK WASHER,5/8"

5/8"

4шт.

5677DAX

SPARE PART

1шт.

5678DAX

SPARE PART

1шт.

22

5678DAX

SPARE PART With bushing, 359341R1 and oil seal, 273581R91 assembly, front female half, for pneumatic tire 9.00 x 10 (Unit B)

1шт.

23

218408

NUT

1-1/4" NF (2 for Unit B)

1шт.

24

38916D

LOCK WASHER

Front axle nut lock (2 for Unit B)

1шт.

25

38915DX

SPARE PART Front wheel hub (2 for Unit B)

1шт.

26

38914D

SPARE PART WASHER front wheel felt (2 for Unit B)

1шт.

27

273581R91

SEAL

Oil , front wheel (2 for Unit B)

1шт.

28

126132

FITTING

1/4" straight lubrication , optional with 273349 (Unit B)

1шт.

28

219-23

LUBE NIPPLE,1/4" - 18 NPTF

1/4" straight lubrication, optional with 126132 (Unit B)

1шт.

29

38917DA

SPARE PART AXLE front (Unit B)

1шт.

371417R92

BEARING

KIT, applications: IH tractor models 460, 504, 544, 2504, 2544, 606, 2606, 656, 2656, consists of the following seven parts

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

369860R1

GASKET,0.79mm Thk

1шт.

48539DA

PACKING RING

SEAL

1шт.

48548D

WASHER

1шт.
