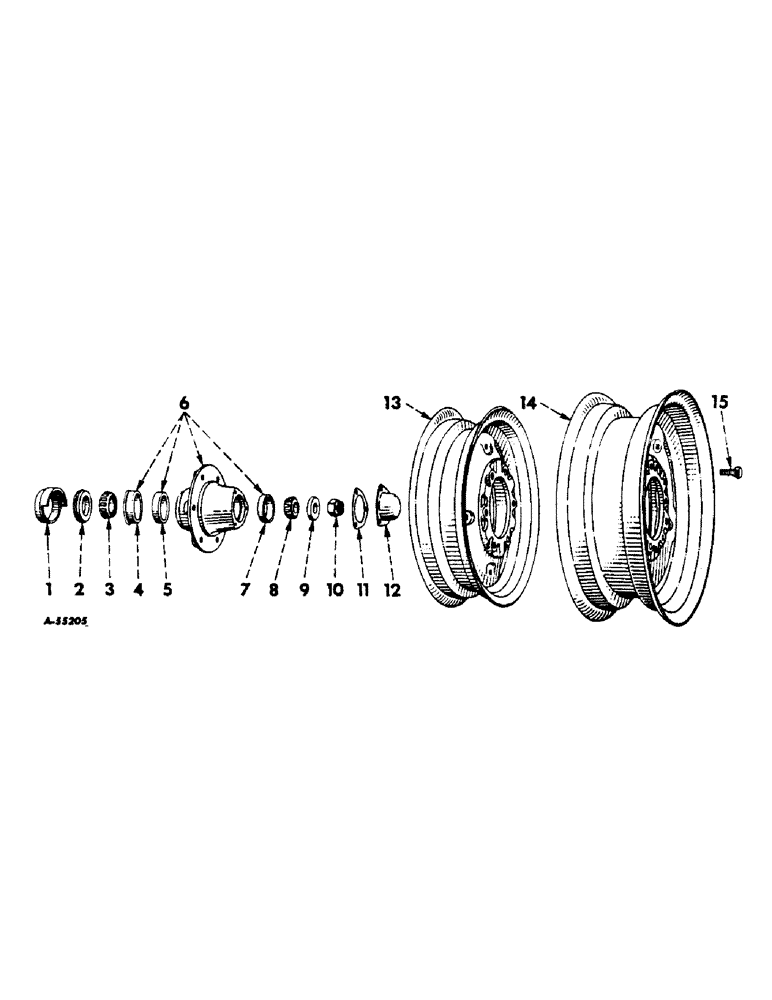

Запчасти Case IH 460 (141) - WHEELS, FRONT WHEELS, FARMALL 460 SERIES (11) - WHEELS
№
Артикул
Название
Примечание
Количество
a
Service parts for tractors except Hi-Clear
1шт.
Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.
1шт.
b
Service parts for Hi-Clear tractors
1шт.
Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.
1шт.
1
48541D
SHIELD
Dust, front wheel (2 for Unit A)
1шт.
1
48701D
SHIELD
Dust, front wheel (2 for Unit B)
1шт.
2
48539DA
PACKING RING
SEAL oil, front wheel (2 for Unit A)
1шт.
2
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
Oil, front wheel (2 for Unit B)
1шт.
3
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
Front wheel inner bearing (2 for Unit A)
1шт.
3
G15215
ROLLER BEARING
Front wheel inner bearing (2 for Unit B)
1шт.
4
48548D
WASHER
Front wheel oil seal (2 for Unit A)
1шт.
4
48703D
RETAINER
Front wheel oil seal (2 for Unit B)
1шт.
5
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Front wheel inner (2 for Unit A)
1шт.
5
619387R1
BEARING CUP
Front wheel inner bearing (2 for Unit B)
1шт.
6
369858R11
HUB
ASSEMBLY, front wheel (2 for Unit A)
1шт.
6
370256R21
HUB
ASSEMBLY, front wheel (2 for Unit B)
1шт.
7
371883R1
BEARING CUP
Front wheel outer bearing (2 for Unit A)
1шт.
7
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
Front wheel outer (2 for Unit B)
1шт.
8
371882R91
ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W
ASSEMBLY, front wheel outer (2 for Unit A)
1шт.
8
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
ASSEMBLY, front wheel outer bearing (2 for Unit B)
1шт.
9
369857R1
WASHER,20.7mm ID x 31.75mm OD x 3mm Thk
Front wheel outer bearing retainer (2 for Unit A)
1шт.
9
370255R1
WASHER
Front wheel outer bearing retainer (2 for Unit B)
1шт.
10
427639
SLOTTED NUT,3/4"-16, G5
3/4" sltd-hex, front wheel, (2 for Unit A)
1шт.
PIN, 5/32 x 1-3/8" cotter
2шт.
10
361138R1
NUT
Front wheel (2 for Unit B)
1шт.
11
369860R1
GASKET,0.79mm Thk
GASKET, front wheel hub cap
1шт.
12
369859R1
CAP
Front wheel hub
1шт.
SCREW, 5/16 x 5/8" hex-hd cap
6шт.
WASHER, 5/16" lock
6шт.
13
361714R91
WHEEL ASSY.
Front, disc-type 4.25KA-D-16 rim for 6.00-16 or 6.50-16 tire (2 for Unit A)
1шт.
13
371735R2
RIM
WHEEL WHEEL ASSEMBLY, front, disc-type 6 lb-15 DC rim for 750 L-15 tire (2 for Unit A)
1шт.
14
370778R91
SPARE PART ASSEMBLY, front, disc-type 4.50 E-20 DC rim for 6.00-20 tire (2 for Unit B)
1шт.
15
51485D
BOLT,9/16" - 18 x 1 7/32"
Front wheel mounting
12шт.
371417R91
BEARING
PACKAGE, front wheel bearing overhaul, Consists of one each of Ref. 2 - 5, 7, 8 and 11 (2 for Unit A)
1шт.
371418R91
PACKAGE
Front wheel bearing overhaul, Consists of one each of Ref. 2 - 5, 7, 8 and 11 (2 for Unit B)
1шт.
371417R92
BEARING
KIT, applications: IH tractor models 460, 504, 544, 2504, 2544, 606, 2606, 656 and 2656, consists of the following seven parts
1шт.
371882R91
ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W
1шт.
371883R1
BEARING CUP
1шт.
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
1шт.
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
1шт.
369860R1
GASKET,0.79mm Thk
1шт.
48539DA
PACKING RING
SEAL
1шт.
48548D
WASHER
1шт.
371418R92
BEARING SET,34.93mm ID x 77.79mm OD
KIT, applications: IH tractor models 460, 560, 660, 544, 644, 2544, 06 series, 56 series, 66 series, 86 series, 30 series and 50 series, consists of the following seven parts
1шт.
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
1шт.
G15215
ROLLER BEARING
1шт.
618024R1
BEARING CUP,65.113mm OD x 13.97mm W
1шт.
619387R1
BEARING CUP
1шт.
369860R1
GASKET,0.79mm Thk
1шт.
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
1шт.
48703D
RETAINER
1шт.
Выбрано товаров: 51
