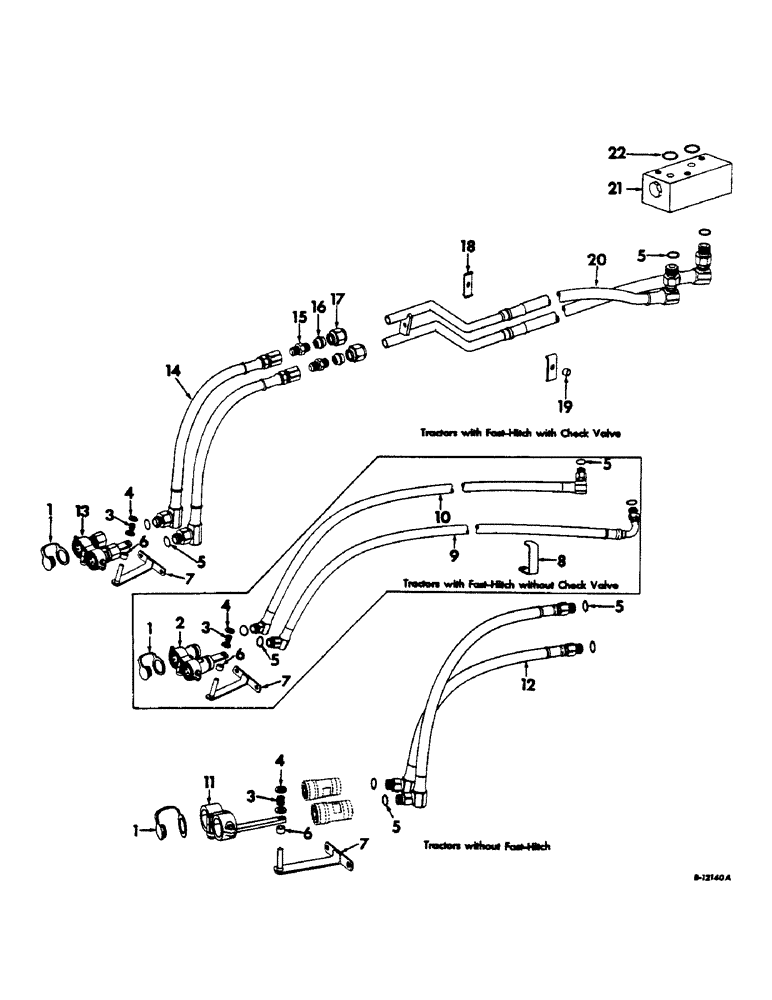

Запчасти Case IH 460 (174) - HYDRAULIC SYSTEM, REMOTE CONTROL ADAPTER, FARMALL 460 SERIES (07) - HYDRAULIC SYSTEM

a

372540R91

ADAPTER

ADAPTION

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

372541R91

ADAPTER

ADAPTION

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

c

376111R91

SPARE PART

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

373220R1

PLUG

1шт.

2

374777R91

SPARE PART

1шт.

3

353213R2

SPRING

break-away coupling bracket

1шт.

4

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16" x .095 ga.

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose (3/4 x 15/16 x 3/32")

4шт.

6

23111H

SPARE PART break-away coupling

1шт.

7

365405R11

SPARE PART

1шт.

8

372591R1

SPARE PART hose support (Unit B)

1шт.

9

372582R91

HOSE,12.7mm ID x 1219.2mm L

1шт.

10

372583R91

HOSE

1шт.

11

371110R91

FRAME

1шт.

12

372581R91

HOSE

1шт.

13

377936R92

SPARE PART

1шт.

14

376124R91

HOSE

1шт.

15

376123R1

SPARE PART

1шт.

16

265464R1

SLEEVE

tube fitting (2 for Unit C)

1шт.

17

265465R1

TUBE NUT

tube fitting (2 for Unit C)

1шт.

18

370136R1

SPARE PART

1шт.

19

66860D

WASHER

tube clamp (Unit C)

1шт.

20

376113R91

SPARE PART

1шт.

21

375688R91

SPARE PART

1шт.

22

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

376132R91

SPARE PART

1шт.

372583R91

HOSE

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

375688R91

SPARE PART

1шт.
