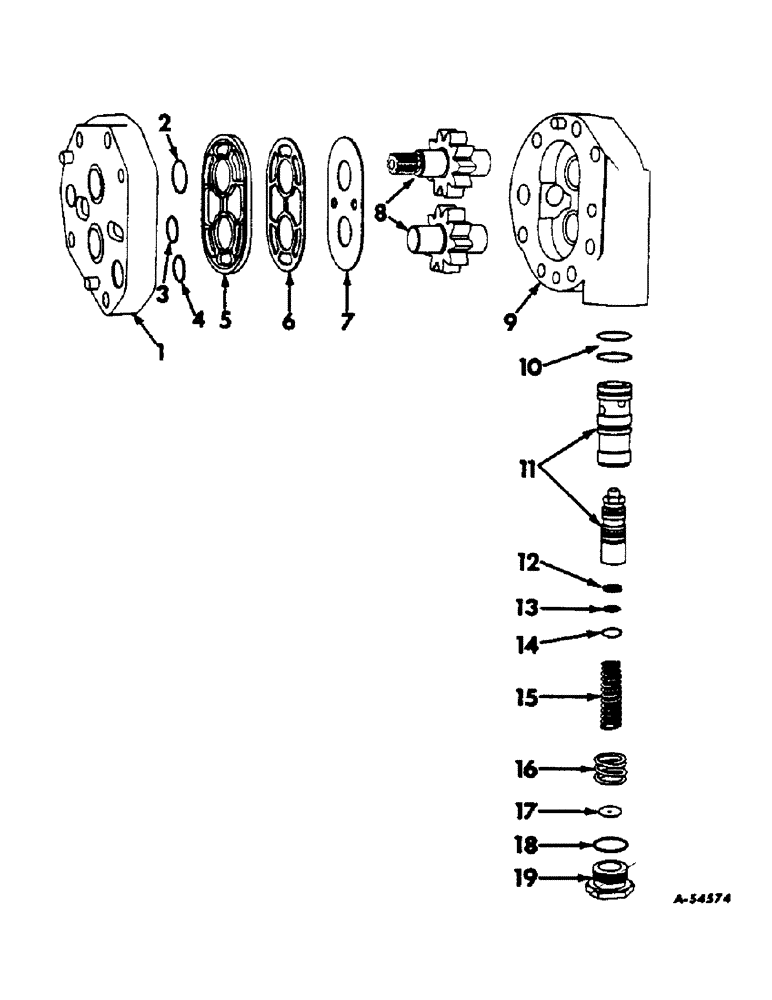

Запчасти Case IH 460 (168) - HYDRAULIC SYSTEM, HYDRAULIC POWER STEERING PUMP, CESSNA (07) - HYDRAULIC SYSTEM

371135R92

PUMP

Hydraulic power steering (Optional with 370924R92)

1шт.

1949250C1

REMAN-HYD PUMP

460 FARMALL GAS, 460 INTERNATIONAL DIESEL, 460 INTERNATIONAL GAS, All (1/58-12/63), 460 FARMALL DIESEL (1/58-12/60), All TRACTOR, Hydraulic power steering, CESSNA

1шт.

1949251C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

372429R91

SPARE PART Pump front

1шт.

For service replacement also order O-Ring and Gasket Package, 371550R92.

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING, pump cover (11/16 ID x 13/16" OD) (Not serviced separately - order Package, 371550R92)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, pump cover (1/2 ID x 5/8" OD) (Not serviced separately - order Package, 371550R92)

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, pump cover (1/2 ID x 5/8" OD) (Used only with Pump, 371135R91) (Not serviced separately - order Package, 371550R92)

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, pump cover (9/16 ID x 11/16" OD) (Used only with Pump, 371135R92) (Not serviced separately - order Package, 371550R92)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, diaphragm (Not serviced separately - order Package, 371550R92)

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET, back-up (Not serviced separately - order Package, 371550R92)

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM, pressure (Not serviced separately - order Package, 371550R92)

1шт.

8

371813R91

SPARE PART PACKAGE, drive and driven gear

1шт.

For service replacement also order O-Ring and Gasket Package, 371550R92.

1шт.

9

372428R91

SPARE PART pump

1шт.

For service replacement also order O-Ring and Gasket Package, 371550R92.

1шт.

444682

PLUG

1/16-27 automotive hex-soc. pipe

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING, flow control sleeve (Not serviced separately - order Package, 371550R92)

2шт.

11

371525R91

SPARE PART pump

1шт.

For service replacement also order O-Ring and Gasket Package, 371550R92.

1шт.

12

372239R1

SPARE PART Flow control filter, cloth

1шт.

13

371526R1

SPARE PART Flow control filter, brass

1шт.

14

372240R1

GASKET

Flow control filter screen

1шт.

15

371527R1

SPARE PART Flow control long

1шт.

16

371528R1

SPARE PART Flow control short

1шт.

17

371854R1

SPARE PART Flow control

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, flow control plug (Not serviced separately - order Package, 371550R92)

1шт.

19

371529R1

SPARE PART Flow control

1шт.

371550R92

O-RING KIT

PACKAGE, hydraulic pump O-ring and gasket service (Consists of -

1шт.

371551R1

DIAPHRAGM (NSS)

1шт.

371542R1

GASKET

1шт.

371553R1

GASKET (NSS)

1шт.

372240R1

GASKET

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

(NSS)

1шт.

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

(NSS)

3шт.

370920R1

O-RING,1/2" ID

(NSS)

2шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

(NSS)

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

371526R1

SPARE PART

1шт.

372239R1

SPARE PART

1шт.

371552R1

SEAL )

1шт.

NSS

1шт.
