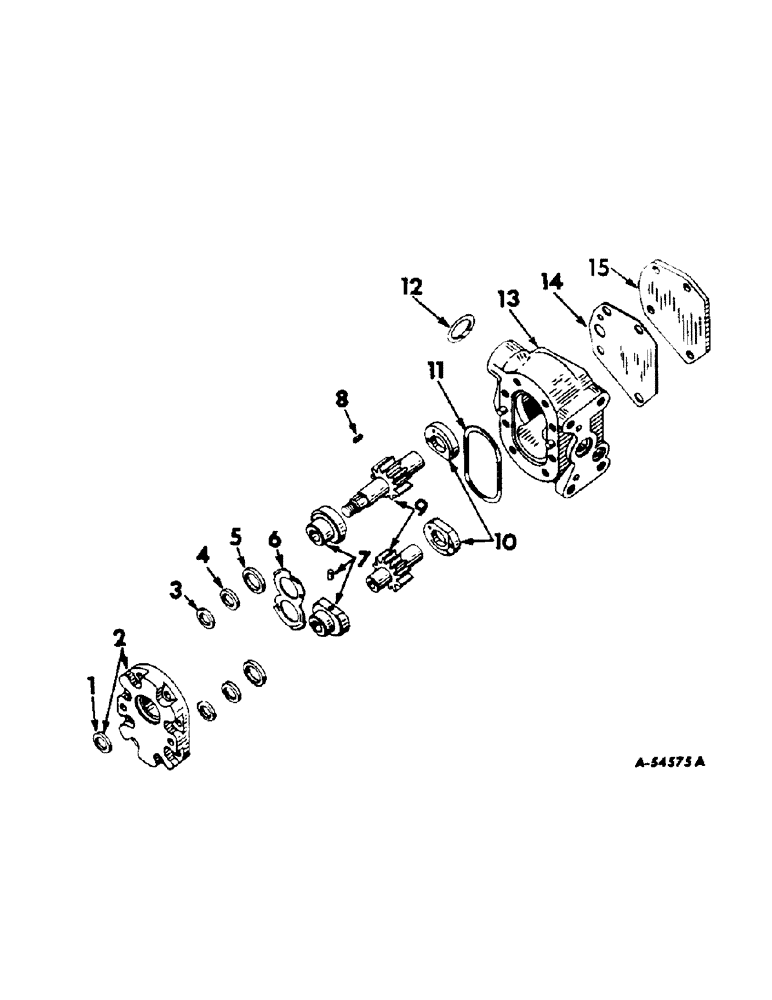

Запчасти Case IH 460 (167) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON (07) - HYDRAULIC SYSTEM

a

370878R92

PUMP

HYDRAULIC (12 GPM) order 374483R91

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

a

1949296C1

REMAN-HYD PUMP

Reman For New PN 370878R92

1шт.

a

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

b

370880R91

PUMP

HYDRAULIC (17 GPM) optional with 373966R91

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

1949292C1

REMAN-HYD PUMP

Reman For New PN 370880R91

1шт.

b

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

c

374483R91

HYDRAULIC PUMP

(12 GPM) optional with 373964R91

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

373157R91

OIL SEAL

Pump shaft

1шт.

2

272765R91

SPARE PART (Unit A)

1шт.

2

374542R91

SPARE PART (Units B and C)

1шт.

3

WASHER, (with split) order PACKAGE, 371549R91 (NSS) (Unit A)

2шт.

3

WASHER, (without split) order PACKAGE, 371549R91 (NSS) (Unit B and C)

2шт.

4

O-RING, order PACKAGE, 371549R91 (NSS)

2шт.

5

374543R1

RETAINER

(Units B and C)

2шт.

6

371530R1

SPRING

Pressure plate

1шт.

7

371807R91

BEARING

PACKAGE, pressure bearing

1шт.

For service replacement, also order O-RING and GASKET PACKAGE, 371549R92.

1шт.

7

1949296C1

REMAN-HYD PUMP

Reman For New PN 371807R91

1шт.

7

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

106750

KEY

NO. 6 Woodruff (used only with drive gear having half-round slot) (Unit A)

1шт.

8

370942R1

KEY

pump drive gear

1шт.

9

371804R91

SPARE PART (also order KEY, 370942R1 when servicing drive gear having half-round slot for key) (Unit A and C)

1шт.

For service replacement, also order O-RING and GASKET PACKAGE, 371549R92.

1шт.

9

371805R91

SPARE PART (Unit B)

1шт.

For service replacement, also order O-RING and GASKET PACKAGE, 371549R92.

1шт.

10

371809R91

SPARE PART (Unit A)

1шт.

10

371810R91

SPARE PART (Units B and C)

1шт.

11

O-RING, order PACKAGE, 371549R92 (NSS)

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

13

372766R91

SPARE PART (Unit A)

1шт.

For service replacement, also order O-RING and GASKET PACKAGE, 371549R92.

1шт.

13

374547R91

SPARE PART (Unit C)

1шт.

For service replacement, also order O-RING and GASKET PACKAGE, 371549R92.

1шт.

14

GASKET, order PACKAGE 371549R92 (NSS)

1шт.

15

371532R1

SPARE PART Implement pump rear

1шт.

371549R92

GASKET

1шт.

371547R1

GASKET(NSS)

1шт.

373157R91

OIL SEAL

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

(NSS)

1шт.

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

1шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

(NSS)

2шт.

371548R1

WASHER (NSS)

2шт.

374541R1

WASHER )

2шт.

NSS

1шт.
