(160) - HYDRAULIC SYSTEM, HYDRA-TOUCH VALVE COLUMNS, COVERS & STEERING SHAFT SUPPORT

Запчасти Case IH 460 (160) - HYDRAULIC SYSTEM, HYDRA-TOUCH VALVE COLUMNS, COVERS & STEERING SHAFT SUPPORT (07) - HYDRAULIC SYSTEM

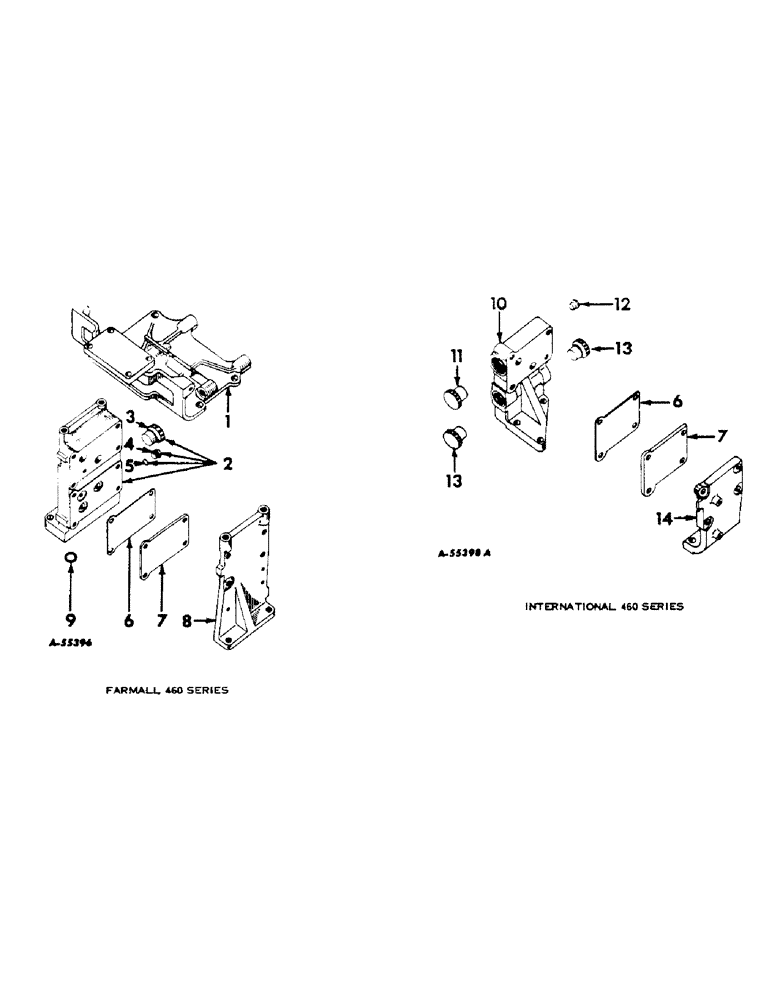

Схема запчастей Case IH 460 - (160) - HYDRAULIC SYSTEM, HYDRA-TOUCH VALVE COLUMNS, COVERS & STEERING SHAFT SUPPORT (07) - HYDRAULIC SYSTEM
12
14
1
5
6
4
7
6
7
13
8
11
2
3
10
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

369660R1

SPARE PART Steering shaft housing, Farmall

1шт.

SCREW, 1/2 x 1-1/2" hex-hd. cap, Farmall

4шт.

WASHER, 1/2" lock, Farmall

4шт.

2

373164R11

SPARE PART LH valve mounting (Tractors with cotton picker), Farmall

1шт.

2

369903R11

SPARE PART LH valve mounting, Farmall

1шт.

SCREW, 7/16 x 4-1/4" hex-hd. cap, Farmall

1шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap, Farmall

1шт.

3

370637R1

SPARE PART 7/8 OD tubing pressure port - aluminum, Farmall

1шт.

4

9410358

PLUG

Power steering return port, Farmall

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Power steering return port plug, Farmall

1шт.

6

369910R1

SPARE PART Mounting column cover (2 used on Farmall 460 Series), Farmall

1шт.

7

363089R1

SPARE PART LH mounting column cover (2 used on Farmall 460 Series), Farmall

1шт.

SCREW, 7/16 x 1/2" hex-hd. cap (8 used on Farmall 460 Series) (4 used on International 460 Series), Farmall

1шт.

8

369904R1

SPARE PART RH valve mounting, Farmall

1шт.

SCREW, 7/16 x 1-1/2" hex-hd. cap, Farmall

1шт.

SCREW, 7/16 x 4-1/4" hex-hd. cap, Farmall

1шт.

9

362796R1

O-RING,0.924" ID x 0.103" Width

LH valve mounting column (15/16 x 1-1/8 x 3/32"), International 460 series

1шт.

10

369899R11

SPARE PART LH valve mounting (Composed of -, International 460 series

1шт.

369899R1

COLUMN (NSS), International 460 series

1шт.

360623R1

PLUG (NSS), International 460 series

1шт.

369911R1

SPARE PART 460 series

1шт.

370637R1

SPARE PART International, 460 series

2шт.

374239R1

SPARE PART International, 460 series

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap, International, 460 series

3шт.

11

369911R1

SPARE PART 1" OD tubing return port - aluminum, International, 460 series

1шт.

12

374239R1

SPARE PART 3/8" OD tubing return port-aluminum, International, 460 series

1шт.

13

370637R1

SPARE PART 7/8" OD tubing pressure port-aluminum, International, 460 series

2шт.

14

369900R1

SPARE PART RH valve mounting, International, 460 series

1шт.

SCREW, 3/8 x 1-5/8" hex-hd. cap, International, 460 series

2шт.
