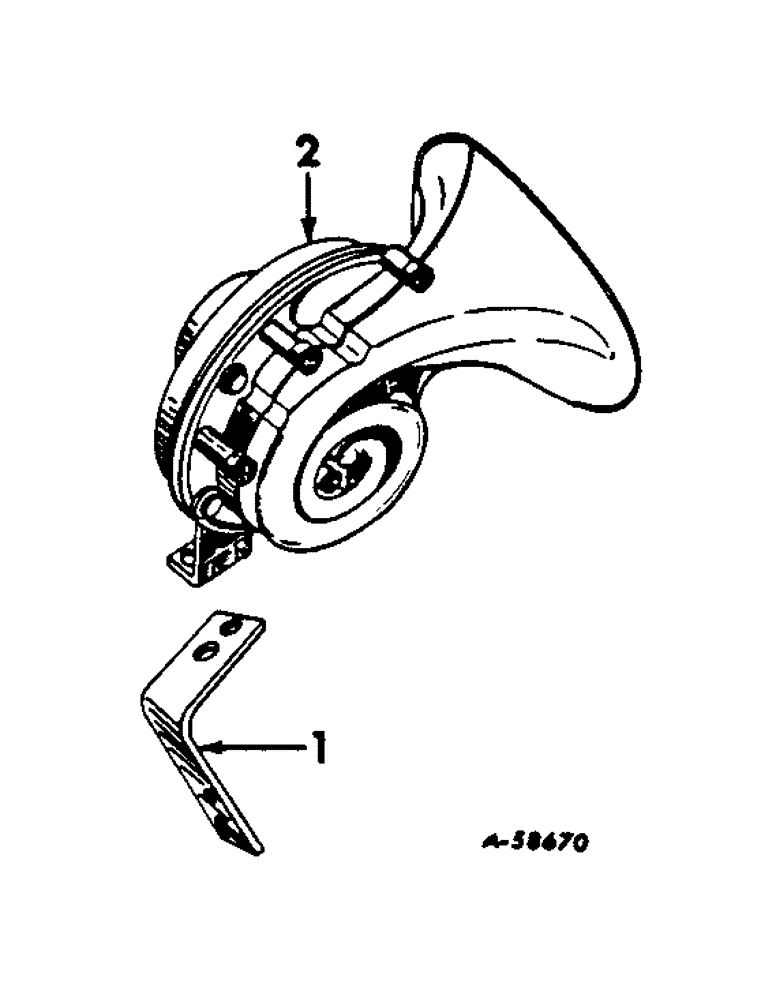

Запчасти Case IH 460 (096) - ELECTRICAL SYSTEM, ELECTRIC HORN (06) - ELECTRICAL SYSTEMS

1

372043R1

SPARE PART horn mounting extension (International 460 Series, Serial Range: 501-4141)

1шт.

NUT, 5/16"

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

WASHER, 5/16" lock

1шт.

1

373624R1

SPARE PART horn mounting extension (International 460 Series 4142 up)

1шт.

NUT, 1/4NF

2шт.

SCREW, 1/4NF x 5/8" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

2

166166R91

HORN

1шт.

NUT, 5/16"

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

WASHER, 5/16" lock

2шт.

WASHER, 11/32 x 11/16" X 16 ga.

1шт.

371968R91

SPARE PART electric horn (Consists of -

1шт.

The following must also be ordered if tractor cable harness does not have integral dark green horn cable in it.

1шт.

373624R1

SPARE PART

1шт.

359380R91

CABLE

1шт.

371487R1

CYLINDER END CAP

1шт.

362126R1

CLIP

1шт.

366460R1

CABLE CLIP

1шт.

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

1шт.

166166R91

HORN

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

109084

NUT,1/4"-20, G5

1/4"-20, G5

3шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

373611R91

IGNITION SWITCH

1шт.

103319

LOCK WASHER,1/4"

1/4"

3шт.

103320

LOCK WASHER,5/16"

5/16"

1шт.

95-11034

WASHER,1/4"

1шт.

16558R1

WASHER

1шт.

372051R91

SPARE PART horn switch to horn (International 460 Series)

1шт.

372052R91

SPARE PART horn switch to horn (Farmall 460 Series)

1шт.
