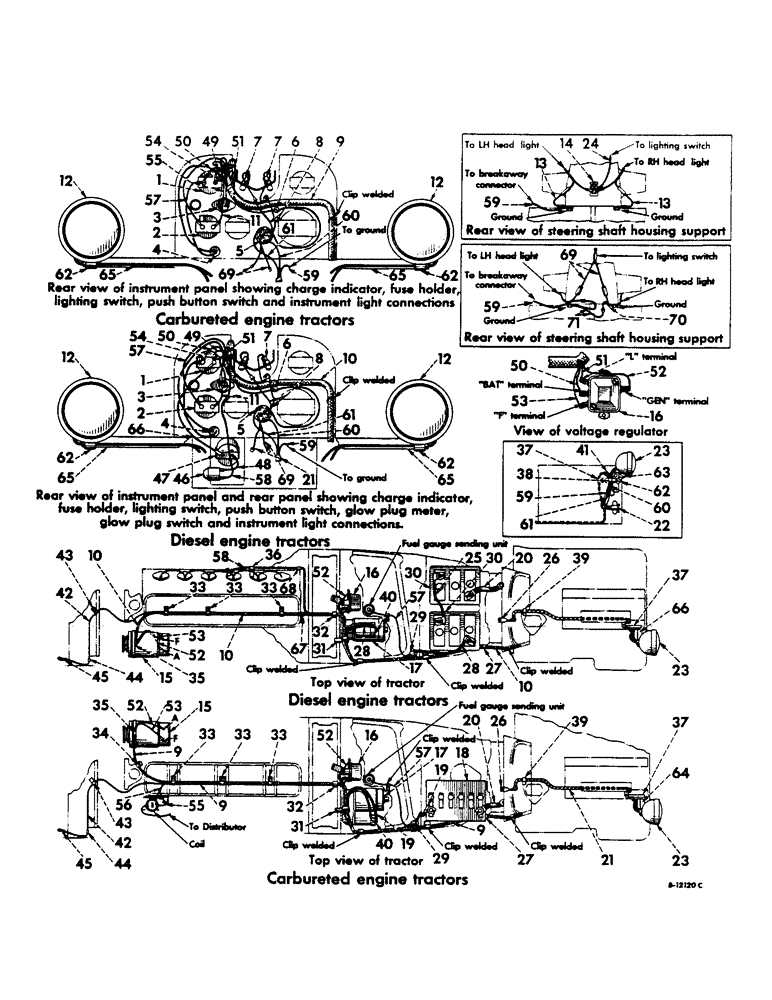

Запчасти Case IH 460 (086) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL 460 501 TO 23290 (06) - ELECTRICAL SYSTEMS

a

Service parts for Carbureted Engine

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

Service parts for Diesel Enginendte

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

360053R92

INDICATOR

charge

1шт.

2

369607R92

GAUGE

1шт.

3

366316R91

SWITCH

1шт.

3

366317R91

IGNITION SWITCH

1шт.

4

370375R91

IGNITION SWITCH

SPARE PART ignition

1шт.

5

371465R91

KIT

lighting

1шт.

6

370311R91

FUSE CARTRIDGE

fuse

1шт.

10815V

FUSE

10 amp.

1шт.

7

372546R91

CABLE

instrument light

1шт.

8

372545R91

SPARE PART

1шт.

9

370385R92

HARNESS

cable (Unit A)

1шт.

10

370390R91

SPARE PART

1шт.

11

357929R92

ELECTRIC CABLE

1шт.

13

370387R91

CABLE

1шт.

14

42915D

BLOCK

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

16

369600R91

REGULATOR

1шт.

18

368879R91

BATTERY

1шт.

18

365861R91

SPARE PART

1шт.

19

372547R91

SPARE PART

1шт.

19

374907R91

CABLE

1шт.

19

370388R91

CABLE

1шт.

19

374905R91

CABLE

1шт.

356062R91

BOLT

terminal

1шт.

20

370389R91

CABLE

1шт.

356062R91

BOLT

terminal

1шт.

21

370386R91

HARNESS

1шт.

22

370378R91

SOCKET

1шт.

24

363841R91

SPARE PART

1шт.

25

370394R91

CABLE

1шт.

26

370740R91

1шт.

27

362123R1

CLIP

1шт.

28

370392R91

CABLE

1шт.

356062R91

BOLT

terminal

1шт.

29

370383R1

CLIP

1шт.

30

370405R91

DRY BATTERY

1шт.

31

370384R1

CLIP

1шт.

32

370383R1

CLIP

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

33

362126R1

CLIP

1шт.

34

370383R1

CLIP

1шт.

35

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

36

263514R91

CLIP

1шт.

37

351913R1

SPARE PART

1шт.

38

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

39

355097R1

SPARE PART

1шт.

40

364910R1

BOOT

solenoid terminal

1шт.

41

363846R1

GROMMET

rear light cable harness

1шт.

42

372052R91

SPARE PART horn switch to horn (Black)

1шт.

43

366460R1

CABLE CLIP

1шт.

44

362126R1

CLIP

1шт.

45

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

horn switch to horn cable

1шт.

46

373611R91

IGNITION SWITCH

1шт.

373612R1

CAP

dust

1шт.

47

370380R91

METER

glow plug

1шт.

48

375077R91

CABLE

1шт.

62

350920R1

CLAMP

CLAMP, headlight or rear light

3шт.

63

365503R1

SPACER

SPACER, headlight or rear light

3шт.

64

372377R11

SPARE PART

1шт.

64

370248R91

SPARE PART

1шт.

65

370249R1

SPARE PART POST, headlight

2шт.

66

370395R1

1шт.

67

358986R1

CABLE CLIP

1шт.

68

263717R91

CLIP

1шт.

69

372545R91

SPARE PART

1шт.

70

366460R1

CABLE CLIP

1шт.

71

374490R91

CABLE

1шт.

72

375066R91

CABLE

1шт.

73

376100R91

SPARE PART

1шт.
