Запчасти Case IH 460 (077) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM (06) - ELECTRICAL SYSTEMS

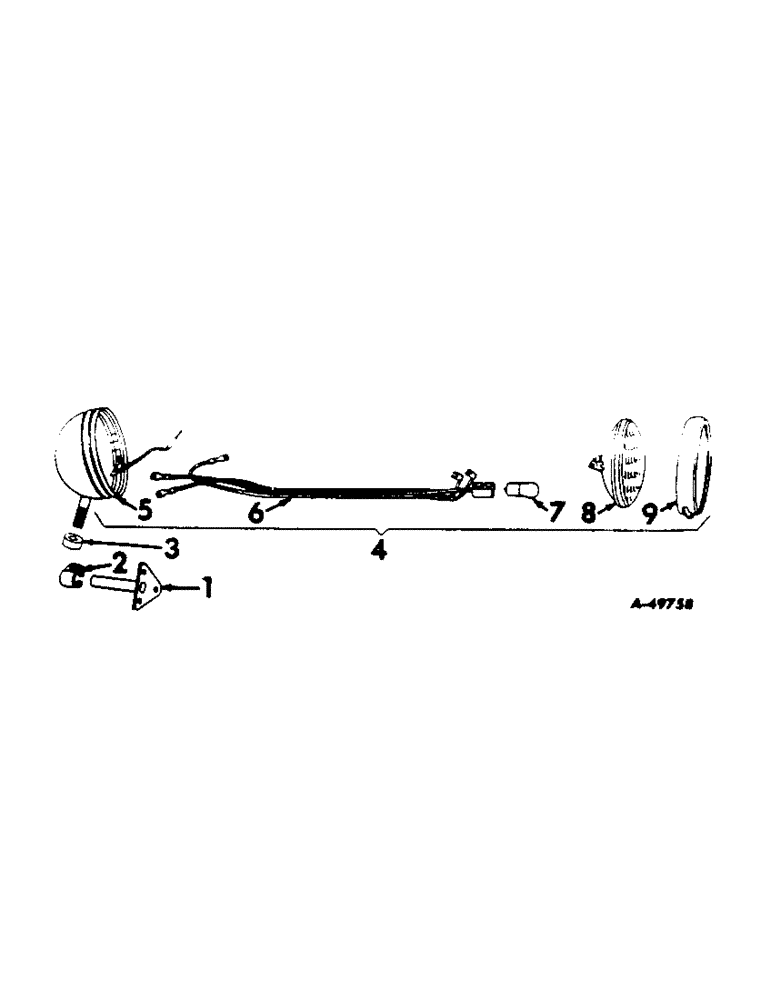

Схема запчастей Case IH 460 - (077) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM (06) - ELECTRICAL SYSTEMS
2
6
3
5
7
4
1
8
9

Артикул

Название

Примечание

Количество

371382R91

SPARE PART combination rear light and tail light (International 460 Series)

1шт.

1

66724DB

SPARE PART rear light

1шт.

NUT, 3/8"

3шт.

SCREW, 3/8 x 3/4" hex-hd. cap

3шт.

WASHER, 3/8" lock

3шт.

2

350920R1

CLAMP

rear light

1шт.

3

365503R1

SPACER

rear light

1шт.

4

374214R91

LAMP

combination (Dietz) (Optional with 374882R91)

1шт.

4

374882R91

LAMP

combination (Guide) (Optional with 374214R91)

1шт.

NUT, 1/2"

1шт.

5

BODY, rear light (Not serviced separately - order Light Assembly)

1шт.

6

371459R91

SPARE PART (Dietz)

1шт.

6

374885R91

SPARE PART (Guide)

1шт.

7

455490

BULB,C-6, #1003, 12V, .94W

No. 1003 - 12 Volt

1шт.

8

371461R91

LENS

sealed beam

1шт.

9

371450R91

BEZEL

Dietz

1шт.

365697R1

SPARE PART clamp screw moulding

1шт.

SCREW, No. 8 x 1-1/4" slt-fil-hd. mach.

1шт.

WASHER, No. 8 lock

1шт.

9

371451R91

MOLDING

Guide

1шт.

53526D

SCREW

moulding

1шт.

375376R1

RING

sealed beam unit (Used only if Sealed Beam Unit is loose in Light Body)

1шт.

Выбрано товаров: 22
