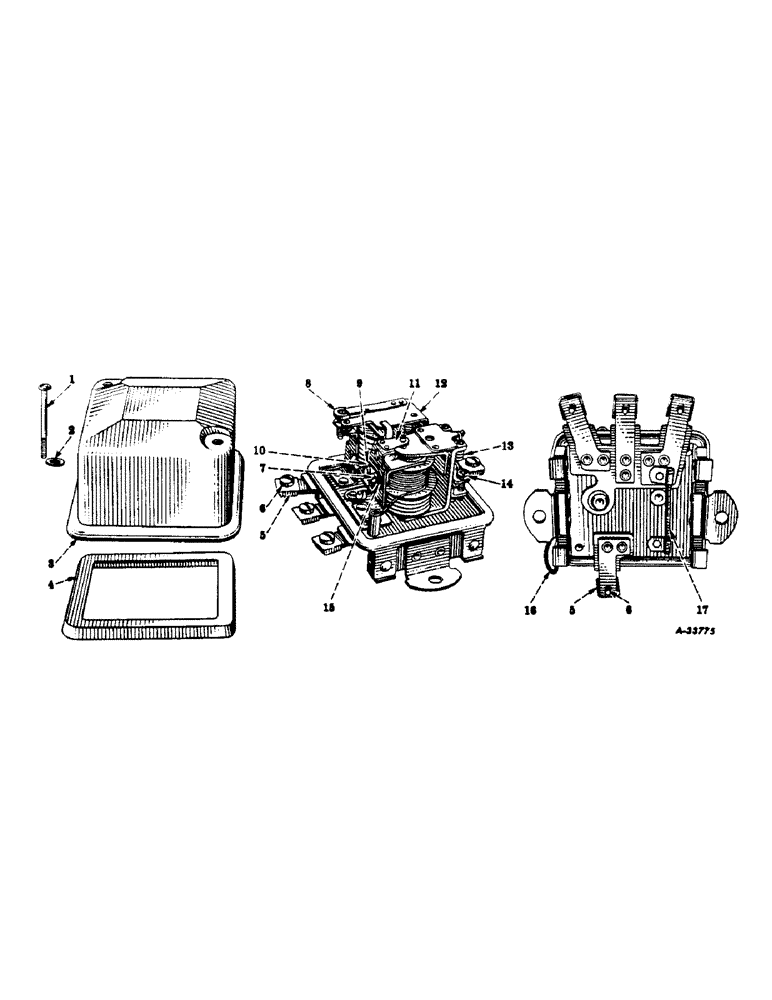

Запчасти Case IH 460 (073) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1118999

REGULATOR

voltage (12 Volt) (376122R91)

1шт.

1

1927982

SCREW, cover attaching

2шт.

2

1935031

WASHER, insulating cover attaching screw

2шт.

3

1927980

COVER

1шт.

4

1953902

GASKET, cover

1шт.

5

1868137

CLAMP, terminal

3шт.

6

1864099

SCREW

terminal

3шт.

7

1878516

SCREW

SCREW, current-voltage regulator contact attaching

4шт.

8

1912159

SCREW, adjusting cut-out relay armature

1шт.

9

1878507

WASHER, insulating current-voltage regulator contact attaching screw

2шт.

10

1878505

WASHER

current-voltage regulator contact attaching screw lock

2шт.

11

1878493

CONTACT AND SUPPORT, current-voltage regulator

1шт.

12

1939646

ARMATURE, cut-out relay

1шт.

1924764

SCREW W/WASHER ASSEMBLY, relay armature

2шт.

13

1912176

SPRING, current-voltage regulator armature

1шт.

14

1944590

SCREW, current-voltage regulator armature adjusting

1шт.

15

1922599

INSULATOR, current-voltage regulator contact attaching screw

1шт.

16

1927975

LEAD, ground

1шт.

17

1910174

RESISTOR, "F" terminal to ground (12 volt)

1шт.
