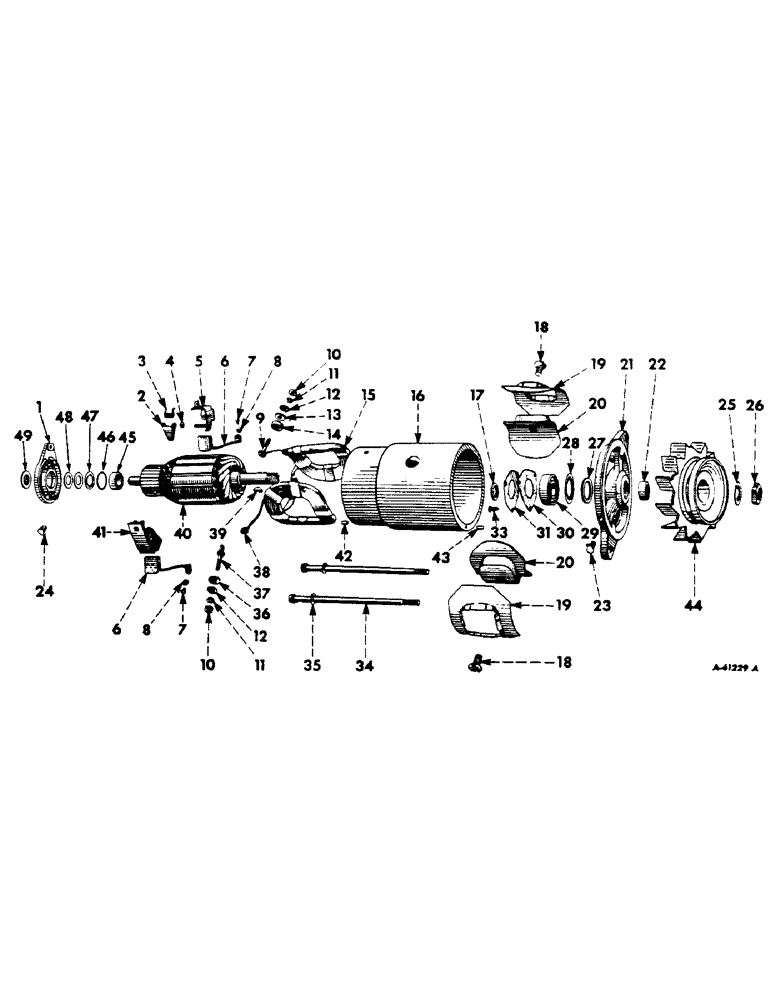

Запчасти Case IH 460 (070) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, HEAVY-DUTY (06) - ELECTRICAL SYSTEMS

a

1100391

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

b

1100392

1шт.

Letters of these units correspond with those shown following the description of the parts in the list and identifies the unit for which the part is used. Items without letters after the description indicate that the part is used for all units.

1шт.

1

1939183

TYRE/TIRE

1шт.

1929959

RING, SNAP

SPARE PART

1шт.

809062

SPARE PART

1шт.

1880641

OILER

1шт.

1948326

PLUG)

1шт.

2

1878183

ARM

brush

2шт.

3

1916324

VALVE SPRING

brush

2шт.

4

607893R1

WASHER

brush arm space

2шт.

5

1922288

HOLDER

brush ground

1шт.

225-14112

NUT,#12-24

No. 12 cd-pltd.

1шт.

132979

SPARE PART

1шт.

131184

CONNECTING LINK

No. 12 cd-pltd. lock

1шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

1шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

1шт.

9

1921860

STUD

terminal field

1шт.

10

121743

CHAIN,#12 - 24

No. 12 cd-pltd.

4шт.

11

1904661

LOCK WASHER

field terminal stud lock

4шт.

12

1881409

WASHER

terminal stud

2шт.

13

1858753

WASHER

terminal stud insulating

1шт.

14

1885090

BUSHING

field terminal insulating

1шт.

15

1927700

COIL

field (Unit A)

1шт.

15

1951491

COIL

field (Unit B)

1шт.

16

Not Serviced Separately

1шт.

17

809945

BUSHING

drive end space

1шт.

18

1843646

SCREW

pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1914618

SHOE, pole

2шт.

21

1871693

SPARE PART

1шт.

22

1858603

BUSHING

drive end space

1шт.

23

1880641

OILER

drive end

1шт.

823551

WICK, oiler

1шт.

24

1880641

OILER

commutator end

1шт.

25

1941978

WASHER

drive end shaft nut lock

1шт.

26

1911324

NUT

drive end shaft

1шт.

27

809961

FELT

drive end felt

1шт.

28

819104

WASHER

drive end felt retainer

1шт.

29

907503

BEARING

drive end

1шт.

30

1912008

FELT

drive end retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, LARGE drive end retainer

1шт.

33

1914580

SCREW

drive end retainer plate

3шт.

34

815018

BOLT, thru

2шт.

35

120638

LOCK WASHER

thru bolt lock

2шт.

36

1921362

BUSHING

1шт.

37

1921369

STUD

terminal armature

1шт.

38

200382

SPARE PART, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

#5, 1/8" x 5/8", HT

1шт.

40

1946903

SPARE PART

1шт.

41

1922289

HOLDER

brush insulated

1шт.

225-14112

NUT,#12-24

No. 12 cd-pltd.

1шт.

132979

SPARE PART

1шт.

131184

CONNECTING LINK

No. 12 cd-pltd. lock

1шт.

42

809062

SPARE PART commutator end dowel

1шт.

43

809593

PIN

drive end dowel

1шт.

44

1943516

PULLEY

generator

1шт.

45

904751

BEARING

commutator end

1шт.

46

1929959

RING, SNAP

SPARE PART commutator end bearing

1шт.

47

809960

RETAINER, commutator end felt

1шт.

48

815042

WASHER, commutator end felt

2шт.

49

1948326

PLUG, commutator end bearing well

1шт.
