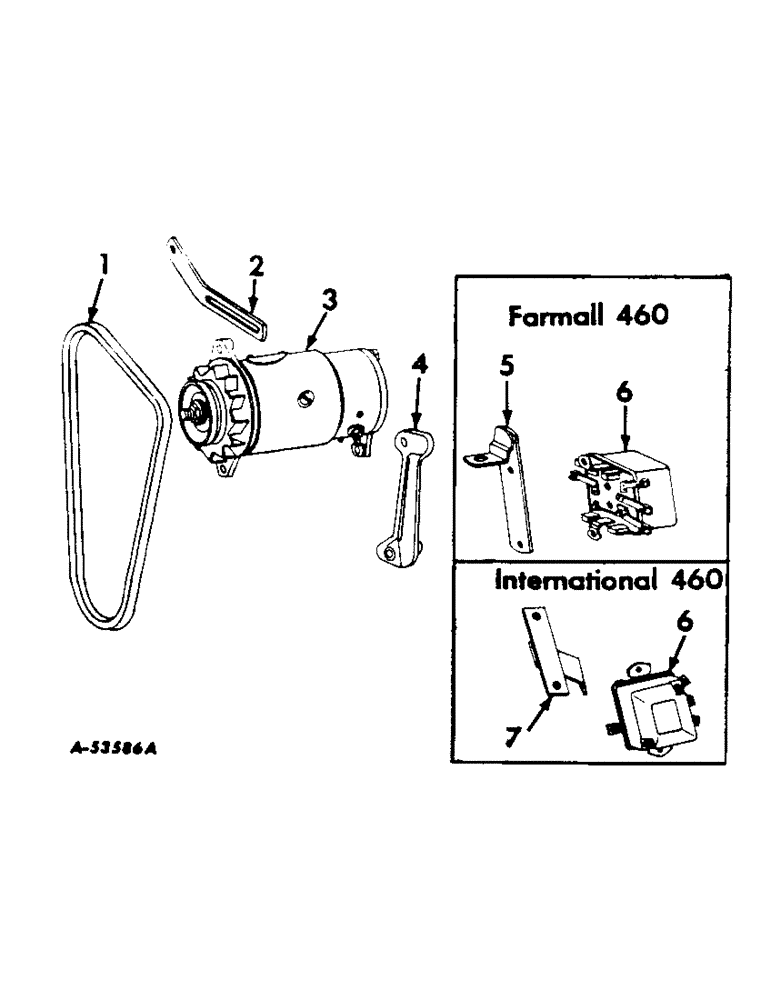

Запчасти Case IH 460 (068) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

316250R1

BELT,0.50" W

Generator and water pump (F-460)

1шт.

1

385738R1

V-BELT,0.50" W x 49.00" L

Generator and water pump (I-464)

1шт.

2

304018R1

BRACE

generator

1шт.

*

NUT, 7/16"

1шт.

*

SCREW, 5/16 x 7/8" hex-hd. cap

1шт.

*

WASHER, 5/16" lock

1шт.

*

WASHER, 7/16" lock

1шт.

280185R1

SPACER

generator brace

1шт.

3

1100356

SPARE PART (Regular duty) (For components see list of parts under details of "Generator") (303964R92)

1шт.

3

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

3

104450A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 20 ampere

1шт.

3

1100392

GENERATOR ASSEMBLY (Heavy duty) (For components see list of parts under details of "Generator") (375054R91)

1шт.

3

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

3

104018A1C

CORE-GENERATOR

Return Number

1шт.

*

NUT, 5/16" NF

1шт.

*

SCREW, 5/16 x 1-1/8" hex-hd. cap

1шт.

*

SCREW, 5/16 NF x 1-1/2" hex-hd. cap

1шт.

*

WASHER, 5/16" lock

2шт.

4

304017R1

SPARE PART generator rear mounting

1шт.

*

SCREW, 5/16 x 1" hex-hd. cap

2шт.

*

WASHER, 5/16" lock

2шт.

280185R1

SPACER

generator rear mounting bracket

1шт.

5

370141R11

SPARE PART voltage regulator mounting

1шт.

6

1118999

REGULATOR

voltage (For components see list of parts under details of "Voltage Regulator") (376122R91)

1шт.

*

SCREW, 1/4 NF x 1/2" hex-hd. cap

2шт.

*

WASHER, 1/4" lock

2шт.

7

369605R11

SPARE PART voltage regulator mounting

1шт.
