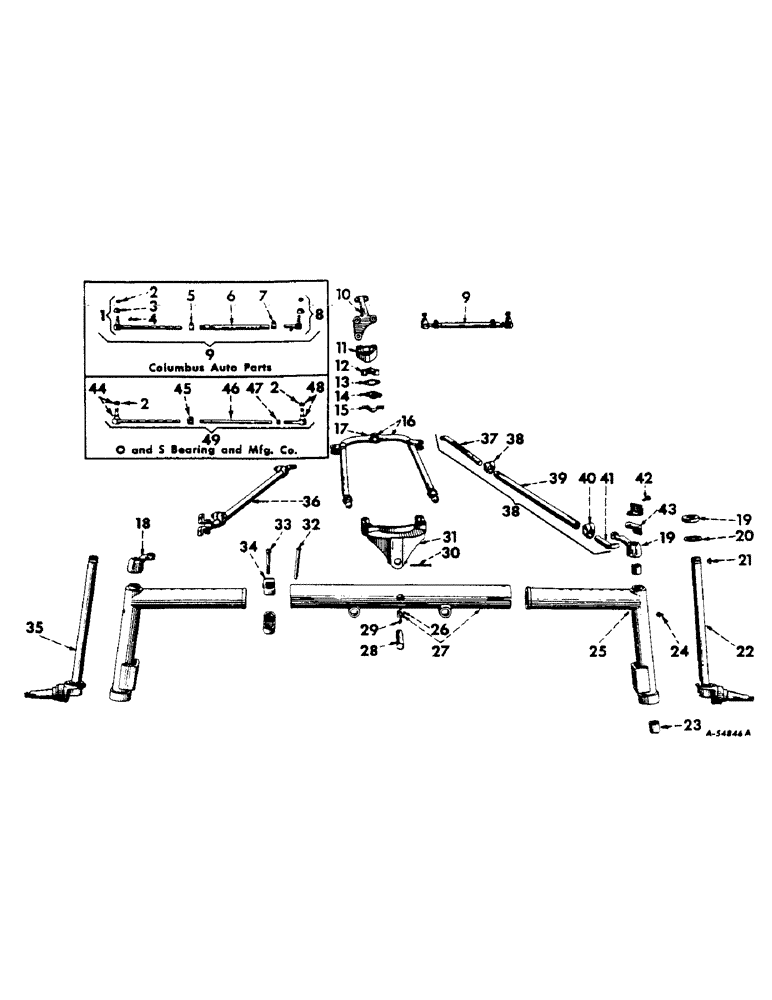

Запчасти Case IH 460 (133) - FRONT AXLE, ADJUSTABLE FRONT AXLE, LOWER BOLSTER, STAY ROD & CONNECTIONS (04) - FRONT AXLE
№
Артикул
Название
Примечание
Количество
1
359984R91
ROD
END ASSEMBLY, tie rod (Adjustable) (Composed of -
2шт.
359982R1
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
359983R1
NUT
1шт.
108643
COTTER PIN,5/32" x 1 3/8"
5/32" x 1 3/8"
1шт.
2
374701R1
NUT
Tie rod end (O and S Bearing and Mfg. Co.) (Optional with 359983R1)
4шт.
2
359983R1
NUT
Tie rod end (Columbus Auto Parts) (Optional with 374701R1)
4шт.
PIN, 5/32 x 1-3/8" cotter
4шт.
3
359982R1
COVER
Tie rod end dust
4шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
(Optional with 138322H) 1/8"-27 x .66 lg
4шт.
5
359986R1
CLAMP
Tie rod (Tube adjustable end)
2шт.
NUT, 1/2" NF
2шт.
SCREW, 1/2" NF x 2" hex-hd. cap
2шт.
WASHER, 1/2" external-tooth lock
2шт.
6
359980R1
TUBE
Tie rod
2шт.
7
359985R1
CLAMP
Tie rod (Tube threaded end)
2шт.
NUT, 1/2" NF
2шт.
SCREW, 1/2" NF x 2" hex-hd. cap
2шт.
WASHER, 1/2" external-tooth lock
2шт.
8
359981R91
END
ASSEMBLY, tie rod (Threaded) (Composed of -
2шт.
359982R1
COVER
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
359983R1
NUT
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Split (Cotter), 1/8" x 1 1/4"
1шт.
9
359569R91
SPARE PART TIE ROD, assembly (Optional with 375615R91) (Composed of -
2шт.
359985R1
CLAMP
1шт.
359986R1
CLAMP
1шт.
359981R91
END
1шт.
359984R91
ROD
END
1шт.
25-118
NUT,1/2"-20, G5
2шт.
181435
BOLT,Hex, 1/2" - 20 x 2", Gr 5
SCREW
2шт.
359980R1
TUBE
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
Ext Tooth, 1/2"
2шт.
10
358970R1
ARM
Steering gear
1шт.
SCREW, 3/4 x 1-1/2" hex-hd. cap
4шт.
11
370730R1
SPACER
SPARE PART Stay rod ball socket
1шт.
12
365459R1
SOCKET
Stay rod ball
1шт.
370727R1
BOLT,Hex, 5/8" x 3 3/4"
SCREW, 5/8 x 3-3/4" hex-hd. cap
1шт.
13
365457R1
SHIM
Stay rod ball socket cap
1шт.
14
365456R1
CAP
Stay rod ball socket
1шт.
370729R1
SPARE PART SCREW, 5/8 x 6-1/2" hex-hd. cap
2шт.
15
365458R1
CLAMP
PLATE, stay rod ball socket cap lock
1шт.
16
370725R11
SPARE PART STAY ROD ASSEMBLY
1шт.
NUT, 1-3/8" NF jam
2шт.
WASHER, 1-3/8" light lock
2шт.
17
10546D
BALL
Stay rod
1шт.
18
358971R1
SPARE PART Steering knuckle
2шт.
NUT, 5/8" NF
2шт.
SCREW, 5/8" NF x 3" hex-hd. cap
2шт.
19
369131R91
THRUST BEARING
Steering knuckle pivot thrust
2шт.
20
15943DA
SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk
Steering knuckle pivot felt
2шт.
21
40093D
WOODRUFF KEY,#127, 1/4" x 2 1/8", HT
KEY, #127 alloy-stl.
2шт.
22
370724R91
SPARE PART ASSEMBLY, RH steering (Composed of -
1шт.
370367R1
KNUCKLE
1шт.
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
OIL
1шт.
358966R1
PIN (NSS)
1шт.
48701D
SHIELD
1шт.
23
358958R2
BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L
Steering knuckle pivot pin
4шт.
24
125617
LUBE NIPPLE,3/16" x .61 lg, Drive
FITTING, 1/8" straight drive type lubrication (Optional with 110161)
2шт.
24
110161
FITTING, 1/8" straight drive type lubrication (Optional with 125617)
2шт.
25
370719R11
EXTENSION
W/TWO BUSHINGS, 358958R2 Assembly, front axle
2шт.
26
48841D
BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L
Front axle pivot pin
2шт.
27
358976R11
FRONT AXLE
W/TWO BUSHINGS, 48841D Assembly, front
1шт.
28
358978R1
PIN
Front axle pivot
1шт.
29
219-8
LUBE NIPPLE,1/4" - 28 NPTF
(Front axle pivot pin) (Optional with 271287)
1шт.
29
219-8
LUBE NIPPLE,1/4" - 28 NPTF
(Front axle pivot pin) (Optional with 109454)
1шт.
30
Q3537
HEADED PIN,3/8" x 4 1/8"
3/8 x 4-1/8" std-hd., dld. (Front axle pivot pin lock)
1шт.
1/8 x 3/4" cotter
1шт.
31
358969R2
SPARE PART Lower
1шт.
SCREW, 3/4 x 2-1/2" hex-hd. cap
4шт.
SCREW, 3/4 x 3-1/2" hex-hd. cap
4шт.
32
350557R1
PIN
Front axle clamp
2шт.
PIN, 1/4 x 1-1/2" cotter
2шт.
33
350558R1
BOLT
Front axle clamp
4шт.
NUT, 3/4" NF
4шт.
34
350556R1
CLAMP
Front axle
4шт.
35
370723R91
SPARE PART ASSEMBLY, LH steering (Composed of -
1шт.
370367R1
KNUCKLE (NSS)
1шт.
370254R91
OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk
OIL
1шт.
358966R1
PIN (NSS)
1шт.
48701D
SHIELD
1шт.
36
358997R91
SPARE PART STAY ROD ASSEMBLY, auxiliary (Composed of -
2шт.
For tractors equipped with auxiliary stay rod.
1шт.
359003R1
CLAMP
1шт.
359004R1
CLAMP
SPARE PART
1шт.
359002R1
SPARE PART
1шт.
359001R1
SPARE PART
1шт.
425-1110
NUT,5/8"-18, G5
2шт.
114-614
BOLT,Hex, 5/8" - 18 x 3", Gr 5
SCREW
2шт.
358998R1
SPARE PART
1шт.
114609
LOCK WASHER,Ext Tooth, 5/8"
Ext Tooth, 5/8"
2шт.
37
359001R1
SPARE PART Auxiliary stay rod adjustable
2шт.
For tractors equipped with auxiliary stay rod.
1шт.
NUT, 3/4" NF
2шт.
SCREW, 3/4" NF x 2-1/2" hex-hd. cap
2шт.
WASHER, 3/4" lock
2шт.
38
359003R1
CLAMP
Auxiliary stay rod (Adjustable end)
2шт.
For tractors equipped with auxiliary stay rod.
1шт.
NUT, 5/8" NF
2шт.
SCREW, 5/8" NF x 3" hex-hd. cap
2шт.
WASHER, 5/8" external tooth lock
2шт.
39
358998R1
SPARE PART Auxiliary stay rod (See Note)
2шт.
40
359004R1
CLAMP
SPARE PART Auxiliary stay rod (Threaded end)
2шт.
For tractors equipped with auxiliary stay rod.
1шт.
NUT, 5/8" NF
1шт.
SCREW, 5/8" NF x 3" hex-hd. cap
2шт.
WASHER, 5/8" external tooth lock
2шт.
41
359002R1
SPARE PART Auxiliary stay rod threaded
2шт.
For tractors equipped with auxiliary stay rod.
1шт.
NUT, 3/4" NF
2шт.
SCREW, 3/4" NF x 2-1/2" hex-hd. cap
2шт.
WASHER, 3/4" lock
2шт.
42
359006R1
BOLT
BOLT, auxiliary stay rod mounting front
8шт.
For tractors equipped with auxiliary stay rod.
1шт.
NUT, 1/2" NF
8шт.
WASHER, 1/2" lock
8шт.
43
359005R1
SPARE PART BRACKET, auxiliary stay rod mounting front
4шт.
For tractors equipped with auxiliary stay rod.
1шт.
44
375618R91
SPARE PART END ASSEMBLY, tie rod (Adjustable)
2шт.
45
375620R1
CLAMP
Tie rod
2шт.
NUT, 1/2NF
2шт.
SCREW, 1/2NF x 2-1/2" cap
2шт.
WASHER, 1/2" lock
2шт.
WASHER, 17/32 x 1-1/16" x .095 ga
2шт.
46
375619R1
SPARE PART Tie rod 0.948 - 1.06" ID, .333" OD, 16.75" Length
2шт.
47
374062R1
JAM NUT
Jam
2шт.
48
375617R91
TIE-ROD
TIE ROD END ASSEMBLY, tie rod (Threaded)
2шт.
49
375615R91
SPARE PART ASSEMBLY (O and S Bearing and Mfg. Co.) (Optional with 369569R91)
2шт.
358996R91
SPARE PART PARTS ACCESSORY, auxiliary stay rod (Consists of 2 each Ref. Nos. 35 thru 43)
1шт.
Выбрано товаров: 130
