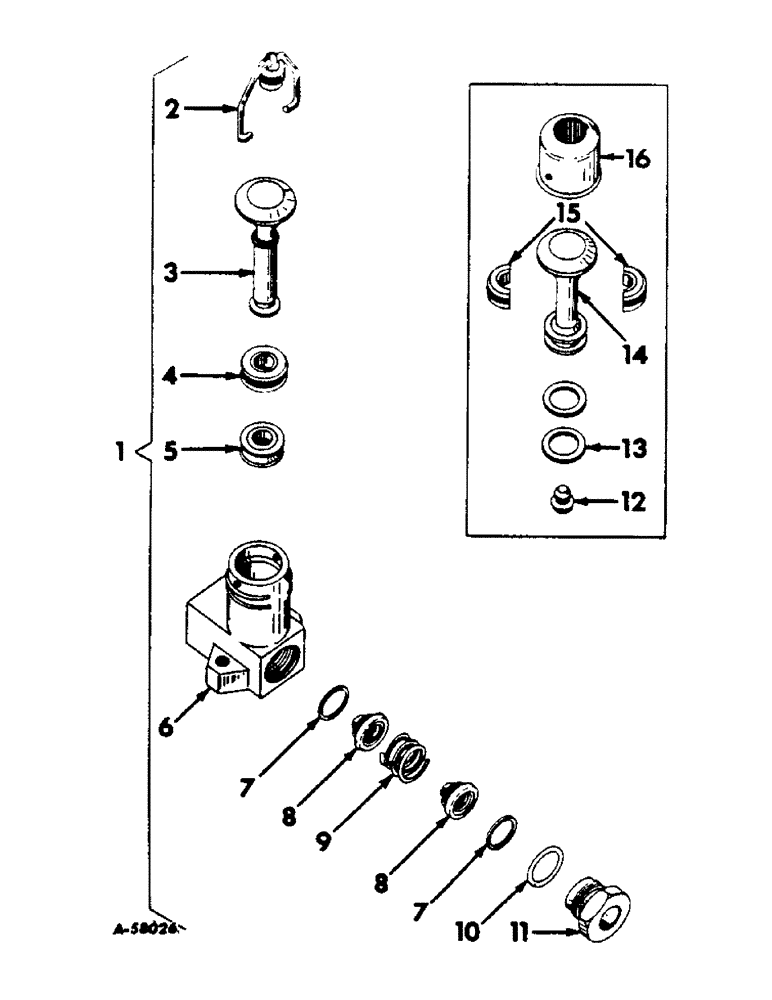

Запчасти Case IH 460 (048) - FUEL SYSTEM, HAND PRIMER PUMP, DIESEL ENGINE TRACTORSD-236, 501 TO 10033 (02) - FUEL SYSTEM

1

303753R91

PUMP

hand primer

1шт.

2

307861R91

LOCK ASSY

hand primer screw

1шт.

3

309017R1

SPARE PART hand primer pump

1шт.

Used only with pump having one piece plunger guide.

1шт.

4

309018R1

GUIDE

hand primer pump plunger

1шт.

Used only with pump having one piece plunger guide.

1шт.

5

309019R1

OIL RESERVOIR

SEAL, hand primer piston

1шт.

Used only with pump having one piece plunger guide.

1шт.

6

307859R91

BODY, hand primer pump

1шт.

7

59995D

GASKET, hand primer valve

2шт.

8

302564R91

SPARE PART hand primer

2шт.

9

307869R1

SPARE PART valve retaining

1шт.

10

307870R1

RING

valve nut

1шт.

11

307867R1

SPARE PART hand primer valve

1шт.

12

307864R1

SPARE PART hand primer piston

1шт.

Used only with pump having two piece plunger guide.

1шт.

13

307865R1

SPARE PART hand primer piston

2шт.

Used only with pump having two piece plunger guide.

1шт.

14

307860R1

SPARE PART hand primer pump

1шт.

Used only with pump having two piece plunger guide.

1шт.

15

307862R1

SPARE PART hand primer plunger

1шт.

Used only with pump having two piece plunger guide.

1шт.

16

307863R1

SPARE PART hand primer pump rubber

1шт.

Used only with pump having two piece plunger guide.

1шт.
