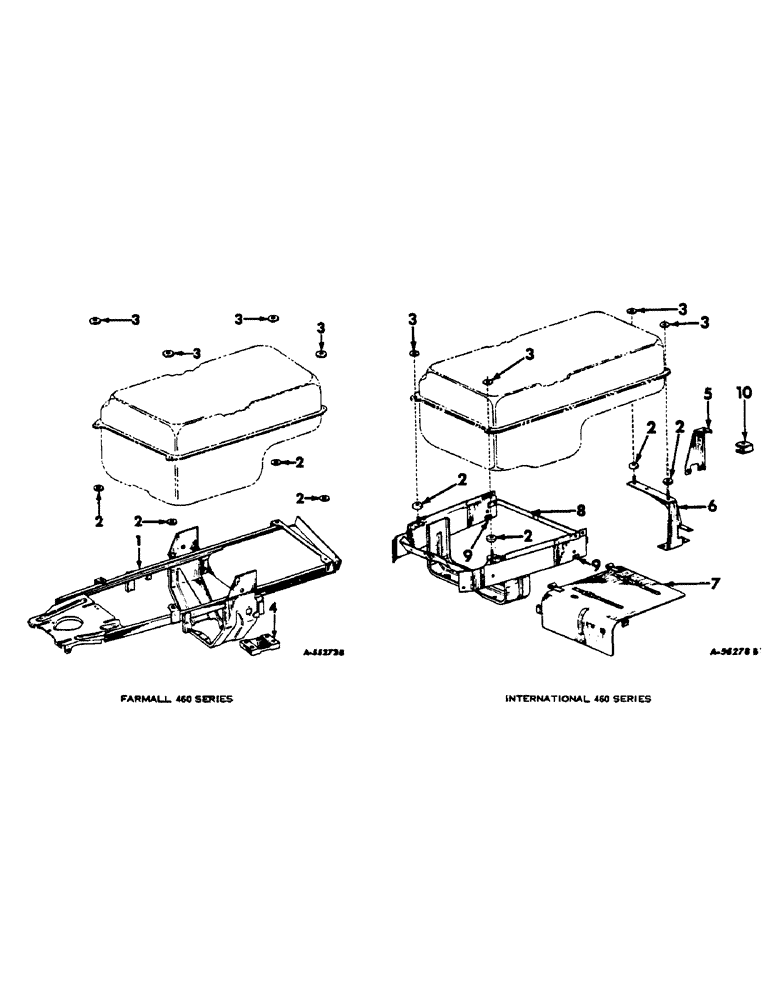

Запчасти Case IH 460 (033) - FUEL SYSTEM, FUEL TANK SUPPORTS (02) - FUEL SYSTEM

1

371641R91

SPARE PART fuel tank (L. P. Gas)

1шт.

1

370064R11

SPARE PART fuel tank (Gasoline and diesel engine tractors)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

2шт.

SCREW, 7/16 x 1" hex-hd. cap

4шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 17/32 x 1-1/16 x No. 13 ga.

4шт.

369865R2

FASTENER

quick release fastener

2шт.

372153R1

SPARE PART quick release fastener receptacle

4шт.

2

60671D

INSULATOR BLOCK

RUBBER BLOCK fuel tank insulating Farmall 460 Series 501 to 7748 International 460 Series, Serial Range: 501-3466

8шт.

2

60671D

INSULATOR BLOCK

RUBBER BLOCK fuel tank insulating Farmall 460 Series 7749 up International 460 Series 3467 up

4шт.

3

362321R1

SPARE PART fuel tank insulating pad Farmall 460 Series 501 to 7748 International 460 Series, Serial Range: 501-3466

4шт.

3

95-11041

WASHER,3/8"

(13/32 x 13/16" x .065 ga.), Fuel tank insulating pad, Farmall 460 Series 7749 up, International 460 Series 3467 up

4шт.

4

NOT USED

1шт.

5

369309R11

SPARE PART fuel tank front LH (Diesel Engine Tractors)

1шт.

3/8 x 1-5/8" hex-hd. cap

2шт.

6

369394R11

SPARE PART fuel tank front (For Carbureted Engine Tractors) (For L. P. Gas fuel tank support - refer to L. P. Gas fuel tank, supports and piping)

1шт.

7

369313R11

SPARE PART heat (Carbureted Engine Tractors)

1шт.

SCREW, 5/16 x 3/8" hex-hd. cap

1шт.

7

370044R11

SPARE PART heat (Diesel Engine Tractors)

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

5/16 x 5/8" hex-washer hd. cap

1шт.

7

371678R91

SPARE PART heat (L. P. Gas) (Refer to L. P. Gas Fuel tank, support and piping)

1шт.

8

369305R91

SPARE PART fuel tank and cowl rear

1шт.

8

378177R91

SPARE PART fuel tank and cowl rear (Grove Tractors)

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

4шт.

NUT, 3/8" Esna elastic stop cd-pltd.

4шт.

SCREW, 7/16 x 3/4" hex-hd. cap

4шт.

372820R1

SPARE PART (International 460 Series Carbureted Engine Tractors with vertical exhaust)

1шт.

SCREW, 3/8 x 1" hex-hd. cap

1шт.

9

369865R2

FASTENER

quick release fastener

2шт.

372153R1

SPARE PART quick release fastener receptacle

4шт.

10

369311R1

SPARE PART fuel tank front (Diesel Engine Tractors)

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.
