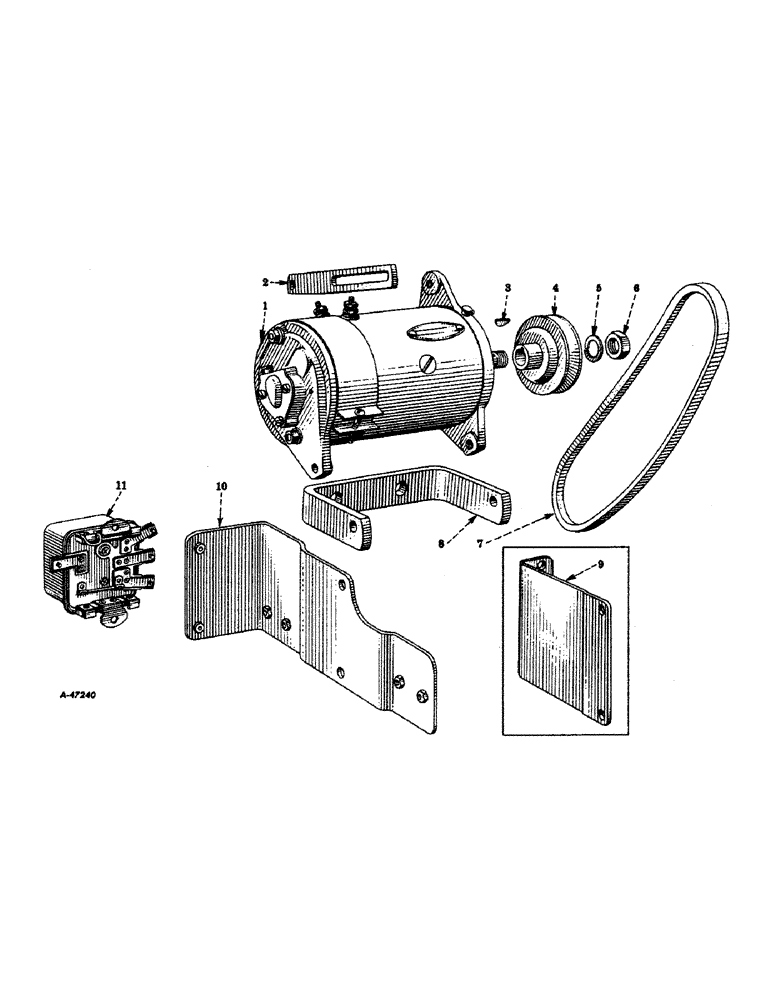

Запчасти Case IH 450-SERIES (112) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

362657R91

SPARE PART GENERATOR (6 volt) assembly (for components see list of parts under detail of "Generator") Farmall 400 Series, 13674 up, Farmall 450 Series, Serial Range: 501-11083

1шт.

1

363727R91

SPARE PART GENERATOR (12 volt) assembly (liquefied petroleum gas) Farmall 400 Series, 13459 up, Farmall 450 Series, Serial Range: 501-11092

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Part Number

1шт.

1

103820A1R

REMAN-GENERATOR

Generator

1шт.

1

103820A1C

CORE-GENERATOR

Return Part Number

1шт.

1

103821A1R

REMAN-GENERATOR

Generator

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

1

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

1

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

1

104017A1R

REMAN-GENERATOR

Generator

1шт.

1

104017A1C

CORE-GENERATOR

Return Part Number

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

362658R1

BAR

BRACE, generator (gasoline, distillate or kerosene) Farmall 400 Series, 13674 up, Farmall 450 Series, 501 to 11083, (liquefied petroleum gas) Farmall 400 Series, 13459 up, Farmall 450 Series, Serial Range: 501-11092

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

363366R1

PULLEY

PULLEY, generator (gasoline, distillate or kerosene) Farmall 400 Series, 13674 up, Farmall 450 Series, 501 to 11083 (liquefied petroleum gas) Farmall 400 Series, 13459 up, Farmall 450 Series, Serial Range: 501-11092

1шт.

5

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

6

NUT, armature shaft (Delco-Remy 806915)

1шт.

7

49341D

V-BELT,0.53" W

Generator

1шт.

8

362660R1

SPARE PART BRACKET, generator (gasoline, distillate or kerosene) Farmall 400 Series, 13674 up, Farmall 450 Series, 501 to 11083, (liquefied petroleum gas) Farmall 400 Series, 13459 up, Farmall 450 Series, Serial Range: 501-11092

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

362670R11

SPARE PART BRACKET, mounting voltage regulator (used on tractors with 18 gal. capacity fuel tank)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

365363R11

SPARE PART BRACKET mounting, junction block and voltage regulator (used on tractors with 21-1/2 gal. capacity fuel tank)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

REGULATOR, voltage, assembly (for components see list of parts under detail of "Voltage Regulator")

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
