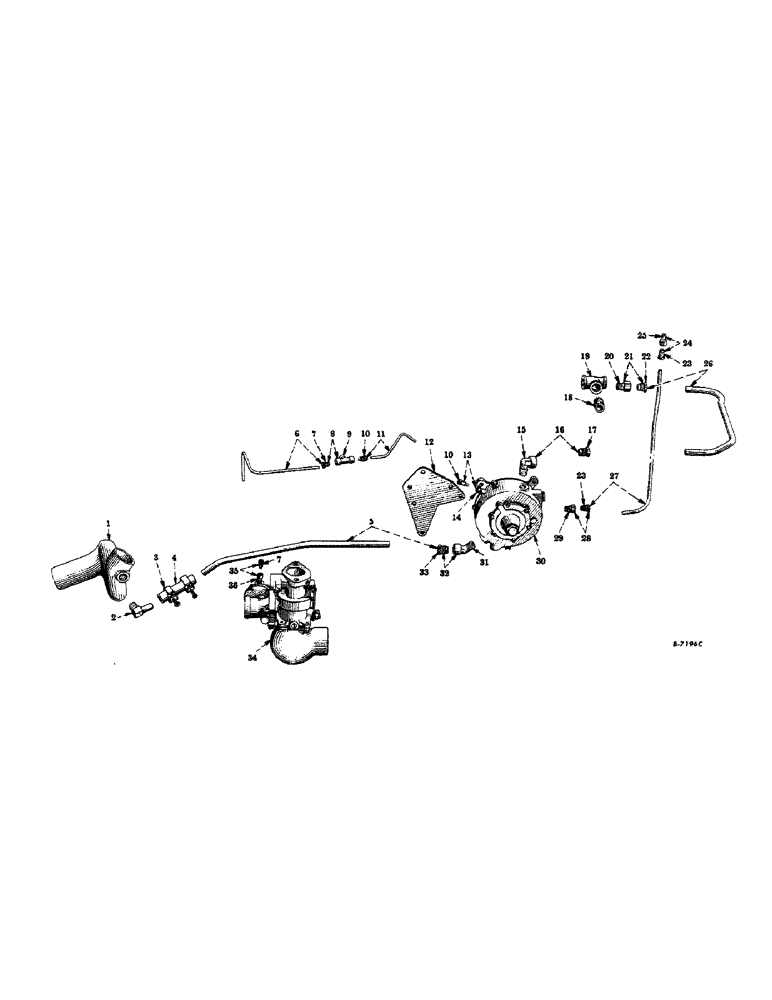

Запчасти Case IH 450-SERIES (047) - CARBURETED ENGINE, CARBURETOR AND REGULATOR CONNECTIONS, LIQUIFIED PETROLEUM GAS (01) - ENGINE

1

358094R2

PIPE, outlet , radiator

1шт.

2

357483R1

ELBOW, 1/2" I.D. x 3/8" N.P.T.

1шт.

3

251227R91

CLAMP

hose, water pipe (regulator to radiator outlet)

2шт.

4

357487R1

HOSE, water pipe (regulator to radiator outlet)

1шт.

5

363798R11

PIPE, water, w/nut, 37288H (regulator to radiator outlet pipe)

1шт.

6

357058R11

PIPE, economizer, w/two nuts, 25038HA, Serial Range: (manifold-carburetor)

1шт.

7

25038HA

TUBE NUT,3/8"-24

NUT, economizer pipe (manifold to carburetor)

2шт.

8

80020HAX

TEE, intake and exhaust manifold, 80020HA, w/two nuts, 25038HA

1шт.

9

80020HA

TEE, intake and exhaust manifold

1шт.

10

25038HA

TUBE NUT,3/8"-24

NUT, idle pipe (regulator to manifold)

2шт.

11

357057R11

PIPE, idle, w/two nuts, 25038HA, Serial Range: (regulator-manifold)

1шт.

12

357052R12

BRACKET, regulator

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

36521DX

CONNECTOR, idle pipe 36521D, w/two nuts, 25038HA, Serial Range: (regulator-manifold)

1шт.

14

36521D

CONNECTOR, idle pipe, Serial Range: (regulator-manifold)

1шт.

15

40876D

ELBOW, water pipe (cylinder head to regulator) 90º x 3/8" NPT x 11/16"-16

1шт.

16

40876DX

ELBOW

water pipe, 40876D, w/nut, 37288H (cylinder, Serial Range: head-regulator)

1шт.

17

222-506

TUBE NUT,11/16"-16

NUT, water pipe elbow (cylinder head to regulator)

1шт.

18

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, water pipe (1/2" close) (cylinder head to regulator)

1шт.

19

86982696

TEE

reducer pipe (cylinder head to regulator water pipe)

1шт.

20

37287H

CONNECTOR, water pipe (cylinder, Serial Range: head-regulator)

1шт.

21

36653H

CONNECTOR, water pipe, 37287G, w/nut, 37288H (cylinder, Serial Range: head-regulator)

1шт.

22

222-506

TUBE NUT,11/16"-16

NUT, water pipe connector (cylinder head to regulator)

1шт.

23

222-503

TUBE NUT,1/2"-20

NUT, coupling, balance pipe (regulator to air cleaner)

2шт.

24

357485R11

CONNECTOR, balance pipe, 357485R1, w/nut, 29899D (air cleaner end)

1шт.

25

357485R1

CONNECTOR, balance pipe (air cleaner end)

1шт.

26

357059R11

PIPE, water, w/two nuts, 37288H (cylinder, Serial Range: head-regulator)

1шт.

27

357494R11

PIPE, balance, w/two nuts, 29899D (regulator to air cleaner) (used only with 24" tank)

1шт.

27

364591R11

PIPE, balance, w/twol nuts, 29899D (regulator to air cleaner) (used only with 22" tank)

1шт.

28

35252DX

CONNECTOR, ELEC

CONNECTOR, balance pipe, 35252D, w/nut, 29895D (regulator to air cleaner)

1шт.

29

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, balance line (regulator to air cleaner)

1шт.

30

357051R91

REGULATOR, fuel assembly (for components see list of parts under detail of ("Fuel Regulator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

31

58986D

ELBOW, water pipe (regulator to radiator outlet pipe) 45º x 3/8" NPT x 11/16"-16

1шт.

32

58986DX

ELBOW, 58986D water pipe, w/nut, 37288H (regulator to radiator outlet pipe)

1шт.

33

222-506

TUBE NUT,11/16"-16

NUT, water pipe (regulator to radiator outlet pipe)

1шт.

34

CARBURETOR, assembly (for components see list of parts under detail of "Carburetor")

1шт.

103026

NUT,3/8"-24, G5

2шт.

103865

PLUG, pipe, sq-hd., C.I. (optional with 103877) 1/8"

1шт.

103877

PLUG

pipe, sq-hd., 1/8" (optional with 103865)

1шт.

12215D

STUD

carburetor attaching

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

36521DX

CONNECTOR, economizer pipe, 36521D, w/nut, 25038HA, Serial Range: (manifold-carburetor)

1шт.

36

36521D

CONNECTOR, economizer pip, Serial Range: (manifold-carburetor)

1шт.
