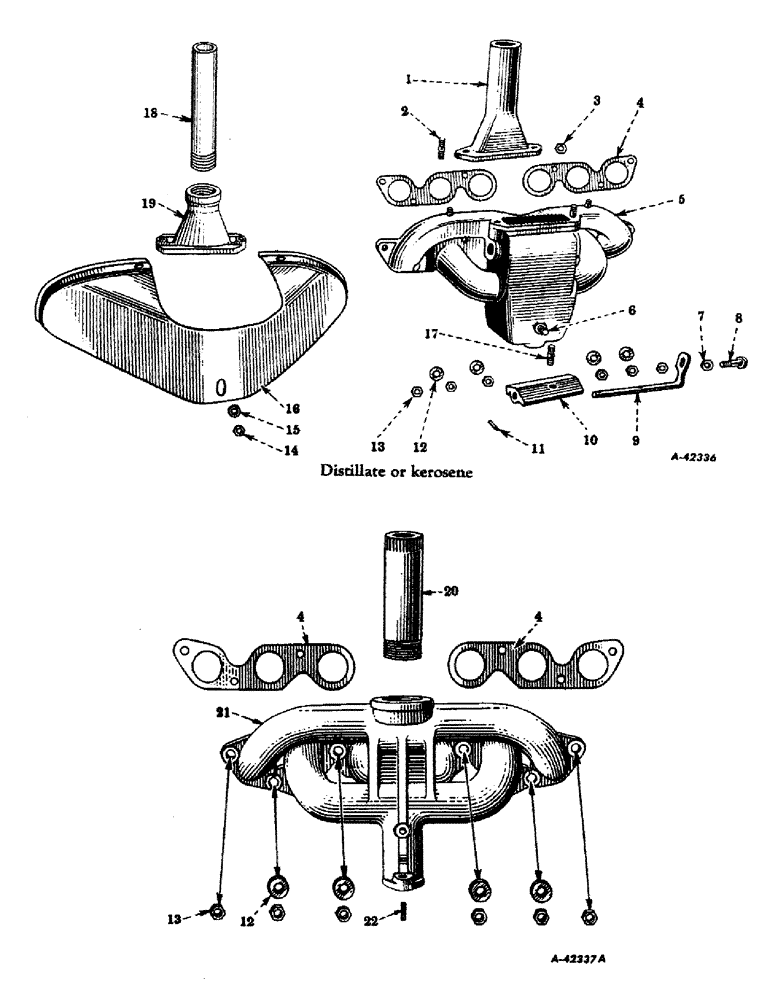

Запчасти Case IH 450-SERIES (040) - CARBURETED ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

362953R1

PIPE, exhaust (distille or kerosene)

1шт.

2

46202D

STUD

exhaust pipe (distillate of kerosene)

2шт.

3

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC

2шт.

4

46173DC

MANIFOLD GASKET

manifold

2шт.

5

363153R11

MANIFOLD, intake and exhaust, assembly (distille or kerosene) composed of (1) manifold 363153R1 (NSS), (2) stud 12215D, (3) stud 46102D, (2) stud 46202D

1шт.

5

363154R91

MANIFOLD, intake and exhaust, w/heat valve, assembly (distillate or kerosene) composed of (1) manifold 363153R11, (1) nut 114503, (1) pin 142494, (1) screw 102952, (1) shaft 49045DA, (1) valve 6777DA

1шт.

6

46102D

STUD, manifold shield (distillate or kerosene)

3шт.

7

114503

JAM NUT,Jam, 3/8"-16, G5

Follows Ref. #9 Jam, 3/8"-16, G5

1шт.

8

102952

Follows Reference no 9

1шт.

9

49045DA

SHAFT, manifold heat control valve (distillate or kerosene)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102952

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/4"

1шт.

10

6777DA

VALVE, manifold heat control (distillate or kerosene)

1шт.

11

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A (manifold heat control valve) (distillate or kerosene)

1шт.

12

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold to cylinder head stud

4шт.

13

43715D

NUT

manifold to cylinder head stud

6шт.

14

93082H

NUT

manifold shield stud (distillate or kerosene)

3шт.

15

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) (Distillate or Kerosene) 3/8"

3шт.

16

49046DX

SHIELD, manifold heat (distillate or kerosene)

1шт.

17

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

361384R1

PIPE

exhaust (distillate or kerosene on tractors equipped with cotton picker)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

364158R1

ADAPTER, exhaust pipe (distillate or kerosene on tractors equipped with cotton picker)

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

20

361384R1

PIPE

MANIFOLD, intake and exhaust, w/plug, 103865, two plugs, 107317 and two studs 12215D (gasoline)

1шт.

103865

PLUG, pipe, sq-hd., C.I. 1/8" (optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., (optional with 103865)

1шт.

21

358308R11

MANIFOLD, intake and exhaust, w/two studs, 12215D and tee, 80020 hax (liquefied petroleum gas) (not illustrated)

1шт.

22

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

53556D

PARTS ACCESSORY, exhaust pipe extension (illustrated in attachment section)

1шт.

367099R91

PARTS ACCESSORY, manifold heater block (used on C-264 gasoline burning engines with 362437R1 manifold) (illustrated in attachment section)

1шт.
