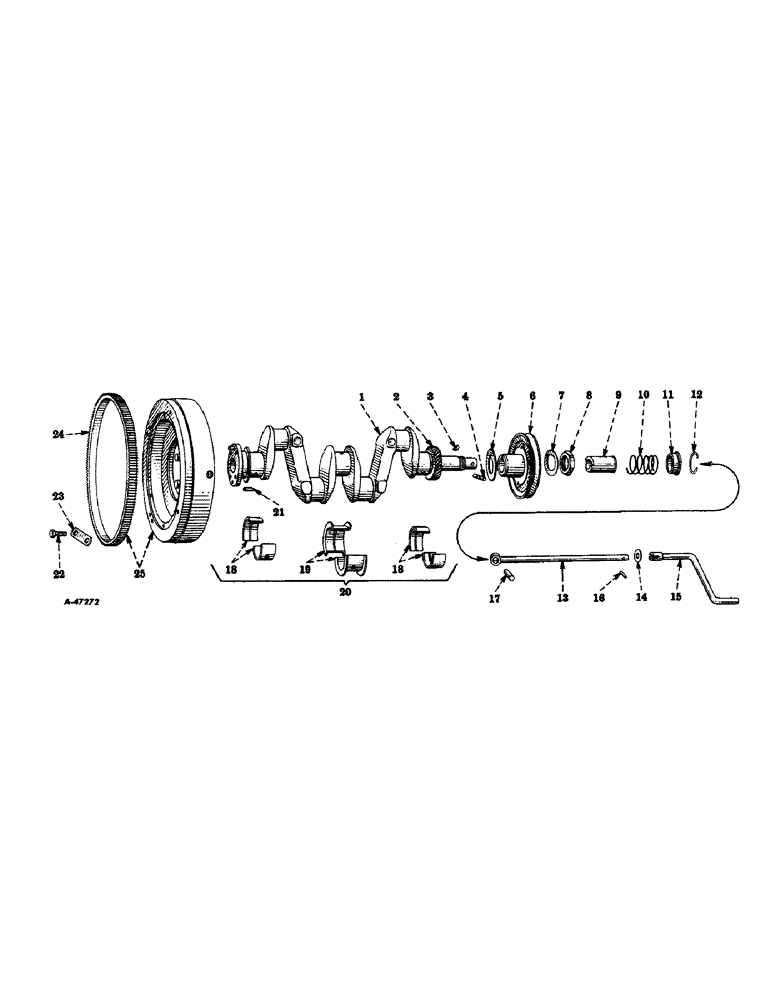

Запчасти Case IH 450-SERIES (028) - CARBURETED ENGINE, CRANKSHAFT AND RELATED PARTS (01) - ENGINE

1

353746R94

CRANKSHAFT, w/bearing, assembly (standard) composed of (4) bearing 356957R11, (2) bearing 356985R11, (1) bearing 356986R11, (1) crankshaft 45571DE (NSS), (1) nut 4253D, (2) pin 46923D

1шт.

1

352749R94

CRANKSHAFT, w/bearing, assembly (.030 undersize) composed of (4) bearing 356958R11, (2) bearing 356987R11, (1) bearing 356988R11, (1) crankshaft 45572DFX (NSS), (1) nut 4253D, (2) pin 46923D

1шт.

2

45627D

PINION

GEAR, crankshaft (29 teeth)

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, woodruff, no-stl. type "A"

1шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, woodruff, type "B" (fan drive pulley)

1шт.

4

455238R1

LOCK PIN,1/2" x 2 1/2", Slotted

Pin, 1/2" x 2 1/2", Slotted

1шт.

5

36796DA

SLINGER

FLINGER, oil crankshaft front

1шт.

6

6765DC

PULLEY, fan drive

1шт.

7

4254DA

LOCK

crankshaft gear nut

1шт.

8

4253D

NUT

crankshaft gear

1шт.

9

360512R1

RATCHET, starting crank

1шт.

10

41073DB

SPRING, starting crank

1шт.

11

45280D

RETAINER, starting crank spring

1шт.

12

45278D

RING, snap, starting crank ratchet

1шт.

13

60969DA

SHAFT, starting crank

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

14

45279D

WASHER, starting crankshaft

1шт.

15

51544DBX

CRANK

starting (special) (optional with 354705R31 and 360449R11)

1шт.

15

354705R31

CRANK, starting (special) (optional with 51544DBX and 360449R11)

1шт.

15

360449R11

CRANK, starting (special) (optional with 51544DBX and 354705R31)

1шт.

15

351335R31

CRANK, starting (special) (for tractors equipped with high drum cotton picker mounting parts) (optional with 354703R93)

1шт.

15

354703R93

CRANK, starting (special) (for tractors equipped with high drum cotton picker mounting parts (optional with 351335R31)

1шт.

16

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , starting crank 5/16" x 1 1/2", Slotted

1шт.

17

45277D

PIN, starting crank ratchet

1шт.

18

356985R11

BEARING ASSY

crankshaft, front & rear (2 halves) (standard)

2шт.

18

356989R11

BEARING LINER

BEARING, crankshaft, front & rear (2 halves) (.002" undersize)

2шт.

18

360205R11

BEARING, crankshaft, front & rear (2 halves) (.003" undersize)

2шт.

18

356987R11

BEARING ASSY

crankshaft, front & rear (2 halves) (.030" undersize)

2шт.

18

356991R11

BEARING, crankshaft, front & rear (2 halves) (.032" undersize)

2шт.

19

356986R11

BEARING ASSY

crankshaft, center (2 halves) (standard)

1шт.

19

356990R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

19

360206R11

BEARING, crankshaft, center (2 halves) (.003" undersize)

1шт.

19

356988R11

BEARING

crankshaft, center (2 halves) (.030" undersize)

1шт.

19

356992R11

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

20

367885R91

KIT

BEARING SET, crankshaft (standard) (consists of two bearings, 356985R11 and one bearing, 356986R11)

1шт.

21

46923D

PIN

dowel, flywheel

2шт.

22

43832D

SCREW

BOLT, Serial Range: flywheel-crankshaft

4шт.

23

45613D

SHEET

LOCK, flywheel to crankshaft bolt

2шт.

24

46142DB

GEAR

ring, flywheel (125 teeth)

1шт.

25

356995R11

FLYWHEEL, w/ring gear, 46142DB

1шт.
