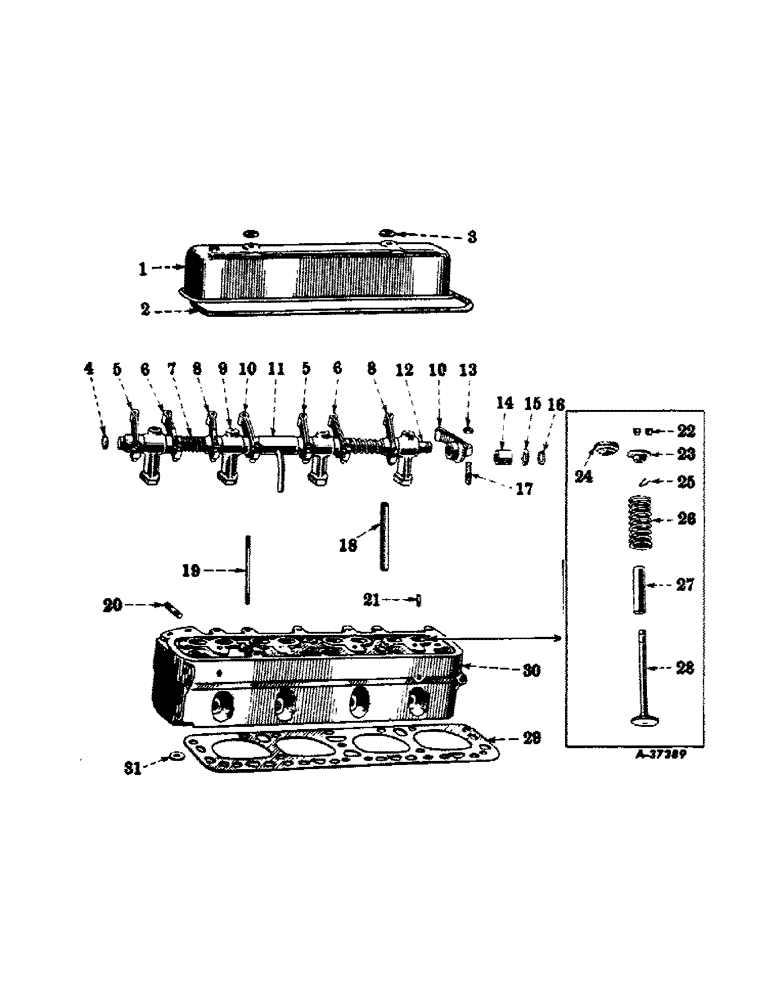

Запчасти Case IH 450-SERIES (012) - CARBURETED ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

363357R91

COVER, valve, w/plug, 143997 and stiffeners

1шт.

2

45952DB

GASKET

valve cover

1шт.

3

62866D

WASHER,5/64" Thk x 13/32" ID

valve cover stud nut (optional with 357374R1)

2шт.

3

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve cover stud nut (optional with 62866D)

2шт.

4

172528

PLUG,Exp, 9/16"

expansion, 9/16" (valve lever shaft end)

2шт.

5

355455R91

LEVER

exhaust valve, L.H. (welded type) (will work for 43917DAX)

2шт.

5

355671R92

ROCKER

LEVER, exhaust valve, L.H. 355455R91, w/screw, 16067DA and nut, 133093R1 (will work for 43917DAYA)

2шт.

6

355456R91

LEVER

intake valve, R.H. (welded type) (will work for 43916DAX)

2шт.

6

355672R92

LEVER

intake valve, R.H. 355456R91, w/screw, 16067DA and nut, 133093R1 (will work for 43916DAYA)

2шт.

7

45949D

SPRING

valve lever

2шт.

8

355455R91

LEVER

intake valve, L.H. (welded type) (will work for 43915DAX)

2шт.

8

355671R92

ROCKER

LEVER, intake valve ,L.H. 355455R91, w/screw, 16067DA and nut, 133093R1 (will work for 43915DAYA)

2шт.

9

45948DB

BRACKET

valve lever

4шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, cap, hex-hd. 3/8-16NC x 3-1/2"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

4шт.

10

355456R91

LEVER

exhaust valve, R.H. (welded type) (will work for 43918DAX)

2шт.

10

355672R92

LEVER

exhaust valve, R.H., 355456R91, w/screw, 16067DA and nut, 133093R1 (will work for 43918DAYA)

2шт.

11

45950DAX

SLEEVE

valve lever shaft oil, w/tube

1шт.

12

45947DBX

LEVER

SHAFT, valve lever, w/plug, 172528

2шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

24564DA

BUSHING

valve lever (used with forged type lever arms)

8шт.

15

43374D

SPRING WASHER

valve lever shaft spring

2шт.

16

43375D

RING

snap, valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

18

351973R1

SLEEVE,14.34mm ID x 20.434mm OD x 127mm L

SLEEVE, cylinder head stud

2шт.

19

45943D

STUD

valve cover

2шт.

103026

NUT,3/8"-24, G5

2шт.

20

63459D

STUD

manifold to cylinder head

6шт.

21

362020R1

PIPE, breather, cylinder head

1шт.

22

41339D

KEY

valve spring seat

16шт.

23

47277D

CUP

SEAT, valve spring, upper (intake) (gasoline and liquefied petroleum gas)

4шт.

23

47277D

CUP

SEAT, valve spring, upper (distillate or kerosene) (see note S)

8шт.

24

356952R92

ROTATOR

ROTOCAP, exhaust valve (gasoline only)

4шт.

25

41349D

RETAINER

valve stem

8шт.

26

356951R1

SPRING

valve

8шт.

27

6338DR

BUSHING

GUIDE, valve (distillate or kerosene) (see note S)

8шт.

27

8044DR

BUSHING

GUIDE, valve (gasoline) (liquefied petroleum gas) (see note S) C-264, Serial Range: 136834-161365

8шт.

27

364588R1

GUIDE

valve (liquefied petroleum gas) (see note S) C-264, 161366 up, C-281, 501 up

8шт.

28

48958D

VALVE

intake (distillate) (see note S)

4шт.

28

48959DA

VALVE

exhaust (distillate) (see note S)

4шт.

28

362435R1

VALVE

intake (gasoline) (liquefied petroleum gas C-264, Serial Range: 136834-161365)

4шт.

28

362436R1

VALVE

exhaust (gasoline) (liquefied petroleum gas C-264, Serial Range: 136834-161365)

4шт.

28

364589R1

VALVE

intake (liquefied petroleum gas) (see note S) C-264, 161366 up, C-281, 501 up

4шт.

28

364590R1

VALVE

exhaust (liquefied petroleum gas) (see note S) C-264, 161366 up, C-281, 501 up

4шт.

28

357253R1

VALVE, intake (kerosene) (see note S)

4шт.

28

357254R1

VALVE, exhaust (kerosene) (see note S)

4шт.

29

48957DE

GASKET

cylinder head

1шт.

30

362433R11

HEAD, cylinder, assembly (gasoline) (liquefied petroleum gas C-264, 136834 to 161365) composed of (8) guide 8044D (NSS), (1) head 362433R1 (NSS), (4) insert 361182R2, (4) screw 186283, (2) sleeve 45942D, (2) stud 45943D, (6) stud 63459D, (4) washer 114606

1шт.

30

362434R91

1шт.

HEAD, cylinder, w/valves and rotocap, assembly (gasoline) (liquefied petroleum gas C-264, 136834 to 161365) composed of (1) head 362433R11, (16) key 41339D, (8) retainer 41349D, (4) rotocap, (4) seat 47277d, (8) spring 356951R1, (4) valve 362436R1, (4) valve 362435R1

1шт.

30

364585R91

HEAD, cylinder, w/valves, assembly (liquefied petroleum gas) (see note S) C-264, 161366 up, C-281, 501 up, composed of (1) head 364586R11, (16) key 41339D, (8) retainer 41349D, (4) seat 47277D, (8) spring 356951R1, (4) valve 364589R1, (4) valve 364590R1

1шт.

30

364586R11

HEAD, cylinder, assembly (liquefied petroleum gas) (see note S) C-264, 161366 up, C-281, 501 up, composed of (8) guide 364587R1 (NSS), (1) head 364586R1 (NSS), (4) insert 361182R2, (2) sleeve 45942D (NSS), (2) stud 45943D, (6) stud 63459D

1шт.

30

8704DBXA

HEAD, cylinder, assembly (distillate) (see note S) composed of (8) guide 6338D (NSS), (1) head 8704DB (NSS) (4) insert 6337D, (1) plug 143997, (4) screw 186283, (2) sleeve 45942D (NSS), (2) stud 45943D, (6) stud 63459D, (4) washer, 114606

1шт.

143997

PLUG

pipe, sq-socket, 1/4"

1шт.

30

8704DBYA

HEAD, cylinder, w/valves, assembly (distillate) (see note S) composed of (1) head 8704DBXA, (16) key 41339D, (8) retainer 41349D, (8) seat 47277D, (8) spring 356951R1, (4) valve 48958D, (4) valve 48959DA

1шт.

30

264914R21

HEAD, cylinder, assembly (kerosene) (see note S) composed of (8) guide 6338D (NSS), (1) head 264914R2 (NSS), (4) insert 6337D, (1) plug 143997, (1) screw 186283, (2) sleeve 45942D (NSS), (2) stud 45943D, (6) stud 63459D, (4) washer 114606

1шт.

143997

PLUG

pipe, sq-socket, 1/4"

1шт.

30

357251R93

HEAD, cylinder, w/valves, assembly (kerosene) (see note S) composed of (1) head 264914R21, (16) key 41339D, (8) retainer 41349D, (8) seat 47277D, (8) spring 356951R1, (4) valve 357254R1, (4) valve, 357253R1

1шт.

4097DA

NUT

cylinder head stud

16шт.

143997

PLUG

pipe, sq-socket, stl.,1/4" (used to plug cylinder head breather hole)

1шт.

49023DA

STUD

cylinder head, long, 7.0625 x 1/2

2шт.

46117D

STUD

cylinder head, short, 6.875 x 1/2

14шт.

60580D

WASHER

cylinder head stud

2шт.

31

6337D

WASHER

INSERT, exhaust valve seat (distillate or kerosene) (see note S)

4шт.

31

361182R2

INSERT, exhaust valve seat (stellite faced) (gasoline and liquefied petroleum gas)

4шт.

64889D

SHAFT

valve lever (included two shafts, 45947DBX and one sleeve, 45950DAX)

1шт.

354476R95

GASKET KIT

SET, valve grinding

1шт.
