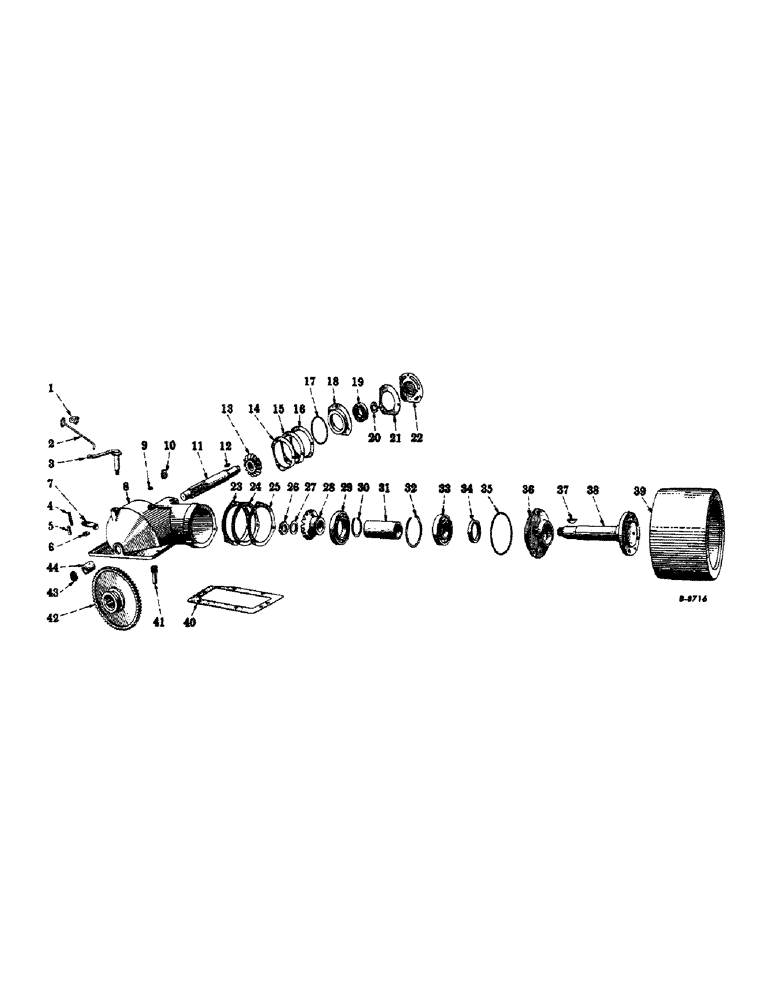

Запчасти Case IH 450-SERIES (402) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments

361514R92

ATTACHMENT, belt pulley

1шт.

1

361349R1

BRACKET, pulley control rod support

1шт.

164074

SCREW, tapping, cross recess rd-hd., cd-pltd., no. 10-32NF x 5/16"

2шт.

1

362187R1

ROD, pulley control

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

3

358369R11

LEVER, pulley control, w/shaft and shaft plate

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

4

23921D

SPRING, pulley shifter poppet

1шт.

5

45517D

POPPET, pulley shifter

1шт.

6

70119D

NUT

pulley control lever shaft

1шт.

7

51657DA

ARM, pulley shifter

1шт.

8

357185R21

HOUSING, pulley drive, w/bushing, 49260DB and plug, 41047D

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-3/4"

2шт.

187364

SCREW, cap, hex-hd., 1/2-13NC x 7-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q5035

WASHER

plain, 17/32" I.D. x 1" O.D. x no. 16 ga.

2шт.

9

29573D

GASKET, pulley drive housing bolt (will work for 365113R1)

2шт.

10

217-442

PLUG,3/4" - 14

pipe, sq-hd., 3/4"

1шт.

11

357186R1

SHAFT, pulley drive

1шт.

12

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, aly-stl., no. 127 (pulley drive bevel pinion)

1шт.

13

357188R1

PINION, pulley drive bevel (15 teeth)

1шт.

14

357196R1

SHIM, pulley drive shaft bearing cage, heavy (.030")

1шт.

15

357197R1

SHIM, pulley drive shaft bearing cage, medium (.015")

1шт.

16

357198R1

SHIM, pulley drive shaft bearing cage, light (.007")

1шт.

17

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

RING, pulley drive shaft bearing cage (will work for 357190R1) (Replaces 259264R1)

1шт.

18

357189R1

CAGE, pulley drive shaft bearing

1шт.

19

ST200

BEARING, BALL

pulley drive shaft

1шт.

20

357187R1

NUT, retainer, pulley drive bevel pinion

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

21

357200R1

GASKET, pulley drive shaft bearing cage cover

1шт.

22

357199R1

COVER, pulley drive shaft bearing cage

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

357205R1

SHIM, pulley shaft bearing cage, heavy (.030")

1шт.

24

357206R1

SHIM, pulley shaft bearing cage, medium (.015")

1шт.

25

357207R1

SHIM, pulley shaft bearing cage, light (.007")

1шт.

26

357187R1

NUT, retainer, pulley shaft bevel gear

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

27

357193R1

WASHER

retaining, pulley shaft bevel gear

1шт.

28

357192R1

GEAR, bevel, pulley shaft (16 teeth)

1шт.

29

ST227A

BEARING, ball, pulley shaft, inner

1шт.

30

357194R1

RING

snap, pulley shaft inner bearing

1шт.

31

357195R1

SPACER, pulley shaft bearing

1шт.

32

357201R1

RING

snap, pulley shaft outer bearing

1шт.

33

ST203

BEARING, BALL,45mm ID x 100mm OD x 25mm W

pulley shaft, outer

1шт.

34

357203R91

SEAL ASSY.

OIL SEAL, pulley shaft (optional with 360255R91)

1шт.

34

360255R91

OIL SEAL

pulley shaft (optional with 357203R91)

1шт.

35

357204R1

RING

seal, pulley shaft bearing cage

1шт.

36

357202R11

CAGE, pulley shaft bear, w/oil seal, 357203R91 and ring, 357204R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

37

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, aly-stl., no. 127 (pulley shaft)

1шт.

38

357191R1

SHAFT, pulley

1шт.

39

358397R93

PULLEY, belt (11" dia., x 7-1/2" face) (see note)

1шт.

39

358597R92

PULLEY, belt (12" dia. x 8-1/2" face) (see note)

1шт.

39

358598R92

PULLEY, belt (13" dia. x 8-1/2" face) (see note)

1шт.

102637

NUT,1/2"-13, G5

8шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

8шт.

40

49054DB

GASKET

pulley drive housing

1шт.

41

45979D

STUD

PIN, dowel, pulley drive housing

2шт.

42

51573DB

GEAR, pulley drive shifter (59 teeth)

1шт.

43

41047D

PLUG, cup, pulley drive shaft hole

1шт.

44

49260DB

BUSHING

pulley drive shaft

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

8шт.
