Запчасти Case IH 450-SERIES (326) - CHASSIS, TRACTOR PARTS ADAPTABLE TO HIGH DRUM COTTON PICKER, GUIDE WHEEL (12) - CHASSIS

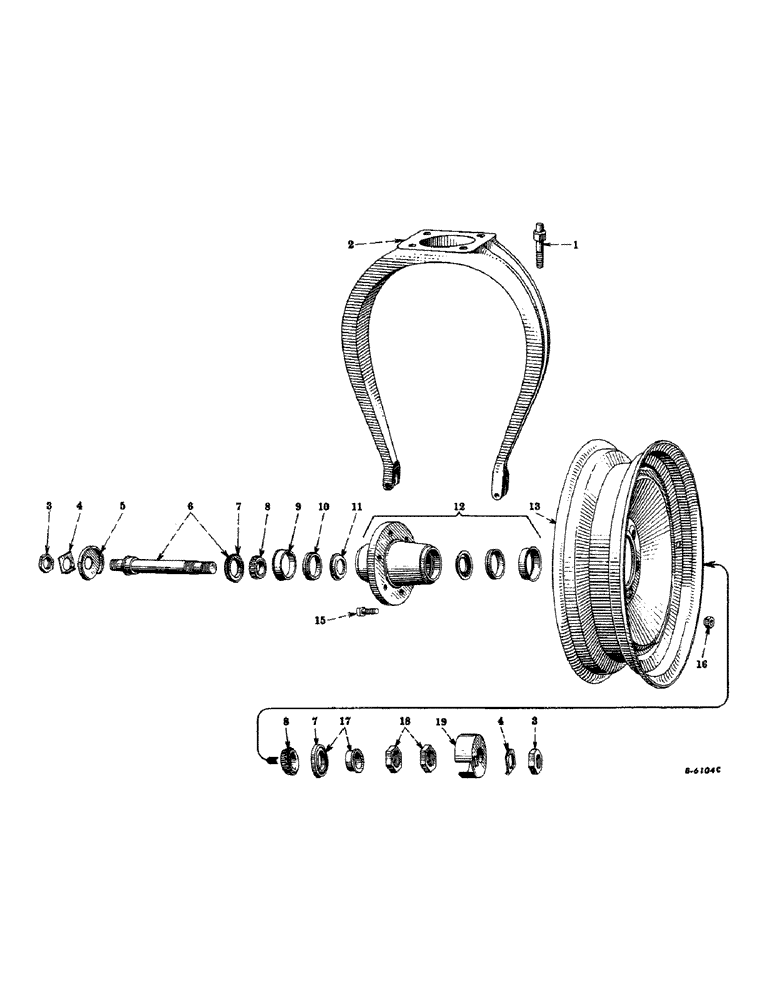

Схема запчастей Case IH 450-SERIES - (326) - CHASSIS, TRACTOR PARTS ADAPTABLE TO HIGH DRUM COTTON PICKER, GUIDE WHEEL (12) - CHASSIS
19
10
5
13
3
4
12
17
6
7
9
18
8
7
3
4
1
16
15
11
2
8

Артикул

Название

Примечание

Количество

1

48751DA

BOLT,3/4" - 16 x 2 7/8"

steering stop

1шт.

352536R1

NUT

steering stop bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

350302R2

FORK, front bolster (for 7.50 x 20 tire)

1шт.

13452R1

BOLT, machine, 1/2-13 NC x 3-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

352536R1

NUT

front bolster fork bolt

3шт.

181512

SCREW, cap, hex-hd., 3/4-16 NF x 2-1/4"

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

FOLLOWS REFERENCE NO. 6

1шт.

4

38916D

LOCK WASHER

lock, front axle nut

2шт.

5

351419R11

PROTECTOR

SHIELD, guide wheel hub, short

1шт.

6

351417R11

AXLE, guide wheel, w/oil seal, 48539DA

1шт.

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

jam, hex., 1-1/4-12 NF

2шт.

7

48539DA

PACKING RING

OIL SEAL, guide wheel (optional with 368587R91)

2шт.

7

368587R91

OIL SEAL

guide wheel (optional with 48539DA)

2шт.

8

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

CONE, guide wheel bearing

2шт.

9

48548D

WASHER

guide wheel oil seal

2шт.

10

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

CUP, guide wheel bearing

2шт.

11

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

grease guide wheel bearing

2шт.

12

351398R21

HUB, guide wheel, assembly, (composed of (2) cup ST974, (1) hub 351398R2 (NSS), (2) retainer 48548D, (2) retainer 60288DA)

1шт.

13

351397R92

WHEEL, guide (for pneumatic tire 7.50 x 20) (optional with 360133R92) (see note A)

1шт.

13

360133R92

WHEEL, guide (for pneumatic tire 7.50 x 20) (optional with 351397R92) (see note A)

1шт.

15

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, mounting, guide wheel (square-head)

6шт.

16

351793R1

WHEEL NUT

NUT, mounting, guide wheel

6шт.

17

351416R11

SPACER, guide wheel bearing, w/oil seal, 48539DA

1шт.

18

351418R1

BEARING LOCK NUT

adjusting, guide wheel bearing

2шт.

19

351420R11

PROTECTOR

SHIELD, guide wheel hub (long)

1шт.

Выбрано товаров: 29
