Запчасти Case IH 450-SERIES (323) - CHASSIS, TRACTOR PARTS ADAPTABLE TO HIGH DRUM COTTON PICKER, COUNTERSHAFT, CARRIER & DRIVE GEAR UNIT (12) - CHASSIS

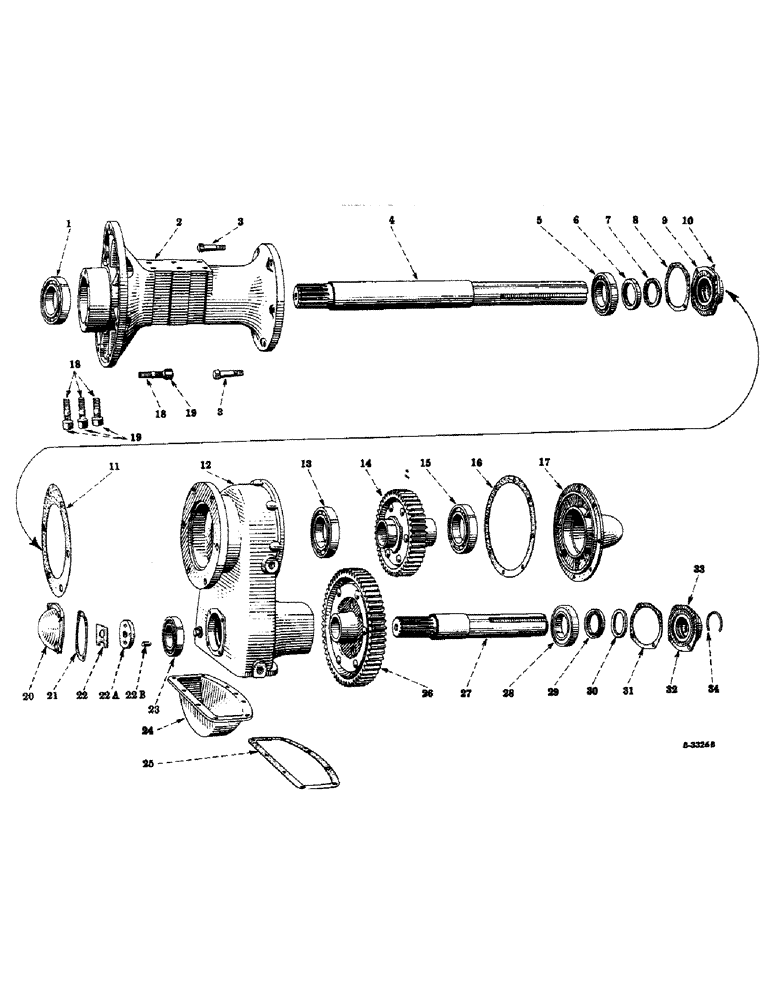

Схема запчастей Case IH 450-SERIES - (323) - CHASSIS, TRACTOR PARTS ADAPTABLE TO HIGH DRUM COTTON PICKER, COUNTERSHAFT, CARRIER & DRIVE GEAR UNIT (12) - CHASSIS
20
24
17
23
30
22b
33
22
14
13
28
2
1
10
7
3
8
18
19
16
2
12
34
6
15
11
5
3
29
22a
26
31
9
4
19
32
25
27
18

Артикул

Название

Примечание

Количество

1

ST223

BALL BEARING

BEARING, ball, countershaft, inner

2шт.

2

350303R3

CARRIER, countershaft, left

1шт.

2

350304R3

CARRIER, countershaft, right

1шт.

368795R1

BOLT, rear axle carrier (will work for 59964D)

8шт.

425-1110

NUT,5/8"-18, G5

8шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, cap, hex-hd, 5/8-11 NC x 2"

6шт.

271589

SCREW,Hex, 5/8" - 18 x 2 1/2", Gr 5

cap, hex-hd., 5/8-18 NF x 2-1/2"

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

3

350268R1

BOLT, dowel, drive gear housing

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

350305R3

COUNTERSHAFT

2шт.

5

ST310

BALL BEARING

BEARING, ball, countershaft, outer

2шт.

6

360457R91

SEAL

OIL SEAL

1шт.

7

45085D

SEALING WASHER

WASHER, felt

1шт.

8

48950D

GASKET

countershaft outer ball bearing cover

1шт.

9

6727DBXA

CAGE

COVER, countershaft outer ball bearing, w/oil seal, 360457R91 and felt washer, 45085D

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30deg. elbow, 1/8" (countershaft outer ball bearing) (optional with 109353)

2шт.

10

109353

FITTING, lubrication, 30deg. elbow, 1/8" (countershaft outer ball bearing) (optional with 109459)

2шт.

11

350307R1

GASKET, drive gear housing

2шт.

12

350306R21

HOUSING, drive gear, w/plug, 103869 and plug, 103870

2шт.

217-442

PLUG,3/4" - 14

pipe, sq-hd., 3/4"

2шт.

103870

PLUG, pipe, sq-hd., 1"

2шт.

13

ST512

BEARING, drive pinion inner hub

2шт.

14

350309R91

PINION, drive (44 teeth) w/six rivets, 104133

2шт.

104133

RIVET, rd-hd., 1/2 x 1-3/4"

12шт.

15

ST512

BEARING, drive pinion outer hub

2шт.

16

350270R1

GASKET, drive gear housing cover

2шт.

17

350308R1

COVER, drive gear housing

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8"

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

18

59964D

STUD, countershaft carrier (order bolt, 368795R1)

8шт.

19

350295R1

NUT, countershaft carrier stud (used only with stud, 59964D)

8шт.

20

350278R1

COVER, axle inner ball bearing

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14 NC x 1-1/4"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

21

350279R1

GASKET, axle inner ball bearing cover

2шт.

22

63206D

LOCK WASHER

LOCK, rear axle bearing retainer washer, inner

2шт.

22a

67399DX

WASHER, rear axle bearing retainer, inner, w/pin, 33659D

2шт.

181505

SCREW, cap, hex-hd., 3/4-16 NF x 1-1/2"

2шт.

22b

33659D

PIN, rear axle bearing retainer washer, inner, assembly

2шт.

23

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, axle, inner

2шт.

24

350280R11

PAN, oil, drive gear housing, w/plug, 103870

2шт.

103870

PLUG, pipe, sq-hd., 1"

2шт.

NLS

NO LONGER SERVICED

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

25

350281R2

GASKET, drive gear housing oil pan

2шт.

26

350275R11

GEAR, drive (57 teeth), w/six rivets, 104133

2шт.

104133

RIVET, rd-hd., 1/2 x 1-3/4"

12шт.

27

350311R5

AXLE, rear

2шт.

28

ST253

BALL BEARING,70 mm ID x 125 mm OD x 24 mm

BEARING, ball, axle, outer

2шт.

29

360457R91

SEAL

OIL SEAL, rear axle

2шт.

30

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

31

48950D

GASKET

axle ball bearing outer cover

2шт.

32

6727DBXA

CAGE

COVER, axle outer ball bearing, w/oil seal, 360457R91 and felt washer, 45085D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

33

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30deg. elbow, 1/8" (axle outer ball bearing) (optional with 109353)

2шт.

33

109353

FITTING, lubrication, 30deg. elbow, 1/8" (axle outer ball bearing) (optional with 109459)

2шт.

34

350312R1

RING, snap, rear axle

2шт.
