Запчасти Case IH 450-SERIES (322) - CHASSIS, TOOLS AND TOOL BOX (12) - CHASSIS

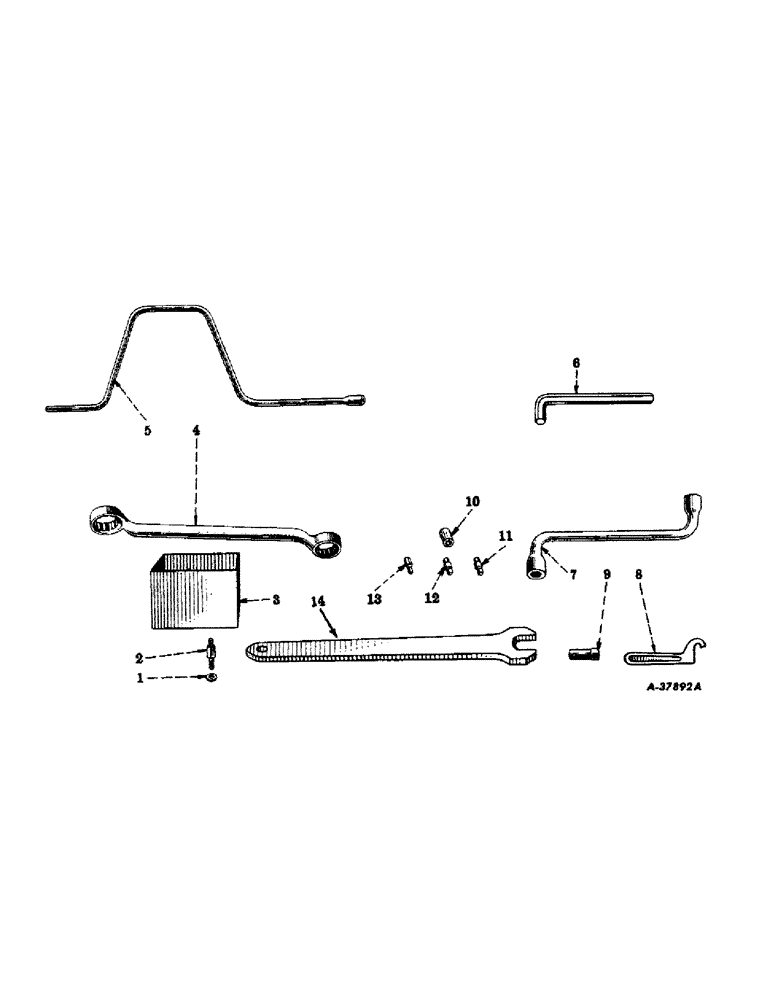

Схема запчастей Case IH 450-SERIES - (322) - CHASSIS, TOOLS AND TOOL BOX (12) - CHASSIS
14
5
6
7
9
10
4
2
11
1
12
8
3
13

Артикул

Название

Примечание

Количество

1

22828D

SPACER, tool box

1шт.

2

362609R1

STUD, mounting, tool box

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

3

362607R12

BOX, tool

1шт.

4

363021R1

WRENCH, box, double end

1шт.

5

30011DA

WRENCH, drawbar (special)

1шт.

6

57052D

HANDLE, spark plug wrench (for diesel engine tractors)

1шт.

7

66335D

WRENCH, socket, double end (used with heavy duty steel rear wheels)

1шт.

8

11858DA

WRENCH, water pump packing nut

1шт.

9

46190DC

TOOL

WRENCH, spark plug

1шт.

10

364675R91

ADAPTER, 1/2" square drive, w/set screw (adapts inserts for use with 1/2" square drive socket tools)

1шт.

11

364676R1

INSERT, 3/8" male square (for square socket pipe plugs)

1шт.

12

364677R1

INSERT, 5/16" male square (for square socket pipe plugs)

1шт.

13

364678R1

INSERT, 1/4" male square (for square socket pipe plugs)

1шт.

14

366106R1

WRENCH, jack screw (1-11/16") (for tractors equipped with power adjusted rear wheels)

1шт.

21372D

GREASE, distributor, tube of

1шт.

Выбрано товаров: 17
