Запчасти Case IH 450-SERIES (319) - CHASSIS, SEAT AND SUPPORT (12) - CHASSIS

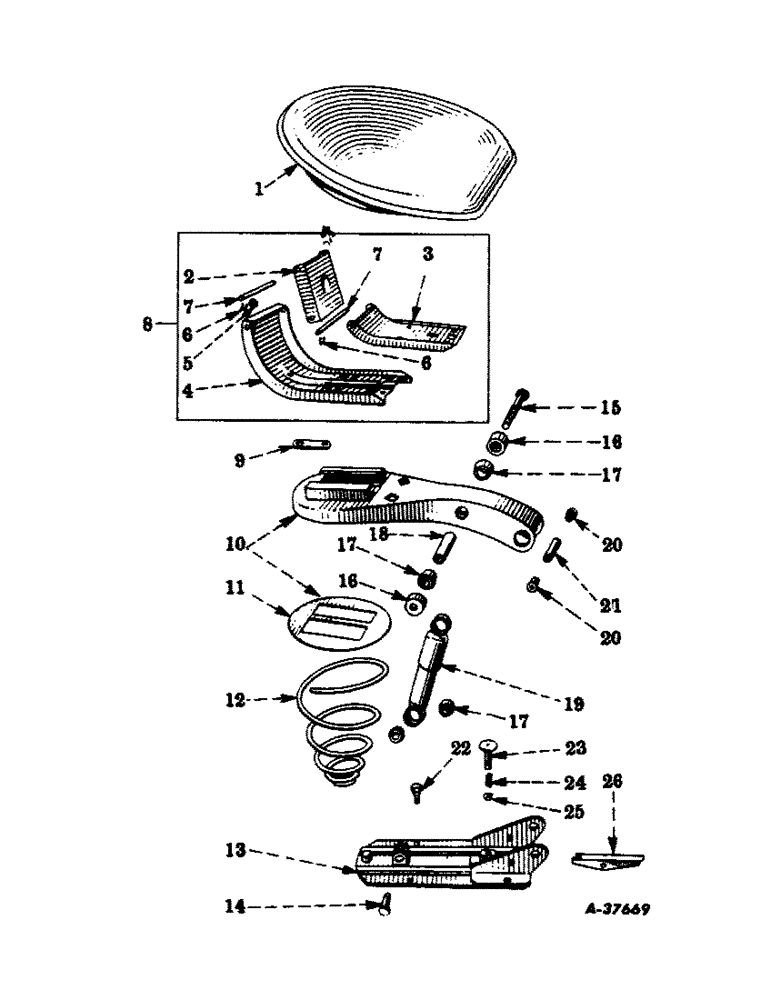

Схема запчастей Case IH 450-SERIES - (319) - CHASSIS, SEAT AND SUPPORT (12) - CHASSIS
21
24
7
10
1
20
14
6
20
9
23
12
17
25
19
17
6
4
16
11
13
18
22
16
2
17
8
5
15
3
7
26

Артикул

Название

Примечание

Количество

1

351880R92

SEAT

(plain)

1шт.

1

357518R91

DRIVER SEAT

SEAT (deluxe upholstered) (special)

1шт.

181392

BOLT,Hex, 7/16" - 20 x 11/16"

SCREW, cap, hex-hd., 7/16-20NF x 11/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

35895R2

HINGE (see note A)

1шт.

3

356896R2

RETAINER, seat (see note A)

1шт.

4

356897R3

BRACKET, seat adjustment (see note A)

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC (see note A)

4шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4" (see note A)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (See note A) 7/16"

4шт.

5

80158H

WASHER

SPACER (will work for 356894R1) (see note A)

2шт.

6

356893R2

WASHER

"X" (see note A)

4шт.

7

356892R2

PIN

hinge (see note A)

2шт.

8

356890R93

PARTS ACCESSORY, tilt back seat bracket (consists of bracket, 356891R93, five nut, 271500, five screw, 179856 and five washer, 103322)

1шт.

8

356891R93

BRACKET, tilt back seat, assembly (see note A) composed of (1) bracket 356897R3, (1) hinge 356895R2, (2) pin 356892R2, (1) retainer 356896R2, (2) spacer 80158H, (4) washer 356893R2

1шт.

9

352118R1

CLIP, trip rope

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC (see note A)

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4" (see note A)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (See note A) 7/16"

1шт.

10

352599R94

BRACKET, seat support, w/gasket, 352100R1

1шт.

11

352100R1

GASKET

conical spring

1шт.

12

354671R2

SPRING

conical (3 identifying notches) (for light-weight operators)

1шт.

12

352598R2

SPRING

conical (4 identifying notches) (for medium-wieght operators)

1шт.

12

354670R2

VALVE SPRING

SPRING, conical (5 identifying notches) (for heavy-weight operators)

1шт.

13

355750R12

PLATE, seat mounting

1шт.

14

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor, lower

1шт.

425-117

NUT,7/16"-20, G5

hex., 7/16-20NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

cap, hex-hd., 7/16-20NF x 3-1/2" (shock absorber anchor, upper)

1шт.

354732R1

NUT, lock, shock absorber anchor bolt (upper)

1шт.

16

354731R1

TUBE

SPACER, shock absorber bushing

2шт.

17

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot

4шт.

18

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing

1шт.

19

351750R93

SHOCK ABSORBER

ABSORBER, shock

1шт.

20

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING, seat support pivot rod, (5/8" I.D., 1" O.D., 1-3/16" long)

2шт.

21

355753R1

PIN,15.88mm OD x 88.9mm L

ROD, seat support pivot

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

358268R2

BOLT,1/2" - 20 x 1 1/2"

seat mounting

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

353309R1

SPACER

upper, seat mounting

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

353649R1

WASHER, lower, seat mounting bolt

4шт.

23

352600R91

PIN

LOCATOR, seat

1шт.

24

352105R1

SPRING

seat locator

1шт.

25

351128R1

WASHER

RETAINER, seat locator

1шт.

26

362671R1

LEVER, seat positioner release

1шт.

551172R1

NUT

hex., stover lock, 5/16-18NC

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

1шт.

351438R93

PAD

detachable seat (rubber) (special)

1шт.

359483R91

PAD

detachable seat (jute) (special)

1шт.

355749R93

1шт.

UNIT, seat suspension, assembly, composed of (1) absorber 351750R93, (1) bolt 351751R1, (1) bracket 352599R94, (4) bushing 72696R1, (2) bushing 361140R1, (1) lever 362671R1, (1) locator 352600R91, (1) nut 354732R1, (1) nut 271505, (1) nut 551172R1, (1) plate 355750R12, (1) retainer 351128R1, (1) rod 355753R1, (1) screw 181413, (2) screw 181427, (1) screw 186273, (2) spacer 354731R1, (1) spring 352105R1, (1) spring 354671R2, (1) tube 354730R1, (1) washer 103322, (2) washer 103323

1шт.
