Запчасти Case IH 450-SERIES (317) - CHASSIS, REAR WHEEL, STEEL, EXTENSION TIRES & LUGS, SPECIAL (12) - CHASSIS

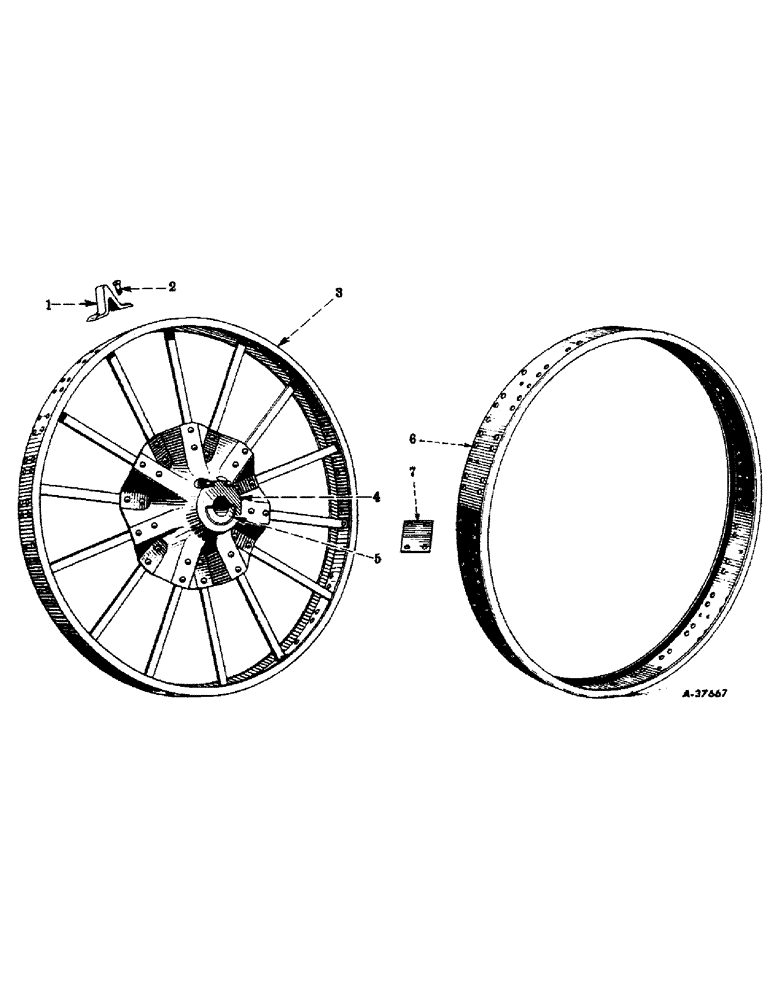

Схема запчастей Case IH 450-SERIES - (317) - CHASSIS, REAR WHEEL, STEEL, EXTENSION TIRES & LUGS, SPECIAL (12) - CHASSIS
5
1
3
4
7
6
2

Артикул

Название

Примечание

Количество

57460DA

PARTS ACCESSORY, spade lug (5" high x 3" wide)

1шт.

58039DA

PARTS ACCESSORY, spade lug (5" high x 3" wide) (used only on tractors equipped with rear wheel extension tires)

1шт.

66112D

PARTS ACCESSORY, spade lug (6" high x 3" wide)

1шт.

66247D

PARTS ACCESSORY, spade lug (4" high x 3" wide) (used only on tractors equipped with rear wheel extension tires)

1шт.

1

57459DA

LUG, spade (5" high x 3" wide) (for parts accessory, 58039DA)

28шт.

1

57459DA

LUG, spade (5" high x 3" wide) (for parts accessory, 57460DA)

56шт.

1

59181D

LUG, spade (6" high x 3" wide) (for parts accessory, 66112D)

56шт.

1

66075D

LUG, space (4" high x 3" wide) (for parts accessory, 66247D)

28шт.

2

63137D

BOLT, spade lug (for parts accessory, 58039DA, 66247D)

56шт.

102639

NUT,5/8"-11, G5

56шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

56шт.

2

63137D

BOLT, spade lug (for parts accessory, 57460DA, 66112D)

112шт.

102639

NUT,5/8"-11, G5

112шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

112шт.

354759R91

PARTS ACCESSORY, rear wheel (see note A) composed of (1) screw 49637D, (8) screw 179982, (8) washer 103327, (8) washer PO12898, (2) wheel 66074DB, (1) wrench 66335D

1шт.

3

66074DB

WHEEL, rear, w/clamp, 9556DB less lugs

2шт.

4

9557DBX

HUB, rear wheel, assembly, composed of (1) clamp 9556DB, (1) hub 9557DB (NSS), (4) screw 179982, (4) washer 103327, (4) washer PO12898

2шт.

5

9556DB

CLAMP, rear wheel hub

2шт.

363656R1

SCREW, cap, rear wheel hub clamp

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

8шт.

PO12898

WASHER

plain, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga.

8шт.

49637D

SCREW, fifth speed lockout

1шт.

66335D

WRENCH, double end socket

1шт.

49236DB

PARTS ACCESSORY, rear wheel extension tire (for tractors equipped with steel rear wheels)

1шт.

6

49212DB

TIRE, extension, rear wheel

2шт.

7

57172D

PLATE, fastening, rear wheel extension tire (used under lugs)

14шт.

13319R1

BOLT, machine, sq-hd., 5/8-11NC x 1-3/4" (spade lug), rear wheel extension tire

28шт.

102639

NUT,5/8"-11, G5

Rear wheel extension tire 5/8"-11, G5

28шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel extension tire 5/8"

28шт.

Выбрано товаров: 29
