Запчасти Case IH 450-SERIES (314) - CHASSIS, REAR WHEELS, PNEUMATIC TIRE (12) - CHASSIS

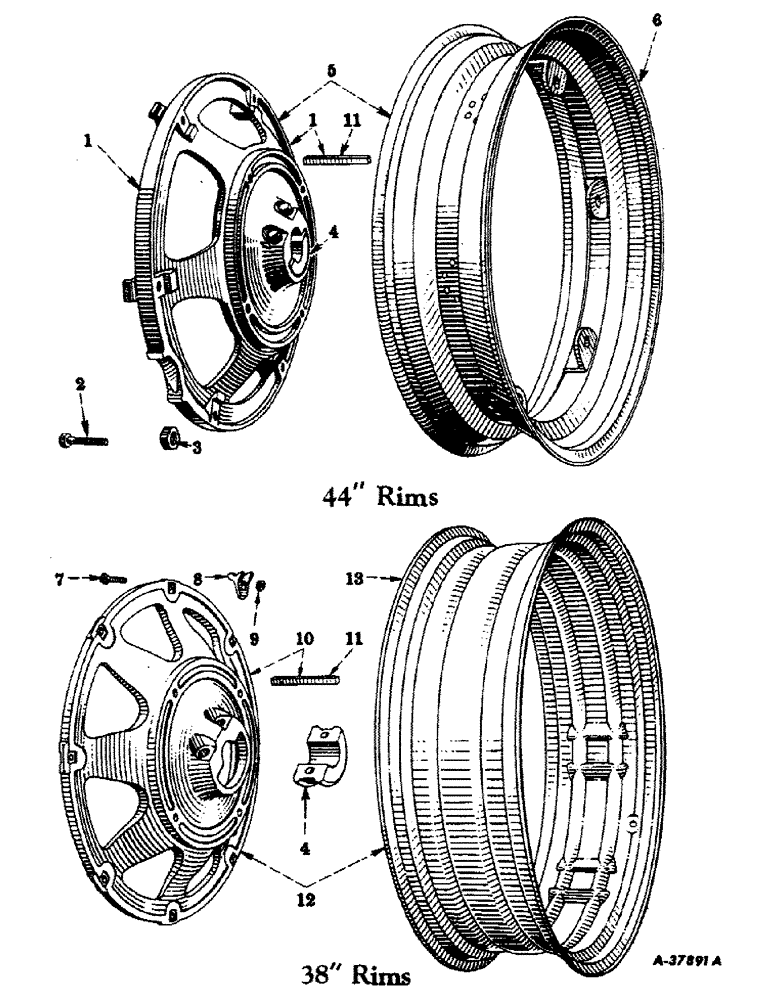

Схема запчастей Case IH 450-SERIES - (314) - CHASSIS, REAR WHEELS, PNEUMATIC TIRE (12) - CHASSIS
1
11
13
9
7
4
12
4
6
6
2
10
3
11
1
8

Артикул

Название

Примечание

Количество

1

355439R2

WHEEL, rear (order 365344R91) (see note B)

2шт.

1

365344R91

WHEEL, rear, 365345R11, w/two clamps, 355440R2, two screws, 271686 and four washers, PO12898 (will work for 355439R2)

2шт.

1

365345R11

WHEEL, rear, w/key, 363015R2

2шт.

2

357523R1

BOLT, rear wheel rim clamp (see note B)

12шт.

3

352777R1

NUT

rear wheel rim mounting (see note B)

12шт.

4

355440R2

CLAMP

hub, rear wheel

4шт.

271686

SPRING

SCREW, cap, hex-hd., 7/8-14NF x 4"

8шт.

PO12898

WASHER

plain, 29/32" ID x 1-1/2" OD x no. 11 ga. (used on wheel, 365345R11)

8шт.

5

357524R93

WHEEL, rear, w/8.00T x 44 rim, assembly (see note B) composed of (6) bolt 357523R1, (2) clamp 355440R2, (6) nut 352777R1, (1) rim 357525R91, (4) screw 271686, (4) washer 12898, (1) wheel 365345R11

2шт.

6

357525R91

RIM, rear wheel, w/clamps (8.00T x 44 rim for 12-44 tire) (see note B)

2шт.

7

363017R1

BOLT,5/8" - 18 x 2 1/4"

rear wheel rim clamp (see note C)

16шт.

8

363016R1

CLAMP

rear wheel rim (see note C)

16шт.

9

363018R1

NUT

rim clamp bolt (see note C)

16шт.

10

363014R41

WHEEL, rear, w/key, 363015R2 (see note C)

2шт.

11

363015R2

KEY

drive, rear wheel

2шт.

12

363034R94

WHEEL, rear, w/W11-38 rim, assembly (see note C) composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018r1, (1) rim 363022R1, (4) screw 271686, (1) wheel 363014R41

2шт.

12

363033R94

WHEEL, rear, w/W12-38 rim, assembly (see note C) composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018R1, (1) rim 363023R1, (4) screw 271686, (1) wheel 363014R31

2шт.

12

365947R92

WHEEL, rear, w/W14-38 rim, assembly (see note C) composed of (8) bolt 363017R1, (2) clamp 355440R2, (8) clamp 363016R1, (8) nut 363018R1, (1) rim 365946R1, (4) screw 271686, (1) wheel 363014R41

2шт.

13

363022R1

RIM

rear wheel (W11-38 rim for 11-38 or 12-38 or 12.4-38 tire) (see note C)

2шт.

13

363023R1

RIM

rear wheel (W12-38 rim for 12-38 or 13-28 or 13.6-38 tire) (see note C)

2шт.

13

365946R1

RIM

rear wheel (W14-38 rim for 15.5-38 tire) (see note C)

2шт.

Выбрано товаров: 21
