Запчасти Case IH 450-SERIES (312) - CHASSIS, REAR WHEELS, PNEUMATIC TIRE (12) - CHASSIS

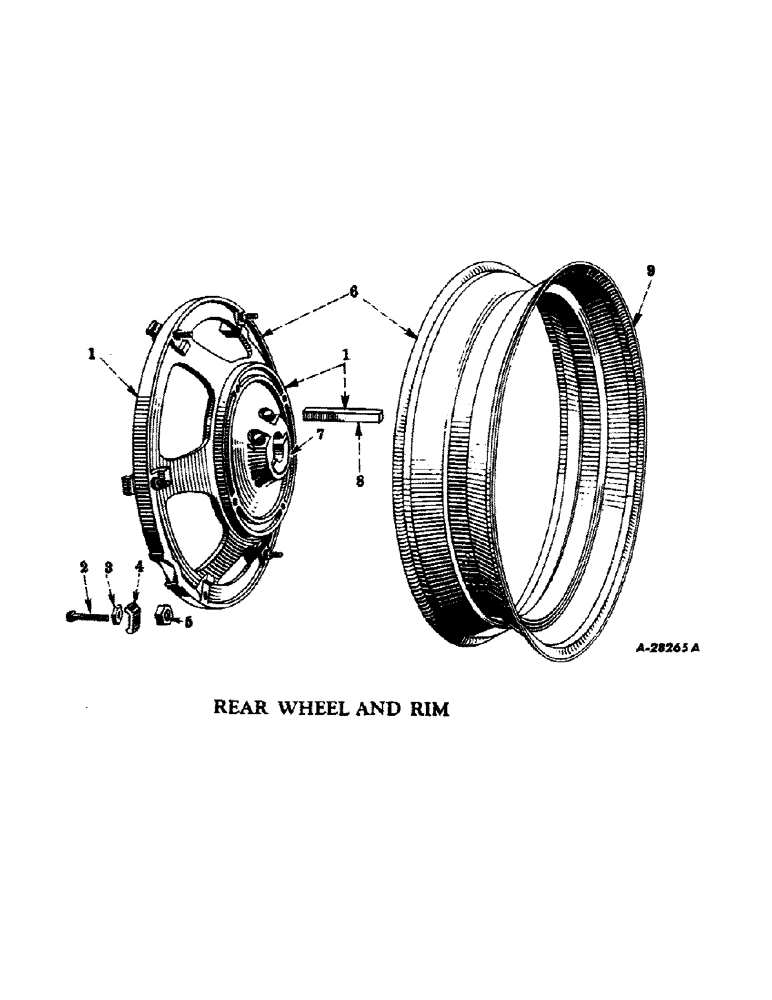

Схема запчастей Case IH 450-SERIES - (312) - CHASSIS, REAR WHEELS, PNEUMATIC TIRE (12) - CHASSIS
1
8
5
1
7
3
4
9
6
2

Артикул

Название

Примечание

Количество

1

6325DF

WHEEL, rear (Farmall 400 and 400 diesel) (order 365344R91)

2шт.

1

355439R2

WHEEL, rear (Farmall 400 hi-clear and 400 diesel hi-clear) (order 365344R91)

2шт.

1

365344R91

WHEEL, rear, 365345R11, w/two clamps, 355440R2, two screws, 271686 and four washers, PO-12 898 (will work for 6325DF and 355439R2)

2шт.

1

365345R11

WHEEL, rear, w/key, 363015R2

2шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp (used with clamp, 48984D)

12шт.

3

351833R1

NUT

jam, rear wheel rim mounting

12шт.

4

48984D

CLAMP

rear wheel rim

24шт.

5

351832R1

NUT

rear wheel rim mounting

12шт.

6

355042R93

WHEEL, rear, w/DW11-38 rim, assembly (Farmall 400 and 400 diesel) composed of (6) bolt 48985DA, (2) clamp 355440R2, (12) clamp 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (4) screw 271686, (4) washer PO2898, (1) wheel 365345R11

2шт.

6

355028R94

2шт.

WHEEL, rear, w/DW11-38 rim, assembly (Farmall 400 hi-clear and 400 diesel hi-clear) composed of (6) bolt 48985DA, (12) clamp 48984D, (2) clamp 355440R2, (6) nut 351832R1, (6) nut 351833R1, (1) rim 55564D, (4) screw 271686, (4) washer PO12898, (1) wheel 355439R1

1шт.

6

359215R93

2шт.

WHEEL, rear, w/DW12-38 rim, assembly (Farmall 400 and 400 diesel) composed of (6) bolt 48985DA, (2) clamp 355440R2, (12) clamp 48984D, (6) nut 351832R1, (6) nut 351833R1, (1) rim 359221R91, (4) screw 271686, (4) washer PO12898, (4) washer Q3478, (1) wheel 365345R11

1шт.

7

6326DC

CLAMP

rear wheel hub (used on wheel, 6325DF)

2шт.

179961

SCREW, cap, hex-hd., 3/4-10NC x 4-1/4"

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 14 ga.

8шт.

7

355440R2

CLAMP

hub, drive wheel (used on wheel, 355439R2 and 365345R11)

4шт.

14-1464

BOLT,Hex, 7/8" - 14 x 4", Gr 5

SCREW, cap, hex-hd., 7/8-14NF x 4"

8шт.

PO12898

WASHER

plain, 29/32" ID x 1-1/2" OD x no. 11 ga. (used on wheel, 365345R11)

8шт.

8

363015R2

KEY

drive, rear wheel (used on wheel, 365345R11)

2шт.

9

55564D

RIM, rear wheel (DW11-38 for 11-38 or 12-38 or 13-38 tire)

2шт.

9

359221R91

RIM, rear wheel (DW12-38 for 13-38 tire)

2шт.

Выбрано товаров: 23
