Запчасти Case IH 450-SERIES (306) - CHASSIS, REAR AXLE, (FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS) (12) - CHASSIS

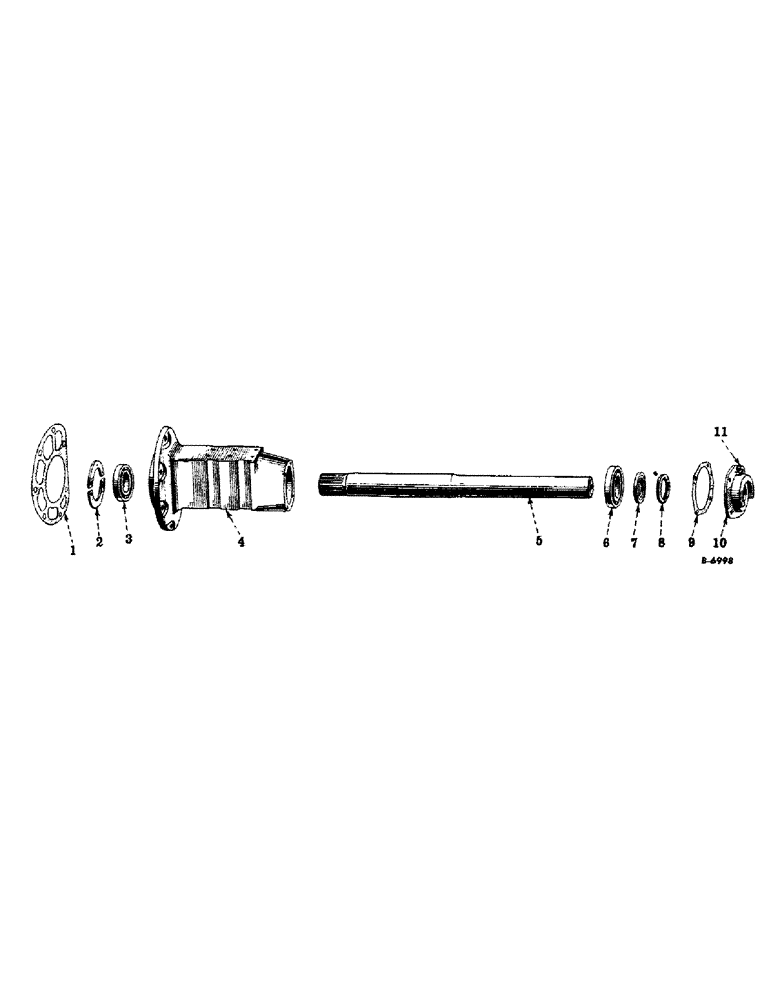

Схема запчастей Case IH 450-SERIES - (306) - CHASSIS, REAR AXLE, (FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS) (12) - CHASSIS
3
8
9
5
1
4
7
6
10
11
2

Артикул

Название

Примечание

Количество

1

47670DB

GASKET

rear axle carrier

2шт.

2

353160R1

RETAINER, rear axle ball bearing, inner

4шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

ST223

BALL BEARING

BEARING, ball, rear axle, inner

2шт.

4

6734DB

CARRIER, rear axle, L.H.

1шт.

4

6735DB

CARRIER, rear axle, R.H.

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

5

51572DC

AXLE, rear

2шт.

5

52147DD

AXLE, rear (for wide tread rear axle) (special) (see note A)

2шт.

6

ST310A

BALL BEARING,70mm ID x 125mm OD x 24mm W

BEARING, ball, rear axle, outer (Replaces ST310)

2шт.

7

360457R91

SEAL

OIL SEAL, rear axle

2шт.

8

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

9

48950D

GASKET

rear axle carrier cap

2шт.

10

6727DBXA

CAGE

CAP, rear axle carrier, w/oil seal, 360457R91 and washer 45085D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (rear axle outer bearing)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Rear axle outer bearing) (optional with 119512) 1/8"-27 x .66 lg

2шт.

Выбрано товаров: 20
