Запчасти Case IH 450-SERIES (300) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, FOR ALL HI-CLEAR TRACTORS (12) - CHASSIS

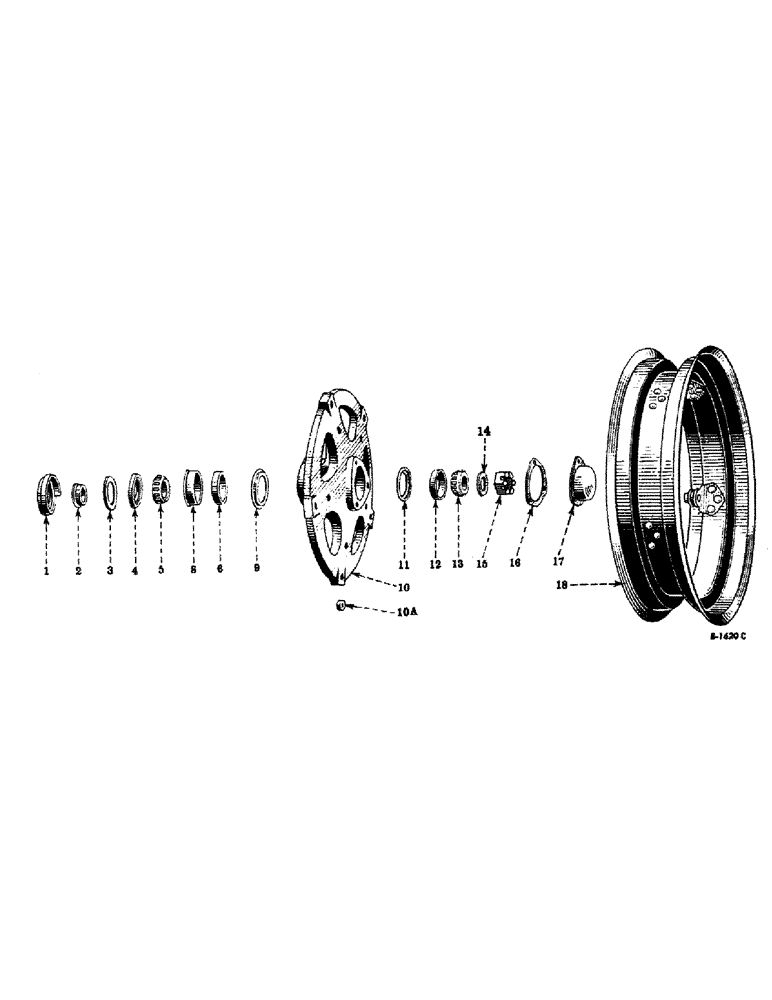

Схема запчастей Case IH 450-SERIES - (300) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, FOR ALL HI-CLEAR TRACTORS (12) - CHASSIS
11
8
13
18
10
17
3
6
5
16
15
9
12
4
1
14
10a
2

Артикул

Название

Примечание

Количество

354987R92

WHEEL, front, w/rim, assembly (see note B) composed of (1) gasket 48547D, (5) nut 352777R1, (1) rim 65167D, (5) screw 181779, (5) washer 103325, (5) washer 103345, (1) wheel 9504DXB

2шт.

357517R92

WHEEL, front, w/rim, assembly (see note B) composed of (1) gasket 48547D, (5) nut 352777R1, (1) rim 357516R91, (5) screw 181779, (5) washer 103325, (5) washer 103345, (1) wheel 9504DXB

2шт.

359028R92

WHEEL, front, w/rim, assembly (see note B) composed of (1) gasket 48547D, (5) nut 352777R1, (1) rim 359027R91, (5) screw 181779, (5) washer 103325, (5) washer 103345, (1) wheel 9504DXB

2шт.

1

48701D

SHIELD

dust, front wheel

2шт.

2

51901D

SPACER

front wheel bearing

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (not used with triple lip design oil seals, 48704DA and 367161R91)

2шт.

4

48704DA

OIL SEAL

OIL SEAL, front wheel (optional with 367161R91)

2шт.

4

367161R91

OIL SEAL

front wheel (optional with 48704DA)

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, front wheel inner bearing

2шт.

6

ST882

CUP

front wheel inner roller bearing

2шт.

8

48703D

RETAINER

front wheel felt washer

2шт.

9

60290DA

RETAINER

grease, front wheel bearing, inner

2шт.

10

9504DXB

WHEEL, front, assembly (see note B) composed of (1) cup 451495R1, (1) cup ST882, (1) retainer 48703D, (1) retainer 60290DA, (1) retainer 60291D, (1) wheel 9504D (NSS)

2шт.

10a

352777R1

NUT

front wheel rim mounting, cd-pltd.

10шт.

11

60291D

RETAINER

grease, front wheel bearing, outer

2шт.

12

ST869

CUP ASSY.

CUP, front wheel outer roller bearing, Farmall 400 Series, Farmall 450 Series, Serial Range: 501-1147

2шт.

12

451495R1

BEARING ASSY,1.125" ID x 73 mm OD x 17.5 mm

CUP, front wheel outer roller bearing, (optional with 456200R1) Farmall 450 Series, 1148 up

2шт.

12

456200R1

CUP

front wheel outer roller bearing, (optional with 451495R1) Farmall 450 Series, 1148 up

2шт.

13

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

CONE, front wheel outer roller bearing, Farmall 400 Series, Farmall 450 Series, 501 to 1147

2шт.

13

365433R91

BEARING

CONE, front wheel outer roller bearing, (optional with 367836R91) Farmall 450 Series, 1148 up

2шт.

13

367836R91

CONE

front wheel outer roller bearing, (optional with 365433R91) Farmall 450 Series, 1148 up

2шт.

14

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.

15

361138R1

NUT

front wheel outer bearing retainer

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

16

48547D

GASKET

front wheel hub cap

2шт.

17

48546DB

CAP

front wheel hub (will work for 365127R1)

2шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

65167D

RIM, front wheel (4.50 E x 20 DC for 6.00 x 20 tire)

2шт.

18

357516R91

RIM, front wheel (W6-24 for 7.50 x 24 tire)

2шт.

18

359027R91

RIM, front wheel (5.50 F x 20 for 7.50 x 20 tire)

2шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 2-1/2"

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

131016

WASHER

plain, cd-pltd., 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

10шт.

361295R91

PACKAGE

overhaul, front wheel bearing, consists of (1) cone 365433R91, (1) cone ST781A, (1) cup 451495R1, (1) cup ST882, (1) gasket 48547D, (1) oil seal 48704DA, (1) retainer 48703DA, (1) washer 48702D

1шт.

Выбрано товаров: 35
