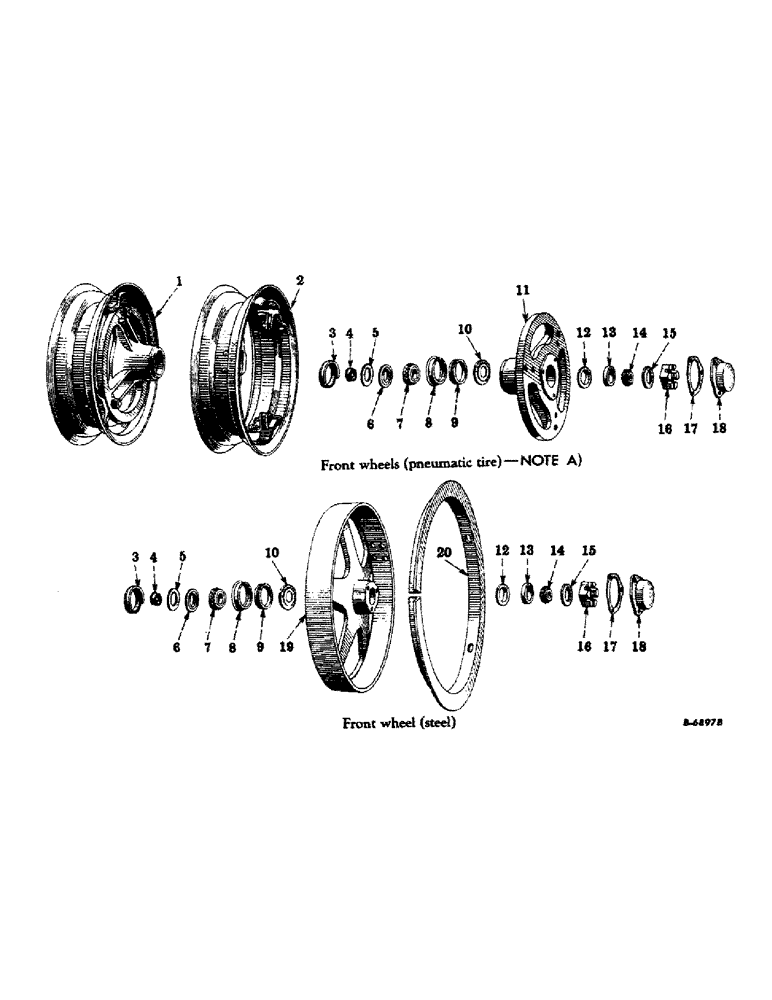

Запчасти Case IH 450-SERIES (297) - CHASSIS, FRONT WHEELS, FOR ALL TRACTORS EXCEPT HI-CLEAR TRACTORS (12) - CHASSIS

367773R91

PARTS ACCESSORY, front wheel and rim (used w/adjustable wide tread front axle attachment, 360400R92, when applied on tractors previously equipped w/single front wheel attachment)

1шт.

1

355036R93

WHEEL, front, w/rim, assembly (see note B) composed of (1) wheel 8284DBXA, (1) gasket 48547D, (3) nut 352777R1, (1) rim 354246R91, (3) screw 181784, (3) washer, 121574, (3) washer, 131016

2шт.

354246R91

RIM

front wheel (4.25 KA - 16 DC rim for 6.00 or 6.50 - 16 tires)

2шт.

352777R1

NUT

mounting, front wheel rim

6шт.

181784

SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 3"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

NLS

NO LONGER SERVICED

plain, cd-pltd., 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

6шт.

3

48701D

SHIELD

dust, front wheel

2шт.

4

51901D

SPACER

front wheel bearing (for tractors equipped with adjustable wide tread front axle)

2шт.

5

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (not used with triple lip design oil seals, 48704DA and 367161R91)

2шт.

6

48704DA

OIL SEAL

OIL SEAL, front wheel (optional with 367161R91)

2шт.

6

367161R91

OIL SEAL

front wheel (optional with 48704DA)

2шт.

7

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, front wheel inner bearing

2шт.

8

48703D

RETAINER

felt washer, front wheel

2шт.

9

ST882

CUP

front wheel inner bearing

2шт.

10

60290DA

RETAINER

grease, front wheel bearing, inner

2шт.

11

8284DBXA

WHEEL, front, assembly (see note B) composed of (1) cup 451495R1, (1) cup ST882, (1) wheel 8284DB (NSS), (1) retainer 48703D, (1) retainer 60290DA, (1) retainer 60291D

2шт.

12

60291D

RETAINER

grease, front wheel bearing, outer

2шт.

13

ST869

CUP ASSY.

CUP, front wheel outer roller bearing, Farmall 400 Series, Farmall 450 Series, Serial Range: 501-1147

2шт.

13

451495R1

BEARING ASSY,1.125" ID x 73 mm OD x 17.5 mm

CUP, front wheel outer roller bearing (optional with 456200R1) Farmall 450 Series, 1148 up

2шт.

13

456200R1

CUP

front wheel outer roller bearing (optional with 451495R1) Farmall 450 Series, 1148 up

2шт.

14

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

CONE, front wheel outer roller bearing, Farmall 400 Series, Farmall 450 Series, 501 to 1147

2шт.

14

365433R91

BEARING

CONE, front wheel outer roller bearing, (optional with 367836R91) Farmall 450 Series, 1148 up

2шт.

14

367836R91

CONE

front wheel outer roller bearing, (optional with 365433R91) Farmall 450 Series, 1148 up

2шт.

15

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.

16

361138R1

NUT

front wheel outer bearing retainer

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

17

48547D

GASKET

front wheel hub cap

2шт.

18

48546DB

CAP

front wheel hub (will work for 365127R1)

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

6738DCXB

WHEEL, front, w/o skid ring, assembly (see note B and C) composed of (1) cup ST882, (1) cup 451495R1, (1) retainer 48703D (1) retainer 60290DA, (1) retainer 60291D, (1) wheel 6738DC

2шт.

19

6738DCYB

WHEEL, front, w/skid ring, assembly (see note B) composed of (6) bolt 13293R1, (6) nut 102637, (1) ring 48565DA, (6) washer 103323, (1) wheel 6738DCXB

2шт.

20

48565DA

RING, skid, front wheel, 2" high (standard)

2шт.

20

53014DA

RING, skid, front wheel, 2-1/2" high (special) (optional with 67893DA) (see note A)

2шт.

20

67893DA

RING, skid, front wheel, 2-1/2" high (special) (optional with 53014DA) (see note A)

2шт.

13293R1

BOLT

machine, sq-hd., 1/2-13NC x 1-1/2"

12шт.

102637

NUT,1/2"-13, G5

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

361295R91

PACKAGE

overhaul, front wheel bearing, consists of (1) cone 365433R91, (1) cone ST781A, (1) cup 451495R1, (1) cup ST882, (1) gasket 48547D, (1) oil seal 48704DA, (1) retainer 48703D, (1) washer 48702D

1шт.
