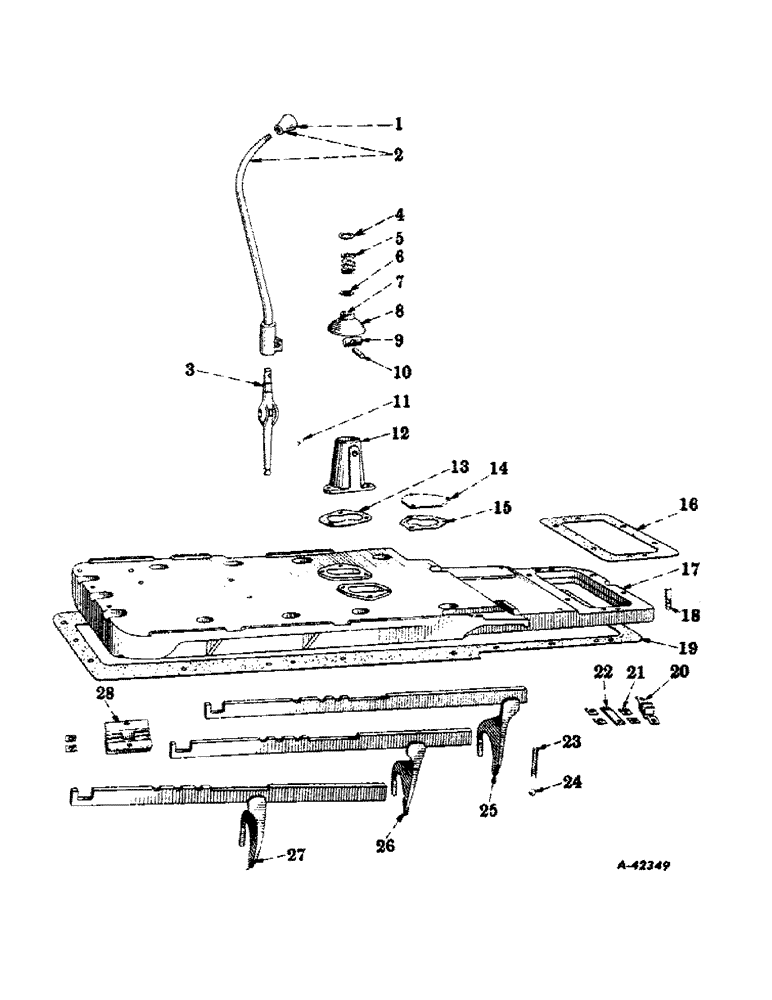

Запчасти Case IH 450-SERIES (284) - CHASSIS, GEAR SHIFTER MECHANISM AND REAR FRAME COVER-REVERSE OPERATION (12) - CHASSIS

1

53717DA

BUTTON

BALL, gear shift lever

1шт.

2

364387R91

HANDLE, gear shift lever, w/ball, 53717DA

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

364162R1

LEVER

END, gear shift lever

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

4

1657E

STOP

gear shift lever spring, upper

1шт.

5

29547D

SPRING

gear shift lever

1шт.

6

1657E

STOP

gear shift lever spring, lower

1шт.

7

20887DA

BUSHING, gear shift lever swivel housing shield (used with shield, 42496DXA)

1шт.

8

42496DXA

SHIELD, gear shift swivel housing (sheet steel) w/bushing, 20887DA (order 355889R2)

1шт.

8

355889R2

SHIELD

gear shift swivel housing (aluminum) (will work for 42496DXA)

1шт.

9

256918R11

DOWEL

SHAFT, gear shift lever (large), w/two plugs, 172529

1шт.

10

256919R11

HITCH PIN

SHAFT, gear shift lever (small), w/two plugs, 172529

1шт.

11

172529

PLUG

gear shift lever swivel housing hole

2шт.

12

361569R21

HOUSING, swivel, gear shift, w/two plugs, 172529

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

361687R1

GASKET

gear shift swivel housing

1шт.

14

361802R1

COVER, gear shift opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

361687R1

GASKET

gear shift opening cover

1шт.

16

49054DB

GASKET

pulley drive opening cover

1шт.

17

361566R31

COVER, rear frame, w/screw, 179837 and washer, 103321

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Plug 5th speed lockout screw hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

18

355174R1

STUD, pulley drive housing

1шт.

19

361368R2

GASKET

rear frame cover

1шт.

20

358888R91

GUIDE

gear shifter rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

59473D

LOCK

gear shifter rail guide bolt

6шт.

22

358887R1

PLATE, stop, gear shifter rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

41058DA

SPRING

gear shifter poppet

4шт.

24

13722D

BALL

POPPET, gear shifter (optional with D2616)

4шт.

24

D2616

BALL

POPPET, gear shifter (optional with 13722D)

4шт.

25

360281R91

FORK and RAIL, shifter, fourth and fifth speed

1шт.

26

360279R91

FORK and RAIL, shifter, second and third speed

1шт.

27

360278R91

FORK and RAIL, shifter, first and reverse speed

1шт.

28

355739R91

GUIDE

gear shift rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
