Запчасти Case IH 450-SERIES (278) - CHASSIS, TRANSMISSION, BALL BEARING, 5 SPEEDS FORWARD, ONE REVERSE (12) - CHASSIS

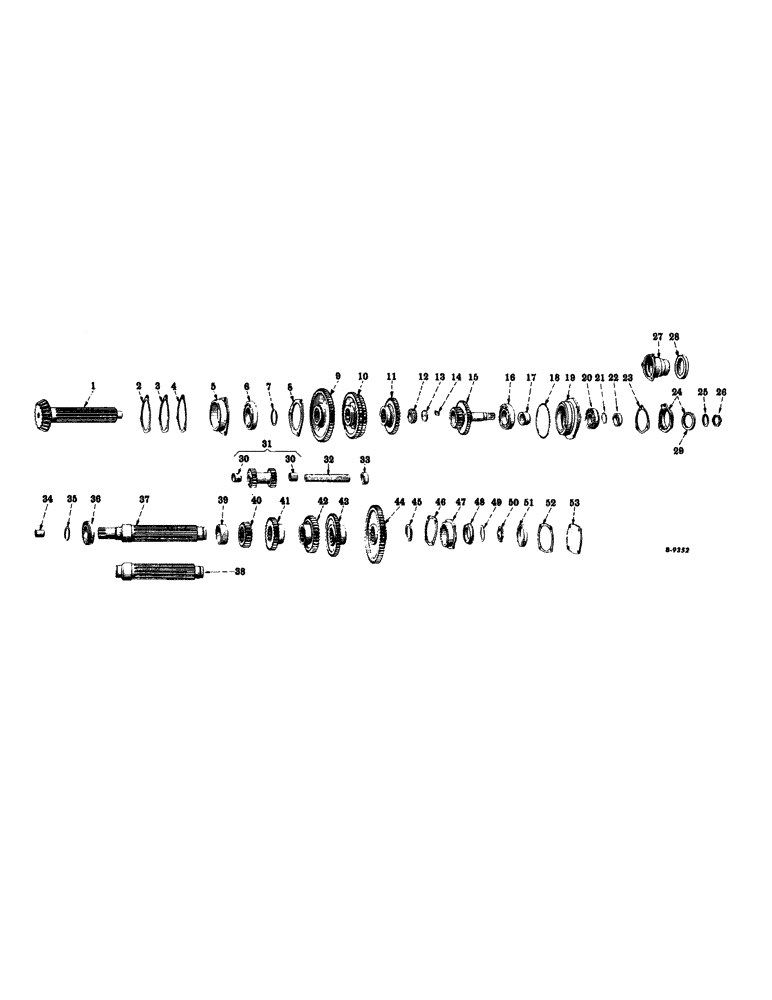

Схема запчастей Case IH 450-SERIES - (278) - CHASSIS, TRANSMISSION, BALL BEARING, 5 SPEEDS FORWARD, ONE REVERSE (12) - CHASSIS
26
23
1
37
45
18
21
53
22
12
19
30
40
48
7
4
16
20
30
9
50
44
41
31
6
42
24
29
49
36
27
3
35
17
11
43
8
33
14
46
32
25
51
28
39
47
52
34
2
13
38
10
5
15

Артикул

Название

Примечание

Количество

1

358861R1

SHAFT

transmission main, w/pinion (19 teeth) (for all tractors except hi-clear models)

1шт.

1

358897R1

SHAFT, transmission main, w/pinion (19 teeth) (for hi-clear tractors)

1шт.

2

48725D

SHIM, transmission main shaft bearing gage, light (.007")

1шт.

3

48724D

SHIM, transmission main shaft bearing gage, medium (.015")

1шт.

4

48723D

SHIM, transmission main shaft bearing gage, heavy (.030")

1шт.

5

8214DA

CAGE, transmission main shaft rear bearing (for hi-clear tractors)

1шт.

5

358862R1

CAGE, transmission main shaft rear bearing (for all tractors except hi-clear models)

1шт.

6

ST218

BEARING

ball, transmission main shaft, rear

1шт.

7

357035R1

RING

snap, transmission main shaft rear bearing

1шт.

8

358863R1

RETAINER, transmission main shaft rear bearing (for all tractors except hi-clear models)

1шт.

8

358899R1

RETAINER, transmission main shaft rear bearing (for hi-clear tractors)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

9

359465R1

GEAR, sliding, first and reverse speed (52 teeth)

1шт.

10

358865R1

GEAR

sliding, second and third speed (45 and 41 teeth)

1шт.

11

358866R1

GEAR, sliding, fourth and fifth speed (35 and 20 teeth)

1шт.

12

359173R91

BEARING, ROLLER, CYL,34.99mm ID x 62.43mm OD x 27.5mm W

roller, transmission main shaft, front

1шт.

13

358867R1

WASHER, transmission main shaft pilot bearing retainer

1шт.

14

358868R1

PLATE, lock, transmission main shaft pilot bearing retainer screw

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

2шт.

15

358869R1

SHAFT, transmission driving (20 and 39 teeth) (see note A)

1шт.

16

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, ball, transmission driving shfat, rear (see note A)

1шт.

17

358872R1

SPACER, driving shaft bearing (see note A)

1шт.

18

359018R1

O-RING,0.551" ID x 0.07" Width

RING, seal, transmission driving shaft bearing cage (see note A)

1шт.

19

359017R1

CAGE, transmission driving shaft bearing (see note A)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

transmission driving shaft, front (see note A)

1шт.

21

358873R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

RING, seal, transmission driving shaft front bearing spacer (see note A)

1шт.

22

358874R1

BUSHING

SPACER, transmission driving shaft front bearing (see note A)

1шт.

23

356679R1

GASKET

transmission driving shaft front bearing retainer (see note A)

1шт.

24

359975R91

RETAINER

transmission driving shaft front bearing, w/oil seal, 56630H (see note A and B)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

358875R1

WASHER

transmission driving shaft front bearing nut (see note A)

1шт.

26

358876R1

LOCK NUT

lock, transmission driving shaft front bearing (see note A)

1шт.

27

360007R11

HUB

RETAINER, transmission driving shaft front bearing, w/oil seal, 56630H (for tractors equipped with independent power take-off drive) (see note S)

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer (for tractors equipped with independent power take-off drive) (see note S)

1шт.

29

56630H

SEAL

OIL SEAL, transmission driving shaft (see note A)

1шт.

30

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

reverse idler gear

2шт.

31

358880R12

GEAR, reverse idler (17 and 17 teeth), w/two bushings, 48841D

1шт.

32

358879R1

SHAFT, reverse idler

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

41047D

PLUG, reverse idler shaft cup (in rear frame)

1шт.

34

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, power take-off shaft (see note A and B)

1шт.

35

358236R1

RING

snap, countershaft rear bearing

1шт.

36

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

countershaft, rear

1шт.

37

358844R11

COUNTERSHAFT, transmission, assembly (see note A and B) composed of (1) bushing 43328D, (1) pin 358846R1 (NSS), (1) shaft 358844R1 (NSS), (1) stub shaft 358845R1 (NSS)

1шт.

38

359697R1

COUNTERSHAFT, transmission (for tractors equipped with independent power take-off drive or torque amplifier) (will work for 358844R1) (see note S)

1шт.

39

358855R1

SPACER, first speed driving gear

1шт.

40

358856R1

GEAR, driving, first speed (21 teeth)

1шт.

41

358857R1

GEAR

driving, second speed (28 teeth)

1шт.

42

358858R1

GEAR

driving, third speed (32 teeth) (optional with 359466R1)

1шт.

42

358859R2

GEAR, driving, third speed (32 teeth) (optional with 358858R1)

1шт.

43

358859R2

GEAR, driving, fourth speed (38 teeth) (optional with 359467R2)

1шт.

43

359467R2

GEAR, driving, fourth speed (38 teeth) (optional with 358859R2)

1шт.

44

358860R1

GEAR, constant mesh (54 teeth)

1шт.

45

358847R1

SPACER, constant mesh gear

1шт.

46

358850R1

GASKET

countershaft front bearing gage

1шт.

47

358849R2

CAGE, countershaft front bearing

1шт.

48

ST561

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

BEARING, ball, countershaft, front

1шт.

49

358852R1

WASHER

LOCK, countershaft front bearing nut

1шт.

50

358853R1

BEARING LOCK NUT

countershaft front bearing

1шт.

51

358848R1

SPACER, countershaft front bearing (see note A and B)

1шт.

52

358850R1

GASKET

countershaft front bearing cage (see note A and B)

1шт.

53

358851R1

CAP, countershaft front bearing (see note A and B)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant (for all weather use) (gallon can)

1шт.

Выбрано товаров: 73
